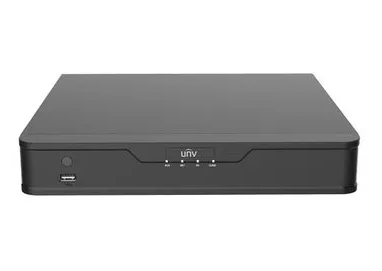

UNV 1 Hard Disks 4-Channel 5MP TVI CVI AHD H.265 Hybrid Network Video Recorder
• Support H.265/H.264 video formats
• Support TVI,AHD, CVI,CVBS, IP cameras with adaptive access
• 4-channel BNC input
• Support 1-ch HDMI output, 1-ch VGA output at up to 1920*1080
• Long transmission distance over coax cable
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
This NVR is designed to work with TVI, CVI, AHD, and IP cameras, providing a hybrid solution for video surveillance. It supports up to 4 camera channels and has one hard disk drive bay for local storage.
The NVR supports H.265 and H.264 video compression formats, which provide efficient storage and playback of video footage. It can record at up to 5MP resolution for TVI, CVI, and AHD cameras, and up to 8MP resolution for IP cameras. This allows for high-quality video capture with a variety of camera types.
The NVR also comes with various advanced features such as intelligent video analysis, which includes motion detection, tampering detection, and video quality diagnosis. It also supports third-party IP cameras that are compliant with ONVIF Profile S and Profile G, allowing for greater flexibility in camera selection.
The NVR has multiple video outputs, including HDMI and VGA, allowing for video display on multiple monitors. It also has two-way audio support, which allows for communication between the NVR and the connected IP cameras or other audio-enabled devices.
The NVR has an Ethernet interface for network connectivity, and it supports various network protocols such as HTTP, TCP/IP, DNS, and DHCP. It can be managed and controlled remotely through web browsers or mobile applications, providing convenient access to live video streams and recorded footage from anywhere with an internet connection.
In summary, the UNV 1 Hard Disks 4-Channel 5MP TVI CVI AHD H.265 Hybrid Network Video Recorder is a hybrid NVR that provides advanced features for video surveillance. It supports up to 4 camera channels and has one hard disk drive bay for local storage. The multiple video outputs and two-way audio support provide greater flexibility in video display and communication. The remote access and management capabilities also make it a convenient option for surveillance systems that require remote monitoring.
| Model | NVR301-04Q | |
| Video/Audio Input | ||
| Analog Video Input | 4-ch, BNC | |
| IP Video Input | 2-ch(only IP up to 6ch),each channel up to 4K | |
| Supported Analog Camera Types | Support AHD input: 8MP@15fps (channel1) 5MP@20fps 4MP@30fps 3MP@30fps (channel1) 1080P@30fps 720P@60fps Support TVI input: 8MP@15fps(channel1) 5MP@20fps 4MP@30fps 3MP@20fps (channel1) 1080P@30fps 720P@60fps Support CVI input: 8MP@15fps(channel1) 5MP@20fps 4MP@30fps 1080P@30fps 720P@30fps Support CVBS input | |
| Audio Input | 1-ch, RCA | |
| Two-way Audio | 1-ch, RCA | |
| Channel Associated Audio | 1-ch,RCA | |
| Network | ||
| Incoming Bandwidth | 40Mbps | |
| Outgoing Bandwidth | 60Mbps | |
| Remote Users | 128 | |
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE | |
| Video/Audio Output | ||
| CVBS Output | 1-ch, BNC | |
| VGA Output | 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz | |
| HDMI Output | 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz | |
| Audio Output | 1-ch, RCA | |
| Synchronous Playback | 4-ch | |
| Encoding | ||
| Recording Resolution | 8MP Lite/5MP Lite/4MP Lite /3MP/1080P/960P/720P/960H/4CIF/CIF | |
| Recording Frame Rate | Main stream: 8MP Lite@8fps(channel1） 5MPLite@12fps 4MP Lite@15fps 3MP@15fps(channel1) 2MP@15fps 720P@30fps Sub stream: D1@30fps(Max) | |
| Hard Disk | ||
| SATA | 1 SATA interfaces | |
| Capacity | Up to 10TB for each HDD | |
| External Interface | ||
| Network Interface | 1RJ45 10M/100M self-adaptive Ethernet Interface | |
| USB Interface | Rear panel：2 x USB2.0 | |
| Serial Interface | 1 x RS485 | |
| General | ||
| Power Supply | 12V DC Power Consumption: ≤ 8 W( without HDD ) | |
| Working Environment | -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing) | |
| Dimensions(W×D×H) | 260mm ×240mm× 46mm (10.2″ × 9.4″×1.8″) | |
| Weight ( without HDD ) | ≤1.1 Kg ( 4.19lb ) | |
