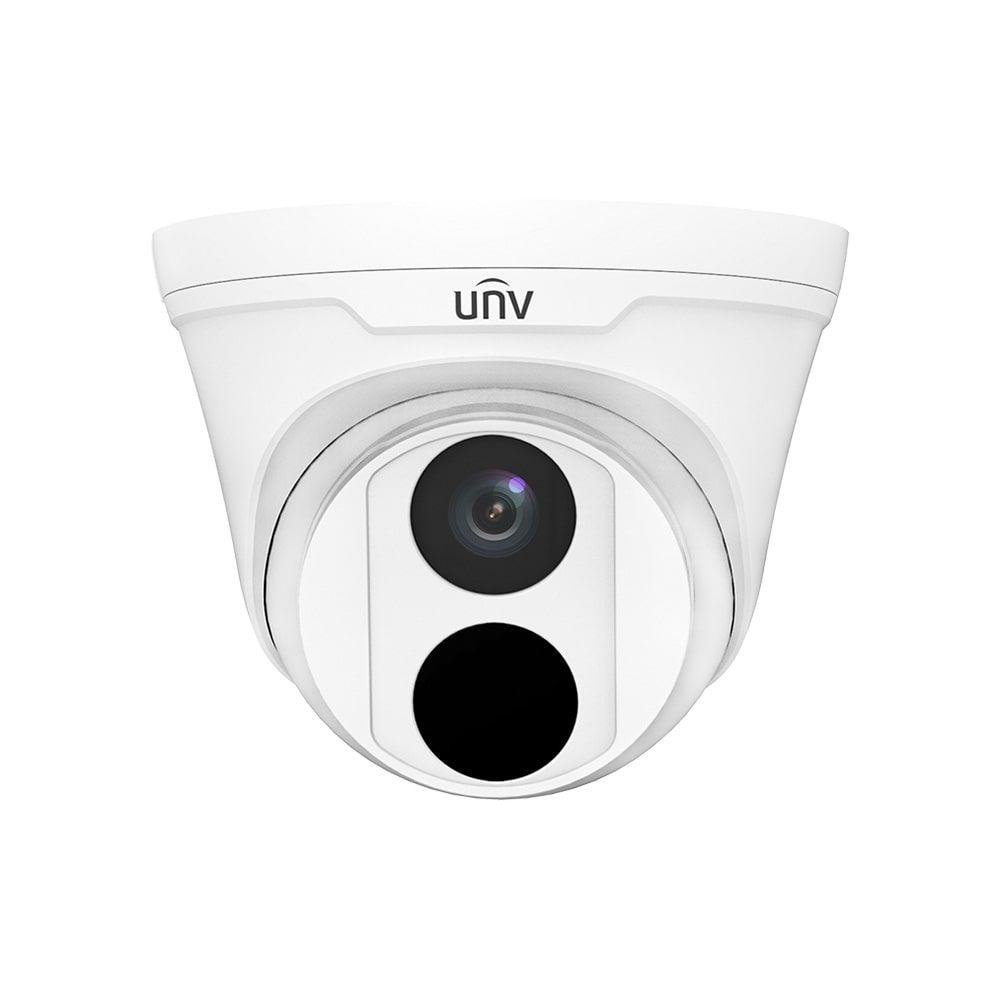

UNV 5MP 4.0mm Lens Fixed Dome Network Camera UN-IPC3615LR3PF40D

Uniview
SKU: WECIPC3615LR3PF40D

Features



  • Day/night functionality
  • A

    Features

    • Day/night functionality
    • Smart IR, up to 30 m (98 ft) IR distance
    • 3D DNR (Digital Noise Reduction)
    • Ultra 265,H.265,H.264,MJPEG
    • ROI (Region of Interest)
    • ONVIF Conformance
    • Structure Support PoE power supply
    • Wide temperature range: -30°C to 60°C (-22°F to 140°F)
    • Wide voltage range of ±25%
    • IP67
    • 3-Axis
    More Information
    Image Sensor1/2.7", 5Megapixel, progressive scan, CMOS
    Image Size2592 x 1944
    Electronic ShutterAuto/Manual, 1~1/100000 s
    Minimum Illumination

    Color: 0.01 Lux (F2.0, AGC ON),
    B/W: 0 Lux with IR on

    Focal Length4.0mm
    DORI Distance
    LensDetect(m)Observe(m)Recognize(m)Identify(m)
    4.0mm6024126
    IR DistanceUp to 30m (98 ft) IR range
    S/N Ratio> 52dB
    Angle of ViewH: 105.3° / V: 69.5° / O: 136.9°
    Angle Adjustment

    Pan: 0°~360°, Tilt: 0°~75°

    Wide Dynamic RangeDWDR
    OSDYes
    Video CompressionUltra 265,H.265, H.264, MJPEG
    Video Resolution

    5MP / 4MP / 3MP / 2MP / 1MP

    Video Frame Rate

    Main Stream: 5MP (2592*1944): Max. 15 fps;
    Sub Stream:720P (1280*720): Max.20 fps;

    9:16 Corridor ModeSupported
    Day / NightIR-cut filter with auto switch (ICR)
    BLC ModeSupported
    HLCSupported
    ROIUp to 2 areas
    Digital Noise Reduction2D / 3D DNR
    Motion DetectionUp to 4 areas
    Privacy MaskingUp to 8 areas
    Statistical AnalysisPeople counting
    General FunctionWatermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
    Ethernet10M/100M Base-TX Ethernet
    Network ProtocolIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS
    Network InteroperabilityONVIF, API
    Web ViewerIE web browser
    MobileiPhone, Android
    Power Supply12 V DC±25% / PoE (IEEE802.3 af)
    Power ConsumptionMax 4W
    Operating Temperature-30°C ~ +60°C (-22°F ~ 140°F), Humidity :10%~90% RH(non-condensing)
    Storage Temperature-30°C ~ +60°C (-22°F ~ 140°F), Humidity :10%~90% RH(non-condensing)
    Ingress ProtectionIP67
    Dimensions118x 96 mm (4.6” x 3.8”)
    Weight0.35kg (0.77lb)
    tance
  • 2D/3D DNR (Digital Noise Reduction)
  • Ultra 265,H.265,H.264,MJPEG
  • ROI (Region of Interest)

Intrusion Detection

  • ONVIF Conformance
  • Support PoE power supply
  • Wide temperature range: -30°C to 60°C (-22°F to 140°F)
  • Wide voltage range of ±25%
  • IK10 vandal resistant
  • IP67
  • 2-Axis
More Information
Image Sensor1/2.7", 5Megapixel, progressive scan, CMOS
Image Size2592 x 1944
Electronic ShutterAuto/Manual, 1~1/100000 s
Minimum Illumination

Color: 0.01 Lux (F2.0, AGC ON),
B/W: 0 Lux with IR on

Focal Length2.8mm
DORI Distance
LensDetect(m)Observe(m)Recognize(m)Identify(m)
2.8mm4216.88.44.2
IR DistanceUp to 30m (98 ft) IR range
S/N Ratio> 52dB
Angle of ViewH: 105.3° / V: 69.5° / O: 136.9°
Angle Adjustment

Pan: 0°~360°, Tilt: 0°~75°

Wide Dynamic RangeDWDR
OSDYes
Video CompressionUltra 265,H.265, H.264, MJPEG
Video Resolution

5MP / 4MP / 3MP / 2MP / 1MP

Video Frame Rate

Main Stream: 5MP (2592*1944): Max. 15 fps;
Sub Stream:720P (1280*720): Max.20 fps;

9:16 Corridor ModeSupported
Day / NightIR-cut filter with auto switch (ICR)
BLC ModeSupported
HLCSupported
ROIUp to 2 areas
Digital Noise Reduction2D / 3D DNR
Motion DetectionUp to 4 areas
Privacy MaskingUp to 8 areas
Statistical AnalysisPeople counting
General FunctionWatermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Ethernet10M/100M Base-TX Ethernet
Network ProtocolIPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP,RTP,RTSP,RTCP,DNS,DDNS,NTP,FTP,UPnP,HTTP,HTTPS,SMTP, SSL
Network InteroperabilityONVIF, API
Web ViewerIE web browser
MobileiPhone, Android
Power Supply12 V DC±25% / PoE (IEEE802.3 af)
Power ConsumptionMax 4W
Operating Temperature-30°C ~ +60°C (-22°F ~ 140°F), Humidity :10%~90% RH(non-condensing)
Storage Temperature-30°C ~ +60°C (-22°F ~ 140°F), Humidity :10%~90% RH(non-condensing)
Ingress ProtectionIP67, IK10
Dimensions109 x 81mm ( 4.3” x 3.2”)
Weight0.35kg (0.77lb)





    • 44% less
    Market price:$375.30 save $166.80
  • $208.50

OR

Features

  • Day/night functionality
  • Smart IR, up to 30 m (98 ft) IR distance
  • 3D DNR (Digital Noise Reduction)
  • Ultra 265,H.265,H.264,MJPEG
  • ROI (Region of Interest)
  • ONVIF Conformance
  • Structure Support PoE power supply
  • Wide temperature range: -30°C to 60°C (-22°F to 140°F)
  • Wide voltage range of ±25%
  • IP67
  • 3-Axis
More Information
Image Sensor1/2.7", 5Megapixel, progressive scan, CMOS
Image Size2592 x 1944
Electronic ShutterAuto/Manual, 1~1/100000 s
Minimum Illumination

Color: 0.01 Lux (F2.0, AGC ON),
B/W: 0 Lux with IR on

Focal Length4.0mm
DORI Distance
LensDetect(m)Observe(m)Recognize(m)Identify(m)
4.0mm6024126
IR DistanceUp to 30m (98 ft) IR range
S/N Ratio> 52dB
Angle of ViewH: 105.3° / V: 69.5° / O: 136.9°
Angle Adjustment

Pan: 0°~360°, Tilt: 0°~75°

Wide Dynamic RangeDWDR
OSDYes
Video CompressionUltra 265,H.265, H.264, MJPEG
Video Resolution

5MP / 4MP / 3MP / 2MP / 1MP

Video Frame Rate

Main Stream: 5MP (2592*1944): Max. 15 fps;
Sub Stream:720P (1280*720): Max.20 fps;

9:16 Corridor ModeSupported
Day / NightIR-cut filter with auto switch (ICR)
BLC ModeSupported
HLCSupported
ROIUp to 2 areas
Digital Noise Reduction2D / 3D DNR
Motion DetectionUp to 4 areas
Privacy MaskingUp to 8 areas
Statistical AnalysisPeople counting
General FunctionWatermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Ethernet10M/100M Base-TX Ethernet
Network ProtocolIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS
Network InteroperabilityONVIF, API
Web ViewerIE web browser
MobileiPhone, Android
Power Supply12 V DC±25% / PoE (IEEE802.3 af)
Power ConsumptionMax 4W
Operating Temperature-30°C ~ +60°C (-22°F ~ 140°F), Humidity :10%~90% RH(non-condensing)
Storage Temperature-30°C ~ +60°C (-22°F ~ 140°F), Humidity :10%~90% RH(non-condensing)
Ingress ProtectionIP67
Dimensions118x 96 mm (4.6” x 3.8”)
Weight0.35kg (0.77lb)
    • SKU
      WECIPC3615LR3PF40D
    • Weight
      5.3 lbs
  • Manufacturer
    Uniview
  • Shipping Lead Time
    Ships Same Day
