Add IMaxCamPro Camera
EVS/Add IMaxCamProCamera
Description
This guide will show how to add a IMaxCamProcamera to a EVS device
Prerequisites
- IMaxCamProcamera powered on and connected to the network and initialized
- EVS device powered on, set up and connected to the network
- Computer with network access
- IP address of EVS device
- IP address of IMaxCamPro camera
1. Log into the EVS System Manager by typing the IP in to a web browser
Enter the Username and Password and click Login

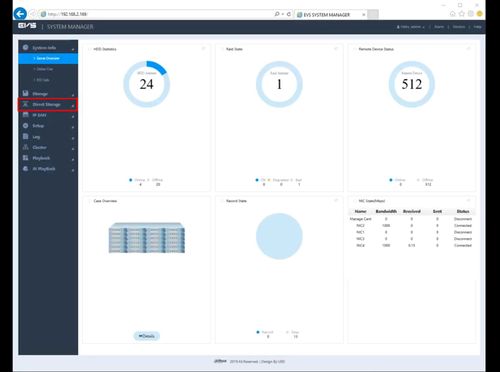

2. Click Direct Storage

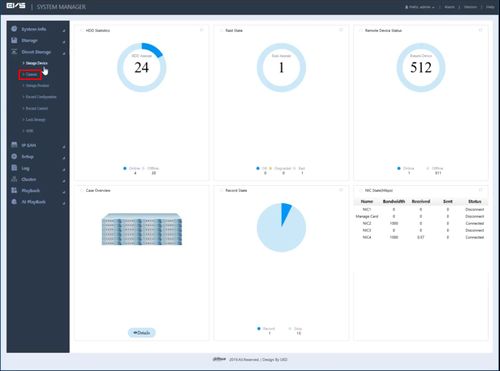

3. Click Camera

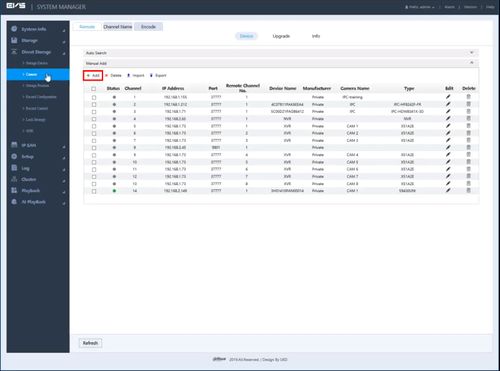

4. Click '+ Add' to add a device

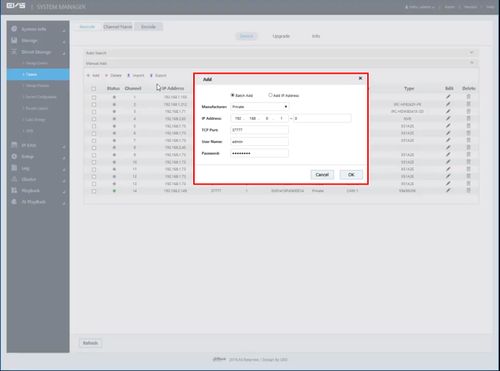

5. The Add Device window will appear

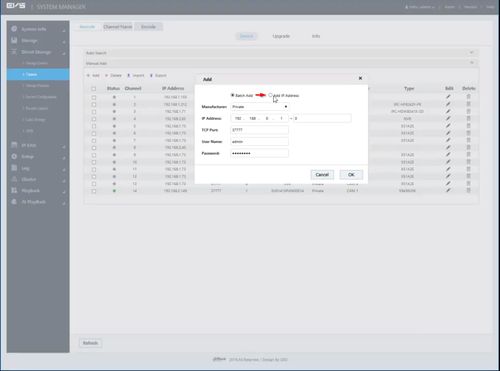

6. Select 'Add IP Address'

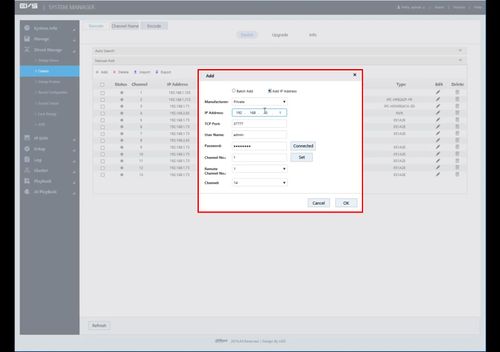

7. Enter all information for the device:
- Manufacturer - Private
- IP Address - IP address of IMaxCamPro camera
- TCP Port - TCP Port of IMaxCamPro camera(by default 37777)
- User Name - User name for IMaxCamPro camera
- Password - Password for IMaxCamPro camera
- Channel No. - Number of video channels the device has
- Remote Channel No.

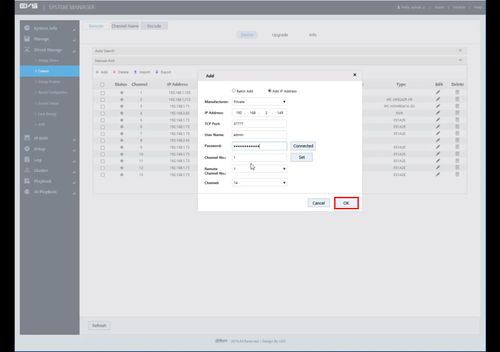

8. Once the information has been entered click OK

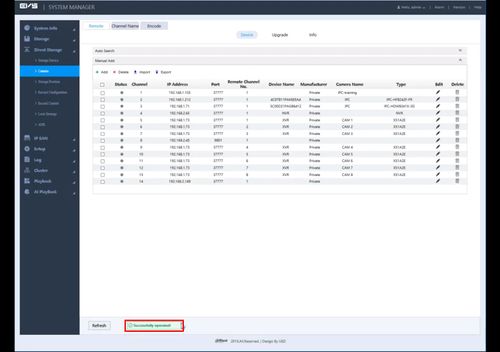

9. A system message will confirm a successful device add

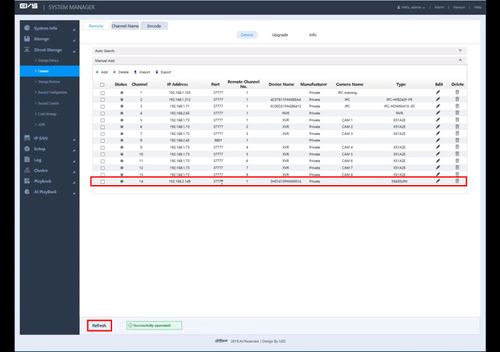

10. Click Refresh to update the list of devices
The added device will appear in the list
