Add Imaxcampro Device via IP

This article will cover how to add Imaxcampro devices via local or external IP addresses.

• Imaxcampro device already initialized
• EASY VIEWER Installed

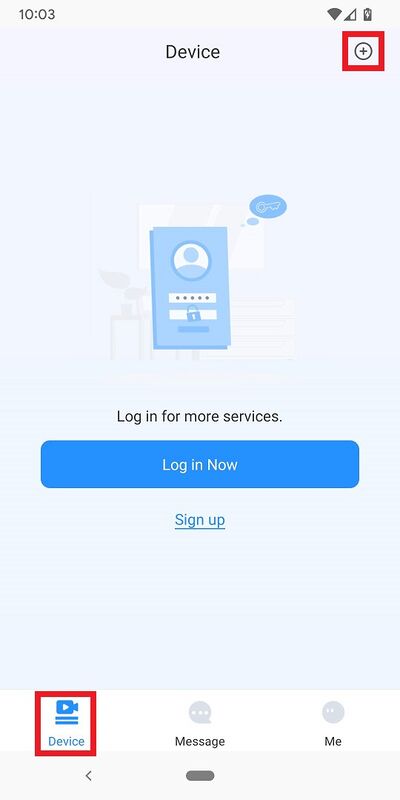

1. In the EASY VIEWER mobile app tap the + at the top of the Device screen

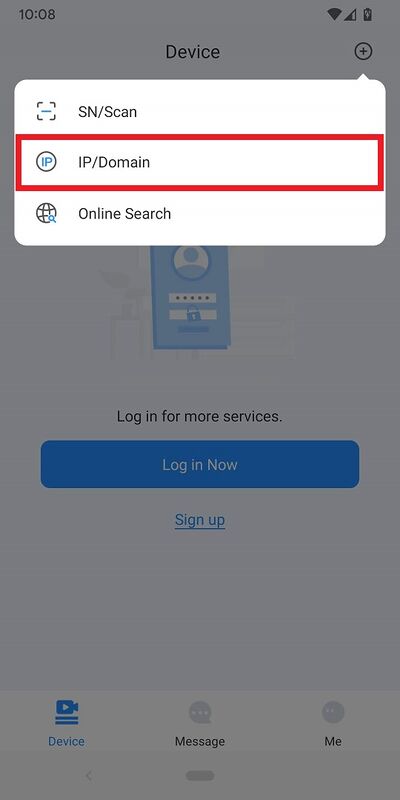

2. Tap on IP/Domain

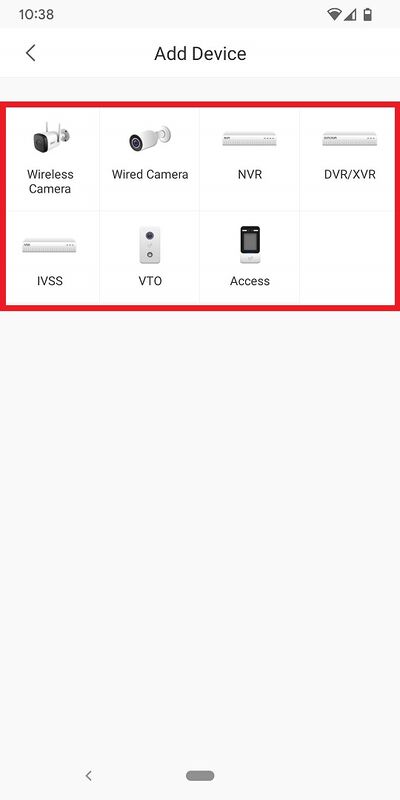

3. Tap on the type of Imaxcampro device you are adding.

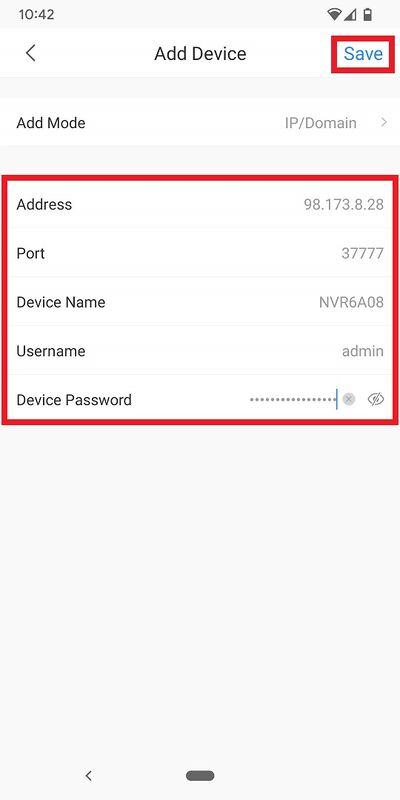

4. Input the IP address of the device in the field next to Address. (Either the internal IP address if you will be accessing this device from the same network, or the external IP address for outside the network [Please Note: Port Forwarding should already be completed for the TCP port if using an external IP address])
 Input the TCP port of the device in the field next to Port.
 Give the device a name in the field next to Device Name.
 Input the login account username in the field next to Username.
 Input the login account password in the field next to Device Password.
 Tap on Save at the top.

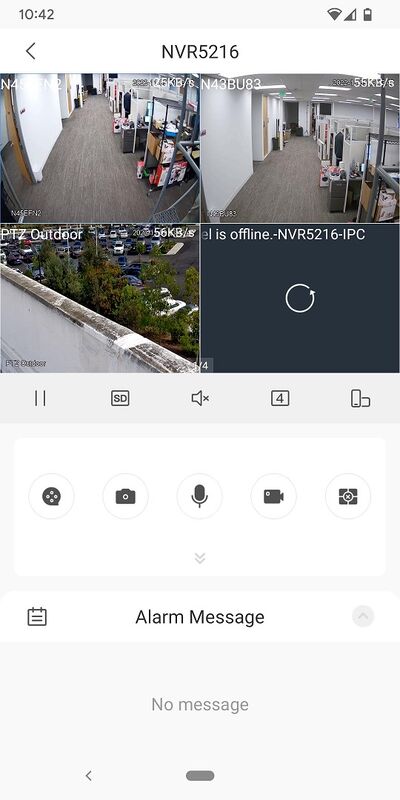

5. If the device has been successfully added, you will see the live view
