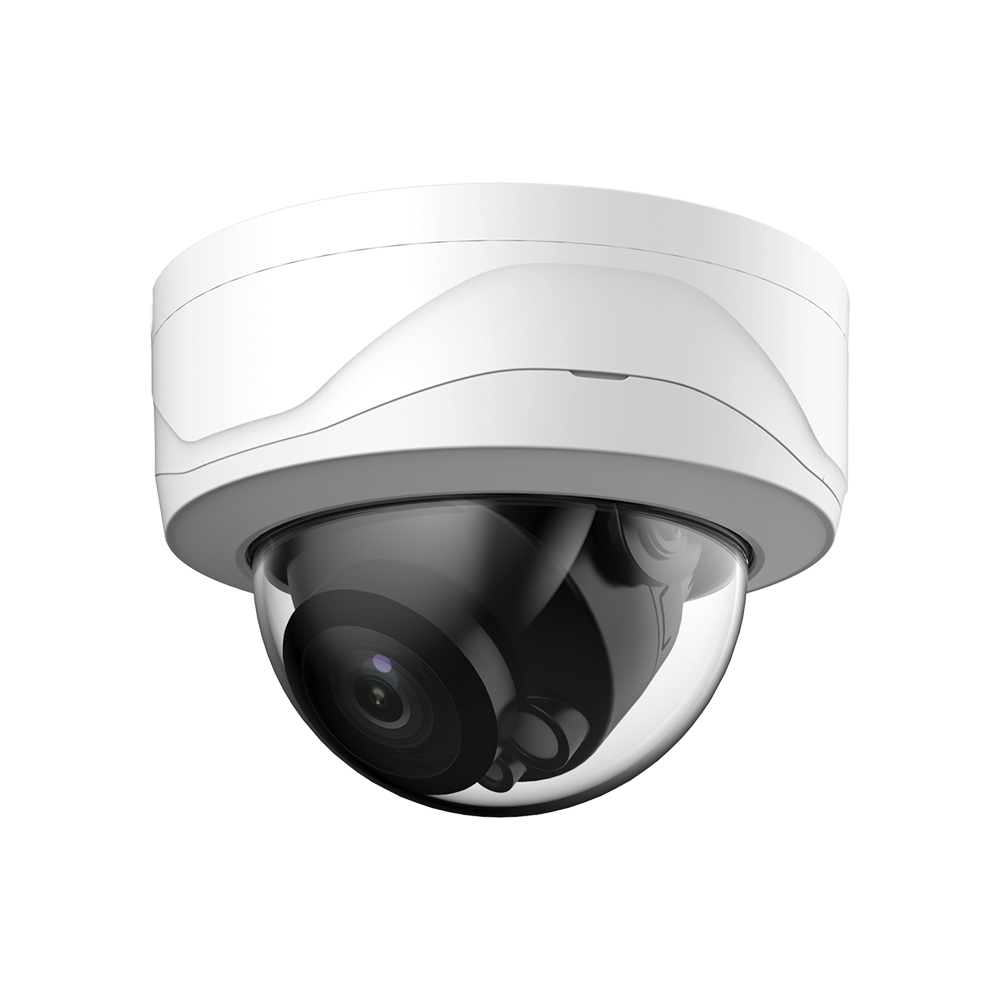

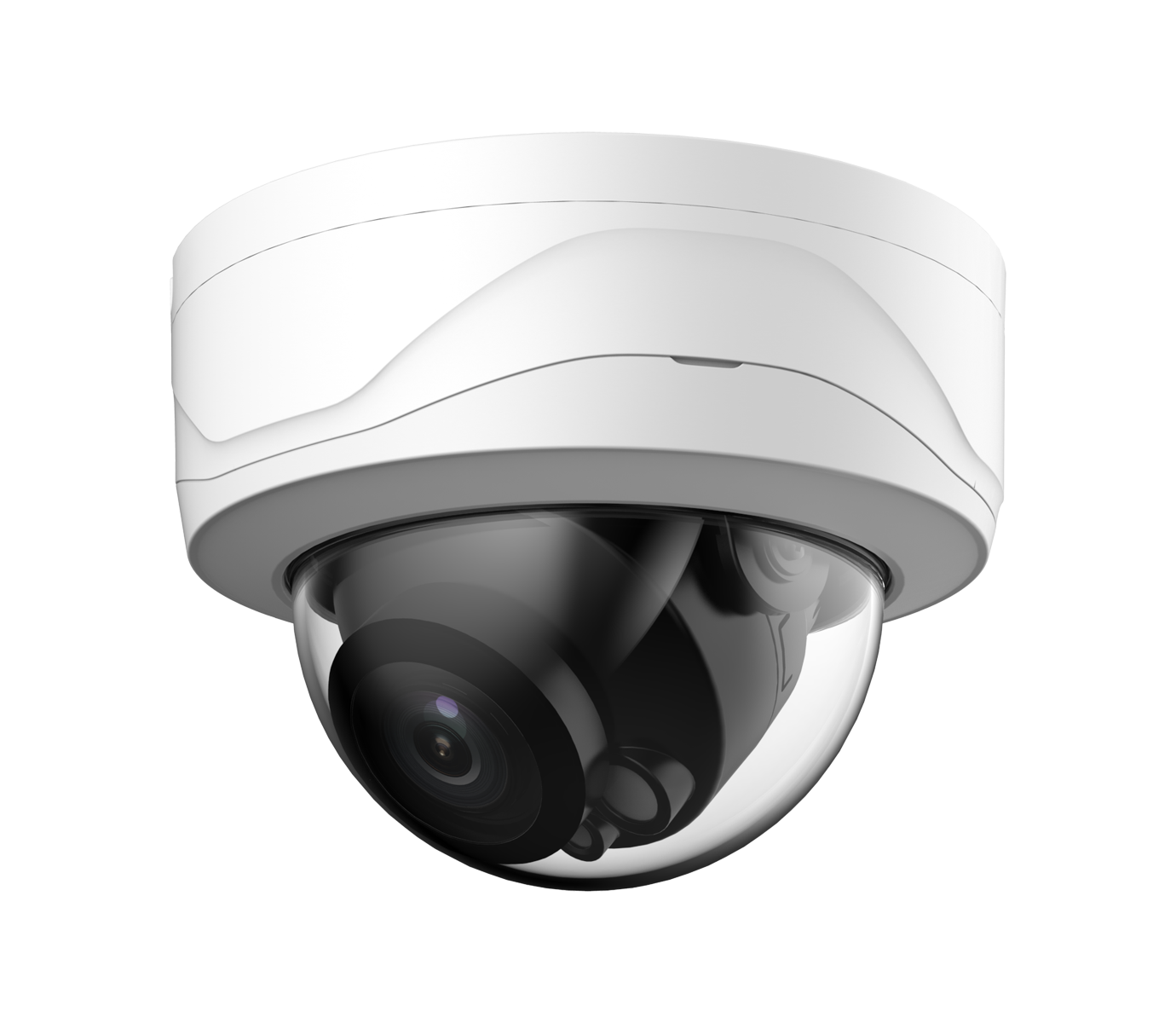

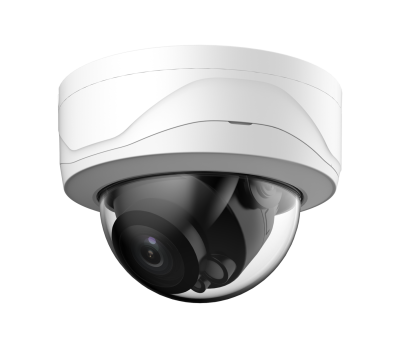

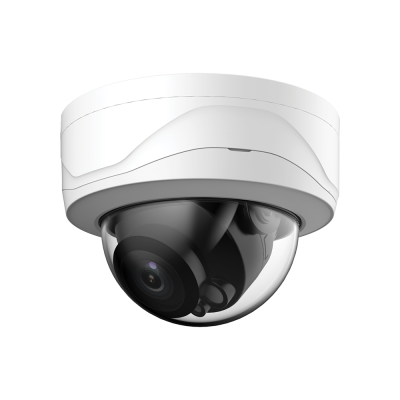

IMAXCAMPRO HNC3V281E-IRS-S2/28 8MP Lite IR Fixed-focal Dome Network Camera

iMaxCamPro
SKU: WECIHNC3V281E-IRS-S2/28

Features

  • 8MP, 1/2.7" CMOS image sensor, low illuminance, high image definition
  • Outputs max. 8MP (3840 × 2160) @15 fps, and supports 2688×1520 @25/30 fps
  • H.265 codec, high compression rate, ultra-low bit rate
  • Built-in IR LED, Max IR distance: 30 m
  • ROI, SMART H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
  • Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
  • Intelligent detection: Intrusion, tripwire
  • Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection
  • Supports max. 256 GB Micro SD card
  • 12V DC/PoE power support
  • IP67, IK10 protection
    • 35% less
    Market price:$417.00 save $147.00
  • $270.00

OR

Features

  • 8MP, 1/2.7" CMOS image sensor, low illuminance, high image definition
  • Outputs max. 8MP (3840 × 2160) @15 fps, and supports 2688×1520 @25/30 fps
  • H.265 codec, high compression rate, ultra-low bit rate
  • Built-in IR LED, Max IR distance: 30 m
  • ROI, SMART H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
  • Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
  • Intelligent detection: Intrusion, tripwire
  • Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection
  • Supports max. 256 GB Micro SD card
  • 12V DC/PoE power support
  • IP67, IK10 protection
More Information
Image Sensor1/2.7” 8Megapixel progressive CMOS
Image Size3840 (H) × 2160 (V)
RAM/ROM128 MB/256 MB
Electronic ShutterAuto/Manual 1/3 s–1/100,000 s
Minimum Illumination

0.009 Lux@F2.0

IR LEDs3
Smart IRSupport
IR Distance30 m (98.43 ft)
IR On/Off ControlAuto/Manual
Focal Length2.8 mm
Angle of ViewPan 105° × Tilt 56° × Diagonal 125°
Max. ApertureF2.0
Close Focus Distance1.0 m (3.3 ft)
DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8mm

74.7 m
(245.1 ft)

29.9 m
(98.1 ft)

14.9 m
(48.9 ft)

7.5 m
(24.6 ft)

Pan / Tilt / RotationPan: 0°–355° Tilt: 0°–65° Rotation: 0°–355°
Video CompressionH.265; H.264; H.264B; MJPEG
Streaming Capability2 Streams
Video Resolution

3840 × 2160 (3840 × 2160); 3072 × 2048 (3072 × 2048); 3072 ×1728 (3072 × 1728); 2592 × 1944 (2592 × 1944); 2688 × 1520 (2688 × 1520); 3M (2048 × 1536); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Video Frame Rate

Main stream:
3840 × 2160 (1 fps–15 fps)
2688 × 1520 (1 fps–25/30 fps)
Sub stream:
704 × 576 (1 fps–25 fps)
704 × 480 (1 fps–30 fps)



Video Bitrate

H.264: 32 Kbps–8192 Kbps
H.265: 12 Kbps–8192 Kbps

Day / NightAuto(ICR)/Color/B/W
Wide Dynamic Range120 dB
BLC ModeYes
HLCYes
White BalanceAuto/natural/street lamp/outdoor/manual/regional custom
Gain ControlAuto/Manual
Digital Noise Reduction3D DNR
Motion DetectionOFF/ON (4 areas, rectangular)
Region of InterestYes (4 areas)
Flip0°/90°/180°/270°
MirrorYes
Privacy Masking4 areas
General FunctionWatermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
VCA DetectionTripwire; intrusion
EthernetRJ-45 (10/100Base-T)
Network ProtocolIPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; Bonjour
Network InteroperabilityONVIF(Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec
Network Max. Users20 Users
StorageDahua Cloud; FTP; SFTP; NAS
Storage CardMicro SD card (max. 256 GB)
Web ViewerIE, Chrome, Firefox
Management SoftwareSmart PSS; DSS; DMSS
MobileIOS, Android
CertificationsCE-LVD: EN60950-1
CE-EMC: Electromagnetic Compatibility Directive
2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Power Supply12V DC/PoE (802.3af)
Power Consumption< 6.5W
Operating Temperature–40°C to +60°C (–40°F to +140°F)/less than ≤ 95% RH
Storage Temperature–40°C to +60°C (–40°F to +140°F)/less than ≤ 95% RH
Ingress ProtectionIP67; IK10
Dimensions81 mm × Φ109.9 mm (3.19" × Φ4.33")
WeightNet Weight 0.350 kg (0.77 lb) Gross Weight 0.491 kg (1.08 lb)



Download Technical Datasheet

    • SKU
      WECIHNC3V281E-IRS-S2/28
    • Weight
      1.08 lbs
    • Dimensions (L x W x H)
      3.19 x 4.33 x 0 inches
  • Manufacturer
    iMaxCamPro
  • Shipping Lead Time
    Ships Same Day
