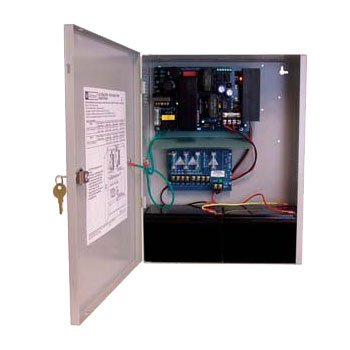

AL1024ULXPD4CB Altronix Multi-Output Power Supply/Charger 4 PTC Protected Outputs 24VDC @ 10 Amp
SKU: AL1024ULXPD4CBAltronix offers a complete line of Safety and Security, Fire, CCTV, Access, Nurse Call, and Automation products and The Altronix Model has 24VDC output and 10 amp of continuous supply current for Access Control applications with 8 amp of continuous supply current, 10 amp during alarm for Fire Alarm applications. The Four (4) fuse protected outputs. The Fuses are rated @ 3.5 amp and 115VAC 60Hz, 4.4 amp input. The Filtered and electronically regulated outputs. Short circuit and thermal overload protection. Built-in charger for sealed lead acid or gel type battery backup. The Maximum charge current .7 amp. Zero voltage drop upon transfer to battery backup. The AC input and DC output LED indicators and AC fail supervision (form "C" contact rated @ 1 amp 28VDC) Low battery and battery presence supervision (form "C" contact rated @ 1 amp 28VDC). The Company is providing Lifetime Warranty. The Accommodates up to two (2) 12VDC/12AH batteries. Dimensions: 15.5”H x 12”W x 4.5”D and 1/2" and 3/4" combination knockouts. Altronix offers OEM design and manufacturing services to create custom electronics for commercial and industrial applications and The power products and peripherals, feature the quality, reliability and unparalleled customer support that have been associated with Altronix for over 30 years
