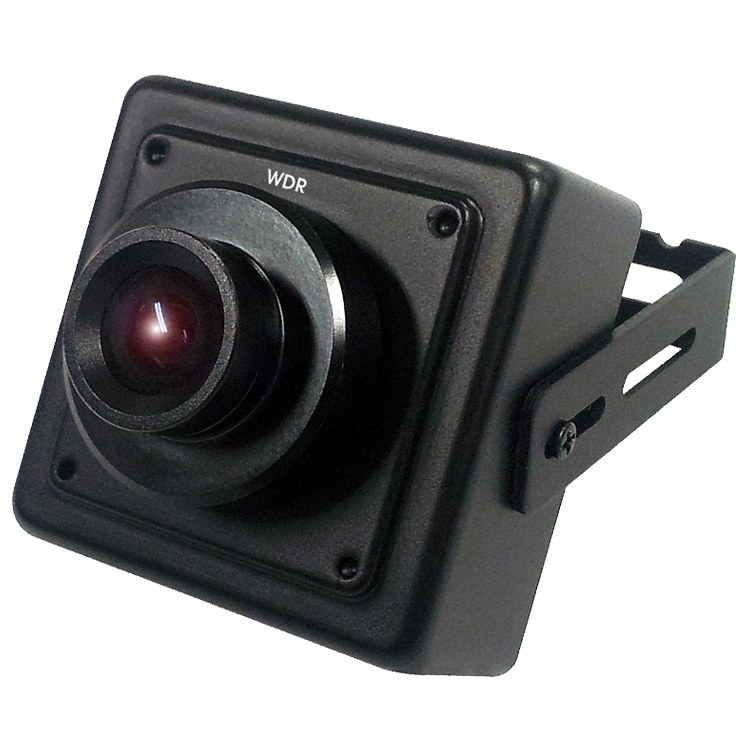

750TVL Miniature Square Camera
SKU: KPC-EW38NUB
- 1/3” 960H SONY Double Scan Super HAD CCD ll
- 750TVL Horizontal Resolution
- Board: 3.6, 4.3, 6, 8 mm Lens Pinhole: 3.7 (P1), 3.7 (P3), 4.3 mm (P4)
- Fixed Board or Pinhole Lens
- Digital Day & Night
- Size: 1.5 x 1.5 inch (38 x 38 mm)
- Min. Illumination of 0.1Lux (30 IRE@F2.0, AGC: 36dB), 0.000001 Lux (DSS: x256)
- 3D DNR / BLC / WDR / OSD
- DC 12V Power
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
- Camera packaging contents:
- 1/3” 960H SONY Double Scan Super HAD CCD ll
- 750TVL Horizontal Resolution
- Board: 3.6, 4.3, 6, 8 mm Lens Pinhole: 3.7 (P1), 3.7 (P3), 4.3 mm (P4)
- Fixed Board or Pinhole Lens
- Digital Day & Night
- Size: 1.5 x 1.5 inch (38 x 38 mm)
- Min. Illumination of 0.1Lux (30 IRE@F2.0, AGC: 36dB), 0.000001 Lux (DSS: x256)
- 3D DNR / BLC / WDR / OSD
- DC 12V Power
| Signal System | NTSC |
| Image Sensor | 1/3” 960H SONY Double Scan Super HAD CCD ll |
| Scanning System | 2:1 Interlace |
| Horizontal Resolution | 750TV Lines |
| Scanning Frequency (H) | 15.734 KHz |
| Scanning Frequency (V) | 59.94 Hz |
| Total Pixels (H x V) | 1028 x 508 |
| Effective Pixels (H x V) | 976 x 494 |
| Synchronization | Internal |
| Lens | Board: 3.6, 4.3, 6, 8 mm Lens Pinhole: 3.7 (P1), 3.7 (P3), 4.3 mm (P4) Lens |
| Lens Type | Fixed Board or Pinhole Lens |
| S/N | More than 50 dB (AGC: Off) |
| Gamma | r = 0.45 |
| Min. Illumination | 0.1 Lux (30 IRE@F2.0, AGC: 36dB), 0.000001 Lux (DSS: x256) |
| Shutter Speed | 1/60 ~ 1/100,000 sec |
| Day & Night | Digital Day & Night |
| Day & Night Function | Auto, Color, B/W |
| Video Output Level | 1Vp-p Composite (75 Ω) |
| On-Screen Display (OSD) | Built-in (Joystick) |
| BLC | On / Off (Level adjustment, Area selection) |
| DNR | 3D DNR |
| White Balance | ATW, Push, User1, User2, Anti CR, Manual, Push-lock |
| Privacy Masking | 15 Zones (Area adjustment) |
| Mirror | Image reverse (Normal/Flip) |
| Motion Detection | 4 Zones (Level adjustable, Area adjustment) |
| WDR | On / Off (Level adjustable) |
| Digital Zoom Ratio | 3x |
| Digital Slow Shutter | Off, 2 ~ 256 Field |
| Other Function | Brightness, Contrast, Sharpness, HUE, Gain |
| Language Option | English, Japanese, German, French, Russian, Portuguese, Spanish, Chinese |
| Operating Temperature | 14 °F ~ 122 °F (-10 °C ~ 50 °C) |
| Storage Temperature | -4 °F ~ 140 °F (-20 °C ~ 60 °C) |
| Humidity | Less than 80% RH |
| Power Supply | DC 12V (±10%) Max. 140mA |
| External Control | RS-485 |
| Dimension | 1.5 x 1.5 inch (38 x 38 mm) |
| Weight | 0.2 lbs (80 g) |
