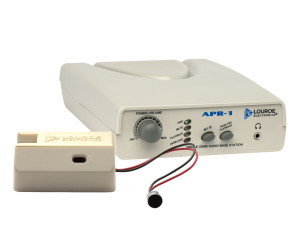

Louroe ASK-4 #101-C Audio Monitoring Kit
APR-1:
Line level audio output (RCA) to DVR
Base station with 3” speaker for monitoring live audio and playback from a DVR
Durable, high impact ABS housing
3.5 mm headphone jack for private listening
Verifact® C:
Omni-directional, within 30′ diameter circle
6″ long microphone element assembly
High impact anti static ABS microphone housing
Can be placed up to 1000′ away from the base station
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
APR-1:
Line level audio output (RCA) to DVR
Base station with 3” speaker for monitoring live audio and playback from a DVR
Durable, high impact ABS housing
3.5 mm headphone jack for private listening
Verifact® C:
Omni-directional, within 30′ diameter circle
6″ long microphone element assembly
High impact anti static ABS microphone housing
Can be placed up to 1000′ away from the base station
The ASK-4® #101C is a single zone audio monitoring kit compatible with most recorders. The kit is designed for audio monitoring and for interfacing with a DVR. It is ideal for Live Monitoring Systems. The APR-1 desktop base unit has a speaker for monitoring live audio and playback. It contains a mute switch to mute both live and playback audio. The Verifact® C microphone is designed for special applications. Dimensions:
Microphone- 2.675″ L x 2.125″ W x 1.0675″ H
Base Station- 8.25” L x 5.75” W x 1.375” H KIT CONTENTS
The ASK-4 #101C is designed for numerous applications such as:
- detention centers
- medical treatment rooms
- cash cages
SPECIFICATIONS (Microphone - Model C)
SPECIFICATIONS (Base Station - APR-1)
Line level audio output (RCA) to DVR
Base station with 3” speaker for monitoring live audio and playback from a DVR
Durable, high impact ABS housing
3.5 mm headphone jack for private listening
Verifact® C:
Omni-directional, within 30′ diameter circle
6″ long microphone element assembly
High impact anti static ABS microphone housing
Can be placed up to 1000′ away from the base station
The ASK-4® #101C is a single zone audio monitoring kit compatible with most recorders. The kit is designed for audio monitoring and for interfacing with a DVR. It is ideal for Live Monitoring Systems. The APR-1 desktop base unit has a speaker for monitoring live audio and playback. It contains a mute switch to mute both live and playback audio. The Verifact® C microphone is designed for special applications. Dimensions:
Microphone- 2.675″ L x 2.125″ W x 1.0675″ H
Base Station- 8.25” L x 5.75” W x 1.375” H KIT CONTENTS
- VERIFACT C Electret Condenser Microphone
- Model APR-1 Audio Base Station
- Model AD-1 12Vdc power supply
- Dual RCA cables for connection to DVR/VCR
The ASK-4 #101C is designed for numerous applications such as:
- Convenience Stores
- Fast Food Restaurants
- Booking Rooms
- Interrogation Rooms
- Car dealership sales contract rooms
- Child Abuse Interviews
- Sleep Disorder Centers
- Speech Therapy Labs
- Cashier Booths
- Casino use in:
- detention centers
- medical treatment rooms
- cash cages
SPECIFICATIONS (Microphone - Model C)
| Type | Electret Condenser |
| Output | Line Level (0 dBV, 600Ω @ 1 kHz) |
| Frequency response | 50 Hz to 15 kHz ± 1 dB |
| Current drain | 10 mA |
| Supply voltage | 12Vdc |
| Dimensions (face plate) | 2 5/8”L x 2 1/8”W x 1 1/16”H |
| Weight | 1.5 oz |
| Monitor output power | 1W@8W |
| Audio output impedance | 600W @ 1kHz |
| Audio input impedance | 10KW |
| Freq. response | 100 Hz to 10 kHz |
| Headphone impedance | 8 to 600W |
| Power supply | 12 Vdc, 500 mA |
| Dimensions | 8 ¼"L x 5 ¾”W x 1 3/8" H |
| Weight | 1 lb 6 oz |
| Shipping Weight of kit | 3 lbs |
