Louroe ASK-4 # 350 Audio Monitoring Kit
IF-PX:
Single zone Power over Ethernet (PoE) extractor
Line level audio in & out (3.5mm jacks)
Adjustable gain potentiometer
Low-profile for ease of installation
Durable, powder coated extruded aluminum housing
Verifact® A:
Omni-directional, within 30′ diameter circle
Durable, high impact ABS housing
Can be placed up to 1000′ away from the base station
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
- Provides power to external microphone
- Supports both Mode A and Mode B power options. Automatic detection of both modes.
- +12Vdc output to power external equipments such as Analog cameras, Encoders and Non-POE IP cameras.
- Variable gain audio output
- 3.5mm stereo audio input and output for IP camera
- Power LED indicator
- Overload and short circuit protection
- Compatible with all Louroe Microphones and AOP-SP’s
Single zone Power over Ethernet (PoE) extractor
Line level audio in & out (3.5mm jacks)
Adjustable gain potentiometer
Low-profile for ease of installation
Durable, powder coated extruded aluminum housing
Verifact® A:
Omni-directional, within 30′ diameter circle
Durable, high impact ABS housing
Can be placed up to 1000′ away from the base station

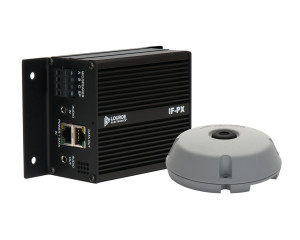

The ASK-4® #350 is a single zone audio monitoring system for direct connection to an IP camera. This kit comes with an IF-PX which is a PoE inline interface and a Verifact® A Microphone. The IF-PX is an audio-oriented, single zone power over Ethernet extractor that extracts power from an ethernet connection to power Louroe’s one-way or two-way audio solutions.
The PoE Extractor interfaces with Louroe speakerphones, microphones and other external devices that require a 12 Vdc supply such as system accessories and non PoE cameras. The IF-PX also permits audio and video equipment to be powered by a single run of CAT5, CAT5e or CAT6 cable. The IF-PX enhances the functionality of audio security systems by eliminating the need for a power supply. It also provides seamless installation with 15W PoE (802.3af) standards and easy integration with IP cameras. Ask-4® #350 is a single zone audio monitoring system for direct connection to an IP camera. This kit comes with an IF-PX which is a POE inline interface and a Verifact A Microphone. The IF-PX extracts power from an Ethernet line to supply power to remote microphones, Speaker/Microphones or other 12V devices. It has a terminal block to connect to the microphones (one-way audio) and speaker/microphones (two-way audio). The 3.5mm stereo audio output and input jacks are for direct connection to the audio inputs and outputs of an IP Camera. This unit also offers volume control for the audio output. Supports both Mode A and Mode B power options of IEEE802.3af
The Verifact A is an omni-directional, low impedance, electret condenser microphone with built-in preamp for producing line level audio. It is housed in a high impact ABS dome designed for ceiling or wall mounting. Normal pick-up pattern is approximately 15’ from the microphone location, all direction or within 30’ diameter circle
Includes
" 1 3.5mm Stereo Patch Cables Dimensions:
Microphone- 4″ Diag. x 1.5″ H
PoE Extractor- 6” L x 3.5” W x 2.125” H APPLICATIONS
The ASK-4® #350 can be used in the following applications:
- Adding audio to an IP Camera without the need of external power supply
- Active splitter that separates power and data to NonPOE IP cameras and encoders.
- Extracts power from Ethernet to power external microphone and speaker/microphone units
- Has Local Auxiliary DC input to provide power to camera and encoder
- Can be used to supply power to external non-POE equipments from POE Cat5.
| Ethernet Connectors | RJ45 CAT 5 Input and Output Jacks |
| Voltage Input | 36V - 57V |
| DC Output | 12Vdc, 800mA |
| Optional Power Supply | 12Vdc, 2A, Ext. Power Supply (Not Supplied) |
| Connectors | RJ-45, DC Jack, Terminal Block for Mic/Speaker 3.5mm Stereo Jacks for Audio IN/OUT |
| Audio Output/Input | Line level |
| Audio Output Gain | up to +15dB |
| Operating Temperature | -20 to +65ºC |
| Dimensions | 6”L x 3 1/2”W x 2 1/8”H |
| Weight | 13oz. |
| Type | Electret Condenser |
| Output | Line Level (0 dB 600W @ 1 kHZ) |
| Line Level (0 dB 600W @ 1 kHZ) | 50 Hz to 15 kHz ± 1 dB |
| Current drain | 10 mA |
| Supply voltage | 12Vdc |
| Dimensions | 4"Dia x 1 ½"H |
| Weight | 3.5 oz |
| Shipping Weight of kit | 3 lbs |
