Louroe LE-025 ASK-4 Audio Monitoring Kit
AP-1TB:
Desktop base station with built-in microphone and speaker
Line Level input/output (RCA jacks)to DVR for recording and playback
Volume control for both listen and talkback
TLM-W:
Microphone and speaker mounted within ABS enclosure
Omni-directional microphone, within 30′ diameter
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
- Built-in 3 speaker for monitoring audio.
- Built-in amplifier for playback from DVR/VCR.
- Provides two-way listen/talkback using Louroe +Speaker/Microphone.
- Built-in microphone for talkback to remote +speaker.
- 3.5 mm headphone jack for private monitoring.
- Can be desktop or rack mounted
- Mute function for muting remote station
- Illuminated zone switches
- Remote TLI-W has ABS plastic with 2 1/2” 7W speaker and microphone
Desktop base station with built-in microphone and speaker
Line Level input/output (RCA jacks)to DVR for recording and playback
Volume control for both listen and talkback
TLM-W:
Microphone and speaker mounted within ABS enclosure
Omni-directional microphone, within 30′ diameter

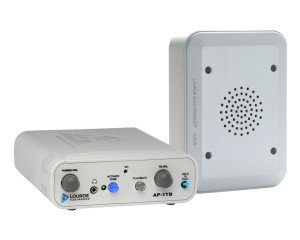

The ASK-4® #501 is a single zone audio monitoring system for two-way audio. The TLM-W remote unit contains a Verifact® line level microphone and a speaker, all within one housing. The AP1-TB desktop base unit produces live audio and playback functions. Talk from the base unit to remote speaker/microphone is engaged by toggling the “hold to talk” switch and speakinginto the built-in microphone. A person at the remote speaker/ microphone can listen and talk hands-free. The ASK4 #501 is a single zone audio monitoring system for two-way listen/talkback communication. The remote TLMW is a wall mounted speaker/microphone that contains an onmi-directional microphone and an 2 1/2” speaker. As part of a complete system audio can be monitored by manually pressing the zone activation switch of the base station. It has input-output to a DVR/VCR for recording and playback. Contains a 3 speaker for monitoring live audio and playback from a DVR/VCR. A 12Vdc power supply is included. For two-way listen/talkback, all Louroe Speaker/Microphones (TLI, TLO, TLM, or TLSP) are compatible. Dimensions:
Base station- 8.25″‘ L x 5.75” W x 1.375’ H
Faceplate: 6.8″ L x 5.12″ W x 0.5″ D
Backbox: 6.92″ L x 5.12″ W x 1.62″ D APPLICATION
When part of a Louroe Audio System, the ASK 4 #501 can be used in situations such as:
- Sleep Disorder Labs
- Therapy Labs
- Classrooms
- Anywhere CCTV Cameras Are Installed
- Heart Catheter Labs
- Convenience Stores
- Observation Rooms
- Warehouses
- Fast Food Restaurants
| Output of microphone (Mic) | Line Level (0 dB, 600W @ 1KW) |
| Frequency Response (Mic) | 50 Hz to 15 kHz |
| Current Drain (mic) | 10 mA |
| Speaker | 2 1/2”, 7W w/ 70V transformer |
| Faceplate | 6.8”L x 5.12”W x 0.5”D |
| Backbox | 6.92”L x 5.12”W x 1.62”D |
| Weight | 13 oz |
