Louroe ASK-4 #631 Audio Monitoring Kit

        Louroe ASK-4 #631 Audio Monitoring Kit

        LT Security
        SKU: LE-381
        IF-1: Single zone audio interface Provides 12 Vdc power to the microphone Volume control to prevent overdriving RCA and 3.5 mm audio outputs Compatible with most recording devices that accept line level audio input Verifact® A : Omni-directional, within 30′ diameter circle High impact anti static ABS microphone housing Can be placed up to 1000′ away from the base station MS-1 : LED rocker switch on stainless steel, single gang faceplate
          • 33% less
          Market price:$481.27 save $157.38
        • $323.89

        OR
        • Omni-directional microphone can pick up normal sounds 15’ away or within a 30’ diameter circle.
        • Model IF-1 Audio Interface Adapter provides power to the microphones.
        • Contains gain adjust for each microphone output to prevent overdriving of signal into a DVR, soundcard, IP Network Camera, etc.
        • Mute switch turns off the microphone when it is not needed
        • 12Vdc/110V power supply included
        • Connector cables from audio output of IF-1 to audio input of recording device included
        IF-1:
        Single zone audio interface
        Provides 12 Vdc power to the microphone
        Volume control to prevent overdriving
        RCA and 3.5 mm audio outputs
        Compatible with most recording devices that accept line level audio input
        Verifact® A :
        Omni-directional, within 30′ diameter circle
        High impact anti static ABS microphone housing
        Can be placed up to 1000′ away from the base station
        MS-1 :
        LED rocker switch on stainless steel, single gang faceplate

        The ASK-4®#631 is a single zone audio monitoring system with a wall mounted mute switch. This system is designed to interface with a DVR, CCTV or other recording devices that accept line level input. The IF-1 Audio interface contains a volume control for the line level output to recording devices. The Verifact® A is microphone is designed for ceiling. The MS-1 is an illuminated mute switch that can use to mute the microphone output. It is commonly used for interrogation rooms.

        The ASK-4 #631 is a single zone audio monitoring system with a wall mounted mute switch. This system is designed to interface with a DVR, VCR or other recording devices that accept line level input. The IF-1 Audio Interface Adapter provides power to the microphone and gain controlled audio output to the receiving device such as an IP camera or DVR. The Verifact A is an omnidirectional pre-amplified microphone that produces line level output. The MS-1 is an illuminated mute switch that can mute microphone output to recorder and is commonly used for interrogation rooms.

        Dimensions:
        Interface- 6.125″ L x 4.625″ W x 1.375″ H
        Microphone- 4″ Diag. x 1.5″ H
        Switch- 2.75″ W x 4.5″ H

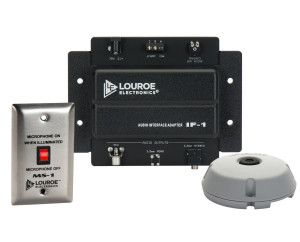

        KIT CONTENTS
        • Verifact Model A Microphone
        • Model IF-1 Audio Interface Adapter
        • Model MS-1 Mute Switch
        • Model AD-1 12Vdc power supply
        • Single RCA cable
        • 3.5mm Stereo Cable
        • RCA to 3.5mm Mono Adaptor

        APPLICATION
        The ASK-4 #631 can be used in situations such as:
        • Convenience Stores
        • Fast Food Restaurants
        • Customer Service Counters
        • Cashier Booths

        SPECIFICATIONS (IF-1 Interface Adapter)
        Input impedance17.5 KΩ @ 1kHz
        Output impedancel600Ω @1kHz
        Power supply12Vdc, 500 mA
        Dimensions6 1/8”L x 4 5/8”W x 1 3/8”H
        Audio output gainup to +10dB
        Weight5.5 oz

        SPECIFICATIONS (Microphone - Model A)
        TypeElectret Condenser
        OutputLine Level (0 dB 600W @ 1 kHZ)
        Frequency response50 Hz to 15 kHz ± 1 dB
        Current drain10 mA
        Supply voltage12Vdc
        Dimensions4"Dia x 1 ½"H
        Weight3.5 oz
        Shipping Weight of kit2 lbs

        Ask4_631_inst_2_151.pdf

        ask4_631_specs_2_151.pdf
