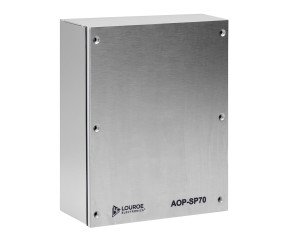

Louroe AOP-SP70 Speakerphone Conversion Unit
        • Louroe AOP-SP70 Speakerphone Conversion Unit
        • Louroe AOP-SP70 Speakerphone Conversion Unit

        Louroe AOP-SP70 Speakerphone Conversion Unit

        Louroe Electronics
        SKU: LE-129
        • Audio Conversion Unit used to power Louroe TLO
        • Drives audio signals into DVR, IP network, cameras
        • Amplifies talkback from receiving device for broadcast
        • Contains level controls for listen and talkback
        • 12 Vdc power supply included
          • 33% less
          Market price:$508.17 save $166.17
        • $342.00

        OR
        • Audio Conversion Unit used to power Louroe TLO
        • Drives audio signals into DVR, IP network, cameras
        • Amplifies talkback from receiving device for broadcast
        • Contains level controls for listen and talkback
        • 12 Vdc power supply included
        • Contains audio inputs (terminal blocks) for microphone and speaker connection from Louroe Model TLO
        • Sends power to speaker/microphone (TLO)
        • Drives audio signals into DVR, IP Network Cameras, etc.
        • Amplifies talkback from receiving device for broadcast through TLO Speaker
        • Contains level controls for listen and talkback
        • Contains built-in 12Vdc power jack
        • 12Vdc power supply included

        AOP-SP70 is an a speakerphone converter used in conjunction with Louroe Model TLO Outdoor Speaker/Microphone. It converts the audio signal of the TLO for providing two-way audio with a DVR, IP Network Camera or Video Server. In addition, the AOP-SP70 provides 12Vdc power to the TLO. The AOP-SP70 is used with the TLO Speaker/Microphone primarily for outdoor or harsh environment applications requiring two-way communication with the above listed audio/video receiving devices.

        For video transmission systems requiring two-way audio over the network, the Louroe AOP-SP Series of speakerphones are ordinarily utilized for providing bidirectional audio. However, they are not designed for outdoor or high vandalism applications. To accommodate these applications, the AOP-SP70 conversion unit was developed to make Louroe Model TLO outdoor Speaker/Microphone compatible with DVR’s, IP Network Cameras, Video Servers, etc.
        Along with converting the audio signals for compatibility with IP Camera, DVR, etc., the AOP-SP70 also:
        • Provides power to the Louroe TLO unit ,
        • Drives the audio signals into the audio input of DVR, etc.
        • Amplifies the audio talkbalk received from the “speaker out” of the DVR, etc. for broadcast through the TLO speaker ,
        • Contains level controls for microphone input and speaker output ,
        • Built-in 12Vdc power jack

        A 120Vac/12Vdc power supply is included.

        Dimensions:
        8.375″ L x 7.375 ” W x 2.75″ H

        APPLICATION
        Contains audio inputs (terminal blocks) for microphone and speaker connection from Louroe Model TLO (outdoor type) with :
        • DVR’s
        • IP Network Cameras
        • PC Soundcards and soundcard modules
        • Video Servers

        SPECIFICATIONS
        Audio output impedance600W
        Audio input impedance600W
        Talkback power output1W @ 70V
        Power Input12 Vdc, 500 mA
        Dimensions8 3/8”L x 7 3/8”W x 2 3/4”H
        Weight3 lbs 8.5 oz
        Shipping Weight6 lbs

        aopsp_70_specs_3_15.pdf

        aop-sp-70_inst_3_15.pdf

          • SKU
            LE-129
          • Weight
            2.13 lbs
        • Manufacturer
          Louroe Electronics
