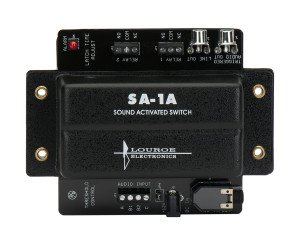

Louroe SA-1A Sound Activated Switch
        • Louroe SA-1A Sound Activated Switch
        • Louroe SA-1A Sound Activated Switch

        Louroe SA-1A Sound Activated Switch

        Louroe Electronics
        SKU: LE-230
        • Sound activated switch
        • Adjustable ‘Sensitivity’ potentiometer
        • Provision for balanced audio source
        • Two threshold-triggered relays
        • Adjustable relay latching time – 500ms to 60s
        • Alarm LED
          • 33% less
          Market price:$292.81 save $95.75
        • $197.06

        OR
        • Sound activated switch
        • Adjustable ‘Sensitivity’ potentiometer
        • Provision for balanced audio source
        • Two threshold-triggered relays
        • Adjustable relay latching time – 500ms to 60s
        • Alarm LED
        • Adjustable threshold level control
        • Two relay contacts for activating cameras, lights, machinery, etc.
        • Adjustable re-set from 0.5 to 60 seconds
        • Alarm LED indicator
        • Automatic electronic switch to pass audio to base station
        • Receptacle for 12 Vdc power

        SA-1A is a sound activated switch designed for applications where audio is required once a predetermined amplitude threshold has been exceeded. Additionally, the unit has two sets of relay contacts for activating cameras, lights, machinery or other annunciations. Automatic re-set is adjustable between 0.5 to 60 seconds. When used with Louroe Microphone and Base Station, the SA-1A is powered by the base station. As a stand alone unit (without a base station) 12 Vdc power is required.

        Model SA-1A is a sound activated switch used in conjunction with the LOUROE ASK-4 #101 Audio Monitoring System or any of the AP Series non-alarming base stations. Usually located near the base station, the SA-1A provides a variable threshold level control that activates the microphone when that level is exceeded by a sound. In addition, it has 2 sets of relay contacts that automatically close when the threshold level is exceeded. This can be used to activate a camera, light or other annunciation. Automatic re-set is adjustable between 0.5 and 60 seconds. An alarm LED is illuminated during activation time. 12 Vdc Power is required.

        Dimensions:
        6.125″ L x 4.625″ W x 1.875″ H

        APPLICATION
        • Unattended Facilities
        • Entry Gates
        • Therapy Labs
        • Warehouses
        • Remote Locations
        • Stables

        SPECIFICATIONS
        Current drain70 mA
        Audio input impedance10KW
        Relay contact5A @ 277 Vac or 5A @ 30Vdc
        DC input12Vdc, 500mA
        Relay latch time0.5 to 60 seconds
        Dimensions6 1/8”L x 4 5/8”W x 1 7/8”H
        Weight7 oz
        Shipping Weight1lb

        sa_1a_inst_3_15.pdf

        sa_1a_specs_3_15.pdf

          • SKU
            LE-230
          • Weight
            0.13 lbs
        • Manufacturer
          Louroe Electronics
