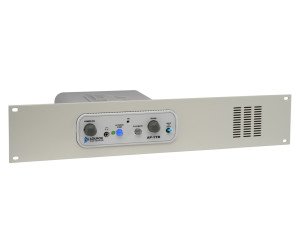

Louroe AP-1TBRM Audio Monitoring Base Station

        Louroe AP-1TBRM Audio Monitoring Base Station

        Louroe Electronics
        SKU: LE-148
        • Rack mounted single zone listen and talkback audio base station
        • Built in microphone and speaker
        • RCA input/ output to DVR for recording and playback
        • Volume control for both listen and talkback
        • 3.5 mm headphone jack for private listening
        • May be located up to 1000′ from the Louroe microphone
          • 27% less
          Market price:$707.85 save $187.68
        • $520.17

        OR
        • Rack mounted single zone listen and talkback audio base station
        • Built in microphone and speaker
        • RCA input/ output to DVR for recording and playback
        • Volume control for both listen and talkback
        • 3.5 mm headphone jack for private listening
        • May be located up to 1000′ from the Louroe microphone
        • Built-in 3 speaker for monitoring audio.
        • Built-in amplifier for playback from DVR/VCR.
        • Provides two-way listen/talkback using Louroe
        • Speaker/Microphone.
        • Built-in microphone for talkback to remote speaker.
        • 3.5 mm headphone jack for private monitoring.
        • Fits in a standard 19” rack
        • Mute function for muting remote station
        • Illuminated zone switches

        AP-1TB-RM is a single zone non-alarming audio monitoring rack mounted base station with listen and talkback. As a system (with a Louroe speaker/microphone), it provides live audio with a built-in speaker and a built-in microphone for talkback to the remote area. Non-rackmount model: AP-1TB

        The AP-1TB-RM is a single zone rack mounted audio base station for two-way listen/talkback communication. A zone is activated by manually pressing the zone activation switch of the unit. It has input-output to a DVR/VCR for recording and playback. Contains a 3 speaker for monitoring live audio and playback from a DVR/VCR. A 12Vdc power supply is included. For two-way listen/talkback, all Louroe Speaker/Microphones (TLI, TLO, TLM, TLMC, or TLSP) are compatible.

        Dimensions:
        19″L x 3.5W x 8.25″ D

        APPLICATION
        When part of a Louroe Audio System, the AP-1TB-RM can be used in situations such as:
        • Sleep Disorder Labs
        • Therapy Labs
        • Classrooms
        • Anywhere CCTV Cameras Are Installed
        • Heart Catheter Labs
        • Convenience Stores
        • Observation Rooms
        • Warehouses
        • Fast Food Restaurants

        SPECIFICATIONS
        Input sensitivity (talkback microphone)-45 dB
        Monitor power output1W @ 8W
        Talkback power output1W into 70V Line
        Audio input impedance10kW
        Audio frequency response100 Hz to 10kHz
        Headphone impedance8Wto 600W
        Power input12 Vdc, 500mA
        Dimensions19”L x 3 1/2”W x 8 1/4”D
        Weight3 lbs 9 oz
        Shipping Weight4 lbs
