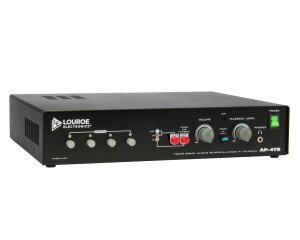

Louroe AP-4TB Audio Monitoring Base Station with Listen & Talkback

        Louroe AP-4TB Audio Monitoring Base Station with Listen & Talkback

        Louroe Electronics
        SKU: LE-322
        • Four zone listen and talkback audio base station
        • Built in microphone and speaker
        • RCA input/ output to DVR for recording and playback
        • Volume control for both listen and talkback
        • 3.5 mm headphone jack for private listening
        • May be located up to 1000′ from the Louroe microphone
          • 21% less
          Market price:$1264.73 save $269.73
        • $995.00

        OR
        • Four zone listen and talkback audio base station
        • Built in microphone and speaker
        • RCA input/ output to DVR for recording and playback
        • Volume control for both listen and talkback
        • 3.5 mm headphone jack for private listening
        • May be located up to 1000′ from the Louroe microphone
        • Built-in 3 speaker for monitoring both live audio and playback audio
        • Microphone output jack for each zone for connection to DVR with multiple audio inputs
        • Built-in microphone for talkback to the remote speaker
        • 3.5mm headphone jack on front panel
        • Desktop model
        • Contains internal power supply for direct connection to 120 Vac source

        AP-4TB is a four zone non-alarming audio monitoring base station with listen and talkback. As a system (with Louroe speaker/microphones), it provides live audio monitoring from four zones, one at a time, with a built-in speaker and a built-in microphone for talkback to the remote area. Zone selection is by push button. Model AP-4TB is designed to interface with a CCTV or DVR. Special filtering enhances the sound quality of audio during playback. For the rackmount version, request model AP4-TB-RM

        The Model AP-4TB is four zone audio monitoring base stations designed for two-way listen/talkback. As a complete system, any zone can be monitored, by pressing the button switch for the desired zone. The units contain a 3” built-in speaker for monitoring audio and a built-in microphone for talking back to the remote zone. Each zone has an audio output jack (RCA) for connection to a DVR with multiple audio inputs. All Louroe Speaker/Microphones (Model TLI, TLM, TLMC, TLSP, and TLO) are compatible with the AP-4TB.

        Dimensions:
        12.5″ L x 10.25″ W x 2.5″ H

        APPLICATION
        • Jail Cell Monitoring
        • Building Peripherals
        • Therapy Labs
        • Warehouses
        • Classroom Monitoring
        • Storage Facilities
        • Day Care Centers
        ....Anywhere CCTV Cameras Are Installed

        SPECIFICATIONS
        Input sensitivity (talkback microphone)-45 dB
        Monitor power output1W @ 8W
        Talkback power output1.5W into 70V line
        Audio output impedance600W
        Audio input impedance10kW
        Audio frequency response (flat)100 Hz to 10kHz
        Audio frequency response (enhanced)-20 dB @ 200 Hz to +8dB @3 kHz
        Headphone impedance8 to 600W
        Power input120 Vac, 60Hz
        Fuse¼ A slow-blow
        Dimensions10¼"L x 12½"W x 2 ½”H
        Weight8 lbs 6 oz
        Shipping Weight10 lbs

        Ap_4tb_inst_3_15.pdf

        ap_4tb_specs_3_15.pdf

          • SKU
            LE-322
          • Weight
            9.03 lbs
        • Manufacturer
          Louroe Electronics
