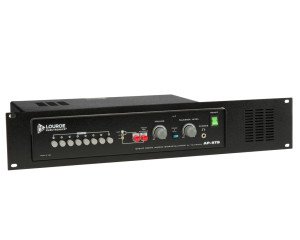

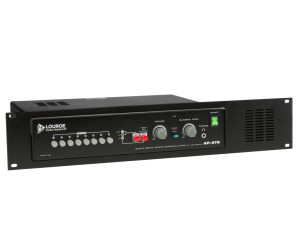

Louroe AP-8TB 8-Zone Audio Monitoring Base Station with Rack Mount
        • Louroe AP-8TB 8-Zone Audio Monitoring Base Station with Rack Mount
        • Louroe AP-8TB 8-Zone Audio Monitoring Base Station with Rack Mount

        Louroe AP-8TB 8-Zone Audio Monitoring Base Station with Rack Mount

        Louroe Electronics
        SKU: LE-344
        • Rack mounted eight zone listen and talkback audio base station
        • Built in microphone and speaker
        • RCA input/ output to DVR for recording and playback
        • Volume control for both listen and talkback
        • 3.5 mm headphone jack for private listening
        • May be located up to 1000′ from the Louroe microphone
          • 33% less
          Market price:$2041.85 save $667.68
        • $1374.17

        OR
        • Rack mounted eight zone listen and talkback audio base station
        • Built in microphone and speaker
        • RCA input/ output to DVR for recording and playback
        • Volume control for both listen and talkback
        • 3.5 mm headphone jack for private listening
        • May be located up to 1000′ from the Louroe microphone
        AP-8TB-RM is a eight zone non-alarming audio monitoring rack mounted base station with listen and talkback. As a system (with Louroe speaker/microphones), it provides live audio monitoring from eight zones, one at a time, with a built-in speaker and a built-in microphone for talkback to the remote area. Zone selection is by push button. Model AP-8TB is designed to interface with a CCTV or DVR. Special filtering enhances the sound quality of audio during playback. Non-rackmount model: AP8-TB

        The AP-8TB-RM is an eight zone rack mounted audio base station with 2-way talk/listen capabilities. It contains a built-in microphone and speaker (mounted in the front rack panel) for two-way audio communication to the remote station. Unit has volume adjustments for both talk and listen. Zone audio can be activated by manually pressing the zone activation switches of the unit. Provides 8 line level RCA outputs for recording remote microphone audio to DVRs with multiple audio inputs. Selectable Audio output and input from a recorder are provided through RCA connectors at the rear of the unit. Has built-in speaker for listening to live audio. Compatible with all Louroe’s two-way remote speaker/microphone units

        Dimensions:
        19″ L x 3.5″ W x 10.25″ D

        SPECIFICATIONS
        Input sensitivity (talkback microphone)-45 dB
        Monitor power output1W @ 8W
        Talkback power output1.5W into 70V line
        Audio output impedance600W
        Audio input impedance10kW
        Audio frequency response (flat)100 Hz to 10kHz
        Audio frequency response (enhanced)-20 dB @ 200 Hz to +8dB @3 kHz
        Headphone impedance8 to 600W
        Power input120 Vac, 60Hz
        Fuse¼ A slow-blow
        Dimensions10¼"L x 12½"W x 2 ½”H
        Weight9 lbs 14 oz
        Shipping Weight14 lbs

        Ap_8tb_rm_inst_3_15.pdf

          • SKU
            LE-344
          • Weight
            10.1 lbs
        • Manufacturer
          Louroe Electronics
