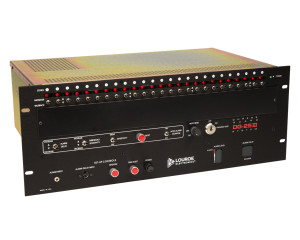

Louroe DG-25 III 25-Zone Alarming Base Station
        • Louroe DG-25 III 25-Zone Alarming Base Station
        • Louroe DG-25 III 25-Zone Alarming Base Station

        Louroe DG-25 III 25-Zone Alarming Base Station

        Louroe Electronics
        SKU: LE-066
        • 25 zone rack mountable base station
        • Variable threshold level control
        • Bi-color LED (each zone). GREEN when monitoring, RED when in alarm
        • DAY and NIGHT threshold sensitivity switch
        • Zone expansion for up to six microphones or speaker/microphones per zone using Model MLA-6 Mixer
          • 33% less
          Market price:$13314.30 save $4353.78
        • $8960.52

        OR
        • 25 zone rack mountable base station
        • Variable threshold level control
        • Bi-color LED (each zone). GREEN when monitoring, RED when in alarm
        • DAY and NIGHT threshold sensitivity switch
        • Zone expansion for up to six microphones or speaker/microphones per zone using Model MLA-6 Mixer
        • 19” Rack mountable
        • Variable threshold level control based on frequency and sound pressure
        • Bi-color LED (each zone). GREEN when monitoring, RED when in alarm
        • Variable alarm delay control (from 0.1 to 3.2 seconds)
        • NO/NC relay contacts for each zone for activating camera or other annunciations
        • Two threshold level settings - HIGH (night) and LOW (day)
        • DAY and NIGHT threshold sensitivity switch
        • Automatic or manual reset for alarm cancellation: auto reset variable from 3 sec to 3 min.
        • Built-in tester for alarm audio and time delay
        • Zone expansion for up to six microphones or speaker/microphones per zone using Model MLA-6 Mixer

        DG-25III is a twenty five zone alarming base station designed to provide sound activated audio monitoring. As a system, it is interfaced with Louroe microphones or speaker/microphones mounted in remote locations. Each zone has a variable threshold level based on frequency and sound pressure, and a variable alarm delay (from 0.1 to 3.2 seconds) that can be set by the installer or owner. When a sound or disturbance exceeds the pre-set threshold level and time duration, the unit goes into alarm. A lighted LED and three second tone identify the zone, along with a relay contact for activating a camera or other annunciation. Requires companion DG-MA for two-way listen/talkback or DG-Monitor for one-way listen. Can be cascaded up to 250 zones with a total of 10 DG-25III base stations. Only one DG-MA or DG-Monitor is required.

        Model DG-25III is a 25 zone alarming sound activated audio monitoring base station. When combined with companion unit DG-MA (listen/talkback amplifier) and interfaced with remote speaker/microphones, it provides a sound activated duress audio system with two-way communications. Each zone has a variable threshold level control, based on frequency and sound pressure level, and a variable alarm delay (from 0.1 to 3.2 seconds) that can be set by using the built-in tester(included) for alarm audio and time delay. The time delay feature is effective in reducing false alarms. The DG-25III is supplied with 25 zone cards. When a sound or disturbance occurs that is below the preset threshold level, the nearest microphone detects the disturbance and identifies the zone with a lighted LED that blinks GREEN. When the sound increases, the LED intensifies to a solid GREEN. If it exceeds the preset threshold, the zone goes into alarm, with the zone LED changing to RED, along with a 3 second beep. A relay contact closes to activate a camera or other annunciation. The person at the remote station can communicate hands-free with personnel at the base station. The person at the DG-25III can talk/listen with the remote station by pressing the zone switch. Talkback to the remote station is with a hand-held microphone (provided) that is connected to the companion DG-MA Listen/Talkback Amplifier. Zone alarm can be cancelled by automatic or manual reset feature. Automatic re-set can run between 3 sec and 3 minutes. The Model DG-25III can be cascaded up to 10 units for a total of 250 zones. All LOUROE Microphones (Models A, B, C, D, D-V, E, K and L-DT) and all Speaker/Microphones (Models TLI, TLM, TLMC, TLO, TLSP and TLSP-PB) are compatible with the DG-25III.

        Dimensions:
        19″ W x 7″ H x 10.25 ” D

        APPLICATION
        • Parking Structures
        • Correctional Facilities
        • Public Access Buildings
        • Juvenile Detention Centers
        • Elevator Cabs
        • Elevator Lobbies
        • Stairwells
        • Hallways

        SPECIFICATIONS
        Power requirements for microphone12Vdc @ 4mA
        Input sensitivity @ alarm frequency-20 dB
        Monitor output frequency100 Hz - 10kHz
        Relay contact0.5A @ 125 Vac
        Alarm tone duration3 Seconds
        Power consumption50W (standby) 75W (max)
        Size19"W x 7”H x 10¼”D
        Weight17.5 lbs. (7.95 lbs)
        FinishBlack anodized

        dg_25III_inst_1_12.pdf

        dg_25III_specs_4_14.pdf

          • SKU
            LE-066
          • Weight
            24.15 lbs
        • Manufacturer
          Louroe Electronics
