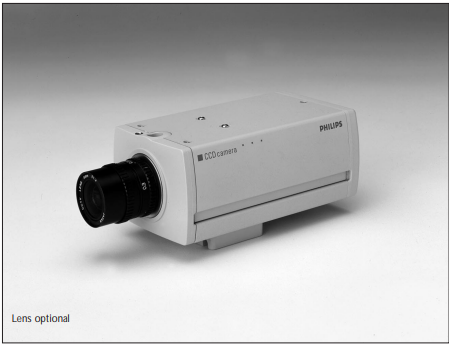

LTC 0350/61 Security Camera LTC350 High Resolution CCD
SKU: WECLTC 0350/61The LTC 0350 Series are compact, rugged, 1/3-inch image format monochrome CCD cameras.Their high sensitivity and reliability provide optimal performance in all environments. Both the CCIR and EIA RS-170 versions are available for direct mains voltage supply and ac/dc low voltage supply. Each offering wide power supply voltage range allowing flexible installation. These cameras are provided with a standard CS-mount for use with a wide variety of lenses. They can be used with fixed iris lenses, manual iris lenses, DC-iris lenses, and video-iris lenses. Their excellent scene reproduction is supported by automatic black level, symmetrical contour enhancement and back-light compensation.The automatic black level feature enhances contrast by removing veiling glare from the picture.With user selectable backlight compensation, the camera responds to the average content of the entire video signal, or can be activated to establish a central area for automatic light control. If an object falls within this area, the camera will automatically adjust to set optimum contrast.This is particularly useful in applications having bright light such as doorways, loading docks, windows, and ATMs (automatic teller machines). Enhanced picture quality and outstanding reliability make them an excellent choice for professional, commercial, and industrial surveillance systems in both indoor and outdoor applications
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
SPECIFICATIONS
Electrical
Model No. Rated Voltage Voltage Range
CCIR Model
LTC 0350/11 24 VAC, 50 Hz 12 to 24 VAC
12 VDC 10.8 to 33 VDC
LTC 0350/51 230 VAC, 50 Hz 85 to 264 VAC
EIA RS-170 Model
LTC 0350/21 24 VAC, 60 Hz 12 to 28 VAC
12 VDC 10.8 to 39 VDC
LTC 0350/61 120 VAC 85 to 132 VAC
Power dissipation: <2.5 W for all models.
All /11 and /21 models operate on AC or DC.
Imager: Interline transfer CCD; 1/3-inch image format.
Active Picture Elements:
CCIR Models: 752 H x 582 V
EIA RS-170 Models: 768 H x 492 V.
Horizontal Resolution: 570 TVL.
Sensitivity (3200 K):
Usable Full
Picture (501RE) Video
Scene illumination1 fc 0.01 0.04
lx 0.1 0.4
Imager illumination fc 0.0014 0.0055
lx 0.014 0.055
1. For f/1.2 lens, 75% scene reflectance.
Signal-to-Noise: >50 dB minimum.
Electronic Shutter: Automatic, 1/60 to 1/100000.
AGC: 30 dB.
Backlight Compensation: Center window weighting for
AGC, electronic shutter and DC-iris.
Contouring: Horizontal.
Video Output: 1.0 Vp-p, 75 ohm.
Synchronization:
Line-Lock (When powered by AC): Synchronizes camera to
power line zero crossing for roll-free vertical interval
switching.Vertical phase delay can be externally adjusted
to allow vertical synchronization in multiphase power
installations.
Free Running, when powered by DC.
Controls:
Phase Adjust Range: 300° (when powered by AC).
Backlight Compensation: On/Off.
Back-Focus: External adjustment.
Iris: DC/Video.
DC Iris Level: Low/High.
Automatic Electronic Shutter: On/Off.
Connectors:
Video Out: BNC.
Iris: 4-pin connector.
Power:
/11 and /21: Screw terminals, power supply input terminals
are isolated from video output terminals.
/51: Mains lead with 2-pin EURO connector
/61: Mains lead with 2-pin USA type connector.
Mechanical
Lens Mount: CS.
Camera Mounts: 1/4"-20 UNC, top and bottom.
Finish/Case: Mushroom/metal housing.
Dimensions:
Housing size: 121 L x 68 W x 49 H mm (4.76 x 2.68 x
1.93 in).
Including connectors and mounting block: 130 L x 68 W x
59 H mm (5.12 x 2.68 x 2.32 in)
Weight: 0.49 kg (1.1 lb).
Environmental
Operating Temperature: -20 °C to +55 °C (-4 °F to
+131 °F).
Electromagnetic Compatibility
EMC Requirements:
CCIR Models: 89/336/EEC.
Immunity: EN50130-4.
Emission: EN50081-1 Class B.
EIA RS-170 Models: U.S.A. and Canada.
FCC Part 15, Class B.
ICES-003.
Safety:
CCIR Models: CE.
EIA RS-170 Models: UL & cUL.
Accessories
Power Transformers and Power Supplies:
Model No. Rated Input Rated Output
TC1323 120 VAC, 60 Hz 24 VAC, 10 VA
TC1334 120 VAC, 60 Hz 24 VAC, 30 VA
TC120PS 120 VAC, 50/60 Hz 15 VDC, 9 VA
TC220PS 220-240 VAC, 50/60 Hz 15 VDC, 9 VA
TC220PSX-24 220-240 VAC, 50/60 Hz 24 VAC, 20 VA
LDH 4466/11 230 VAC, 50 Hz 18 VAC, 10 VA
