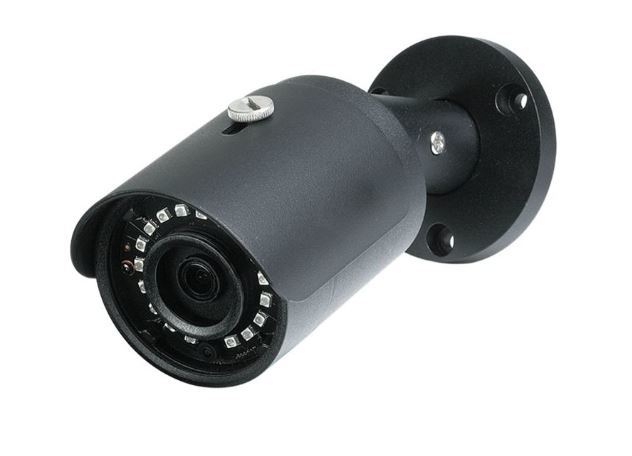

3MP IR Mini Bullet WI-FI Network Camera (Black)

        3MP IR Mini Bullet WI-FI Network Camera (Black)

        iMaxCamPro
        SKU: WECICP-IPC3MPBL008-28

        > 1/3” 3Megapixel progressive CMOS > H.264+ & H.264 dual-stream encoding > 20fps@3M(2048x1536)&25/30fps@1080P(1920×1080) > DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC > Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS > 2.8 mm fixed lens (3.6 mm 6mm optional) > Max IR LEDs Length 30m > IP67, PoE

          • 38% less
          Market price:$350.00 save $132.00
        • $218.00

        OR



        3MP IR Mini Bullet WI-FI Network Camera (Black) | HNC3130S-IRW/28
        Fixed Bullet,1/3",3MP@20FPS,2.8mm,IR(98ft),WIFI,DWDR,H.264

        > 1/3” 3Megapixel progressive CMOS
        > H.264+ & H.264 dual-stream encoding
        > 20fps@3M(2048x1536)&25/30fps@1080P(1920×1080)
        > DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
        > Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
        > 2.8 mm fixed lens (3.6 mm 6mm optional)
        > Max IR LEDs Length 30m
        > IP67, PoE



        System Overview
        The IR Megapixel Fixed Mini-Bullet camera delivers 3MP resolution with a choice of 2.8mm, 3.6mm, or 6mm lens options. The camera's elegant blend of aesthetics combined with its compact form factor provides an excellent choice for a variety of small to mid-size, indoor/outdoor applications at an affordable price

        Functions
        True Day/Night
        A day/night mechanical IR cut filter makes this camera ideal for applications with fluctuating lighting conditions, delivering color images during the day and automatically switching to monochrome as the scene darkens

        Regions of interest
        Regions of Interest (ROI) is a user defined feature that allows the operator to monitor specific areas of a scene while still maintaining overall situational awareness of less important areas.

        Smart IR
        With IR illumination, detailed images can be captured in low light or total darkness. The camera's Smart IR technology adjusts to the intensity of camera's infrared LEDs to compensate for the distance of an object. Smart IR technology prevents IR LEDS from whiting out images as they come closer to the camera. The camera's integrated infrared illumination provides high performance in extreme low-light environments up to 30m (98ft).

        Image flip
        Capturing unnecessary data such as surrounding hallway walls can increase storage requirements without any added value. The image flip feature allows the camera's image to be rotated in 90° increments for better video optimization.

        Protection
        Supporting ±10% input voltage tolerance, this camera suits even the most unstable conditions for outdoor applications. Its 6KV lightning rating provides protectection against the camera and its structure from the effects of lightning.

        Interoperability
        The camera conforms to the ONVIF (Open Network Video Interface Forum) specifications, ensuring interoperability between network video products regardless of manufacturer.

        Smart H.264+
        Delivering high quality video without straining the network, Smart H.264+ is the optimized implementation of H.264. The Smart H.264+ encoding platform includes a scene adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction, providing a savings of up to 70% of bandwidth and storage when compared with standard H.264.











        Camera

        Image Sensor

        1/3” 3Megapixel progresive CMOS

        Effective Pixels

        2304H)x1536(V)

        RAM/ROM

        256MB/16MB

        Scanning System

        Progressive

        Minimum Illumination

        0.1Lux/F2.0(Color), 0Lux/F2.0(IR on)

        S/N Ratio

        More than 50dB

        IR Distance

        Distance up to 30m(98ft)

        IR On/Off Control

        Auto/ Manual

        IR LEDs

        18

        Lens

        Lens Type

        Fixed

        Mount Type

        Board-in

        Focal Length

        2.8 mm (3.6 mm optional)

        Max. Aperture

        F2.0/F2.0

        Angle of View

        H:98°/77°, V:51°/41°

        Focus Control

        Fixed

        Close Focus Distance

        N/A

        PTZ

        Pan/Tilt Range

        Pan:0° ~360° ;Tilt:0° ~90° ;Rotation:0° ~360°

        Video

        Compression

        H.264+/H.264

        Streaming Capability

        2 Streams

        Resolution

        3M(2048×1536)(2304×1296)/

        1080P(1920×1080)/720P(1280×720)/D1



        (704×576/704×480)/



        CIF(352×288/352×240)

        Frame Rate

        3M(1 ~ 20fps)/2M (1 ~ 25/30fps)s)

        D1/CIF(1 ~ 25/30fps)

        Bit Rate Control

        CBR/VBR

        Bit Rate

        H264:24K ~ 8192Kbps

        Day/Night

        Auto(ICR) / Color / B/W

        BLC Mode

        BLC / HLC / DWDR

        White Balance

        Auto/Natural/Street Lamp/Outdoor/Manual

        Gain Control

        Auto/Manual

        Noise Reduction

        3D DNR

        Motion Detetion

        Off / On (4 Zone, Rectangle)

        Region of Interest

        Off / On (4 Zone)

        Electronic Image

        Support

        Smart IR

        Support

        Digital Zoom

        16x

        Flip

        0°/90°/180°/270°

        Mirror

        Off / On

        Privacy Masking

        Off / On (4 Area, Rectangle)

        Audio

        Compression

        N/A

        Network

        Ethernet

        RJ-45 (10/100Base-T)

        Protocol

        HTTP;HTTPs;TCP;ARP;



        RTSP;RTP;UDP;SMTP;FTP;



        DHCP;DNS;DDNS;PPPOE;



        IPv4/v6;QoS;UPnP;NTP;



        Bonjour;802.1x;



        Multicast;ICMP;IGMP;



        Interoperability

        ONVIF, PSIA, CGI

        Streaming Method

        Unicast / Multicast

        Max. User Access

        10 Users/20 Users

        Edge Storage

        NAS(Network Attached Storage)

        Local PC for instant recording

        Web Viewer

        IE, Chrome, Firefox, Safari

        Management Software

        Smart PSS, DSS,Easy4ip

        Smart Phone

        iPhone, iPad, Android Phone

        Certifications

        Certifications

        CE (EN 60950:2000)

        UL:UL60950-1

        FCC: FCC Part 15 Subpart B

        Interface

        Video Interface

        N/A

        Audio Interface

        N/A

        RS485

        N/A

        Alarm

        N/A

        Electrical

        Power Supply

        DC12V PoE (802.3af)(Class 0)

        Power Consumption

        <7.5W

        Environmental

        Operating Conditions

        -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

        Strorage Conditions

        -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

        Ingress Protection

        IP67

        Vandal Resistance

        N/A

        Construction

        Casing

        Metal+Plastic

        Dimensions

        Φ70mm×164.7mm(2.76x6.49)

        Net Weight

        0.38Kg(0.84lb)

        Gross Weight

        0.44Kg(0.97lb)



        DH-IPC-HFW1320S_Datasheet.pdf



        DH-IPC-HFW1320S_QSG.pdf



        DH-IPC-HFW1320S_Operation_Manual.pdf



        DH-IPC-HFW1320S_Installation.pdf



        DH-IPC-HFW1320S_Dimension.pdf



          • SKU
            WECICP-IPC3MPBL008-28
          • Weight
            0.97 lbs
        • Manufacturer
          iMaxCamPro
        • Camera Type
          Bullet
        • Camera Signal
          IP
        • Camera Resolution
          3 Megapixel
        • Lens Size
          2.8mm
        • Optical Zoom
          Fixed Lens
        • Infrared Distance
          30m (98 ft)
        • Remote Login Support
          No Login Support Needed, FREE Setup: Remote Access Mobile App Configuration - Motion Detection Setup
