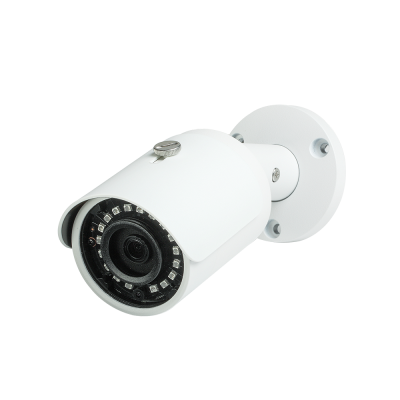

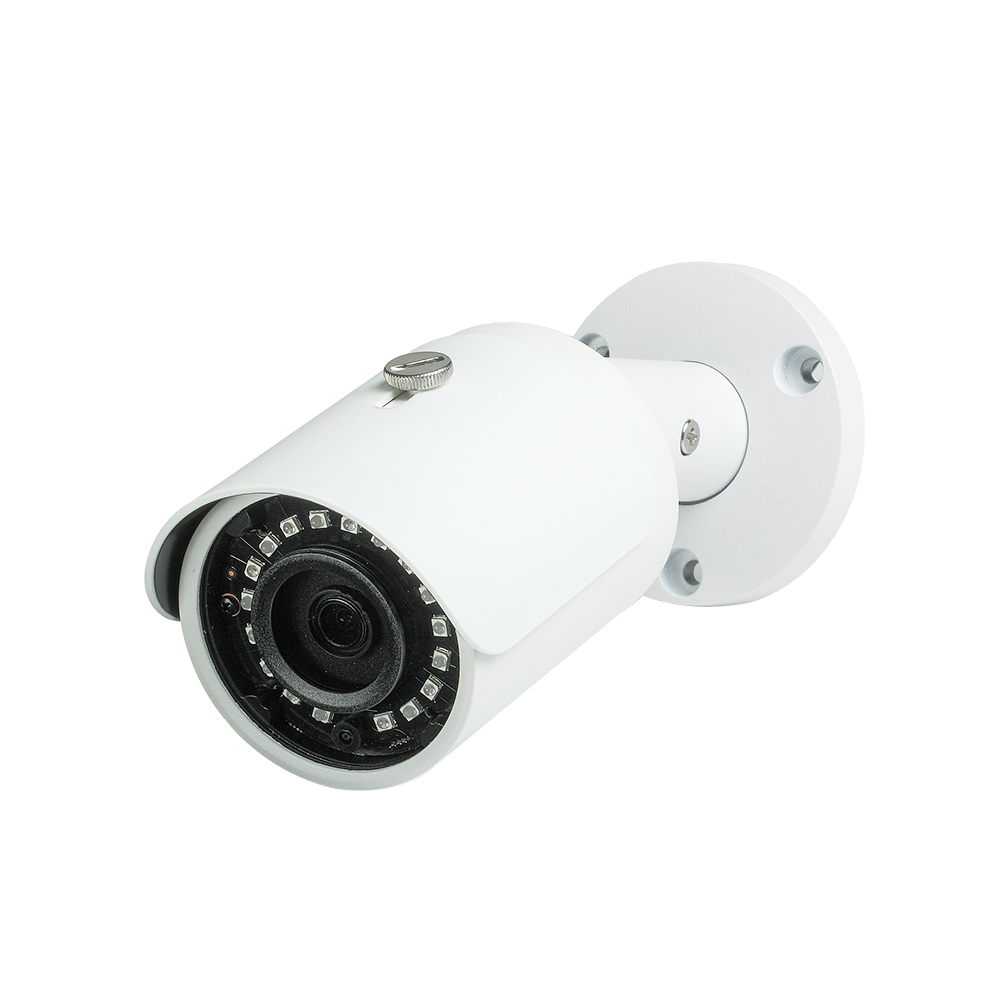

3MP Network IR Mini-Bullet Camera | HNC3130S-IR/36-S2
> 1/3” 3Megapixel progressive CMOS > H.264+ & H.264 dual-stream encoding > 20fps@3M(2048x1536)&25/30fps@1080P(1920×1080) > DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC > Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS > 3.6 mm fixed lens (2.8 mm optional) > Max IR LEDs Length 30m > IP67, PoE
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
The HNC3130S-IR/36-S2 is a high-quality 3MP Network IR Mini-Bullet Camera designed for use in various surveillance settings. This camera features a 3-megapixel progressive scan CMOS sensor that provides clear and detailed footage of the area under surveillance.
The camera also comes with a 3.6mm fixed lens, which provides a wide viewing angle and allows for flexible placement options. With built-in IR illuminators, this camera is capable of capturing clear footage in low-light and complete darkness conditions.
The HNC3130S-IR/36-S2 camera is also designed to withstand harsh weather conditions and is rated IP67 for weather-resistant performance, making it suitable for use in various outdoor settings. It also features a vandal-resistant design, ensuring durability and protection against tampering.
This camera uses the H.265 video compression standard, which provides more efficient video storage without compromising on video quality. It also supports PoE (Power over Ethernet) technology, enabling the transmission of both video and power over a single Ethernet cable.
Additionally, the HNC3130S-IR/36-S2 camera comes with various advanced features, including motion detection, privacy masking, and wide dynamic range (WDR). The motion detection feature enables the camera to send notifications when motion is detected, while the privacy masking feature allows users to block out specific areas of the camera's view. The WDR feature helps to balance lighting conditions in scenes with both bright and dark areas, providing clear footage in challenging lighting conditions.
Overall, the HNC3130S-IR/36-S2 is a high-quality and reliable security camera that provides clear and detailed footage of the area under surveillance. Its advanced technical features, weather-resistant design, and easy installation make it an ideal solution for both indoor and outdoor settings.
> 1/3” 3Megapixel progressive CMOS
> H.264+ & H.264 dual-stream encoding
> 20fps@3M(2048x1536)&25/30fps@1080P(1920×1080)
> DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> 3.6 mm fixed lens (2.8 mm optional)
> Max IR LEDs Length 30m
> IP67, PoE
Camera | |
Image Sensor | 1/3” 3Megapixel progresive CMOS |
Effective Pixels | 2304H)x1536(V) |
RAM/ROM | 256MB/16MB |
Scanning System | Progressive |
Minimum Illumination | 0.1Lux/F2.0(Color), 0Lux/F2.0(IR on) |
S/N Ratio | More than 50dB |
IR Distance | Distance up to 30m(98ft) |
IR On/Off Control | Auto/ Manual |
IR LEDs | 18 |
Lens | |
Lens Type | Fixed |
Mount Type | Board-in |
Focal Length | 2.8 mm (3.6 mm optional) |
Max. Aperture | F2.0/F2.0 |
Angle of View | H:98°/77°, V:51°/41° |
Focus Control | Fixed |
Close Focus Distance | N/A |
PTZ | |
Pan/Tilt Range | Pan:0° ~360° ;Tilt:0° ~90° ;Rotation:0° ~360° |
Video | |
Compression | H.264+/H.264 |
Streaming Capability | 2 Streams |
Resolution | 3M(2048×1536)(2304×1296)/ 1080P(1920×1080)/720P(1280×720)/D1 (704×576/704×480)/
CIF(352×288/352×240) |
Frame Rate | 3M(1 ~ 20fps)/2M (1 ~ 25/30fps)s) |
D1/CIF(1 ~ 25/30fps) | |
Bit Rate Control | CBR/VBR |
Bit Rate | H264:24K ~ 8192Kbps |
Day/Night | Auto(ICR) / Color / B/W |
BLC Mode | BLC / HLC / DWDR |
White Balance | Auto/Natural/Street Lamp/Outdoor/Manual |
Gain Control | Auto/Manual |
Noise Reduction | 3D DNR |
Motion Detetion | Off / On (4 Zone, Rectangle) |
Region of Interest | Off / On (4 Zone) |
Electronic Image | Support |
Smart IR | Support |
Digital Zoom | 16x |
Flip | 0°/90°/180°/270° |
Mirror | Off / On |
Privacy Masking | Off / On (4 Area, Rectangle) |
Audio | |
Compression | N/A |
Network | |
Ethernet | RJ-45 (10/100Base-T) |
Protocol | HTTP;HTTPs;TCP;ARP; RTSP;RTP;UDP;SMTP;FTP;
DHCP;DNS;DDNS;PPPOE; IPv4/v6;QoS;UPnP;NTP;
Bonjour;802.1x; Multicast;ICMP;IGMP;
|
Interoperability | ONVIF, PSIA, CGI |
Streaming Method | Unicast / Multicast |
Max. User Access | 10 Users/20 Users |
Edge Storage | NAS(Network Attached Storage) Local PC for instant recording |
Web Viewer | IE, Chrome, Firefox, Safari |
Management Software | Smart PSS, DSS,Easy4ip |
Smart Phone | iPhone, iPad, Android Phone |
Certifications | |
Certifications | CE (EN 60950:2000) UL:UL60950-1 FCC: FCC Part 15 Subpart B |
Interface | |
Video Interface | N/A |
Audio Interface | N/A |
RS485 | N/A |
Alarm | N/A |
Electrical | |
Power Supply | DC12V PoE (802.3af)(Class 0) |
Power Consumption | <7.5W |
Environmental | |
Operating Conditions | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
Strorage Conditions | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
Ingress Protection | IP67 |
Vandal Resistance | N/A |
Construction | |
Casing | Metal+Plastic |
Dimensions | Φ70mm×164.7mm(2.76x6.49) |
Net Weight | 0.38Kg(0.84lb) |
Gross Weight | 0.44Kg(0.97lb) |
