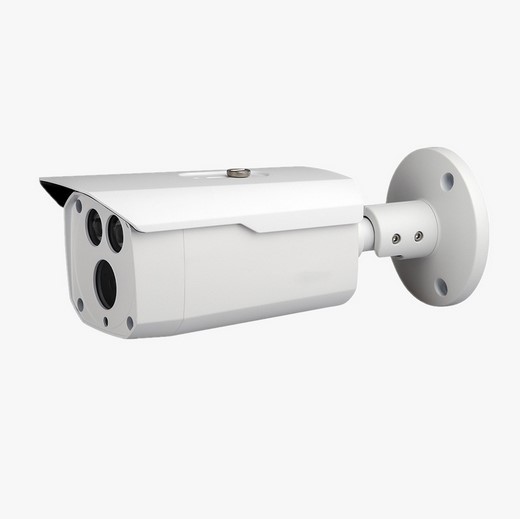

4MP WDR LXIR Bullet Network Camera

WEC
SKU: WECIPC-HFW4431D-AS

> 1/3” 4Megapixel progressive scan CMOS
> H.265&H.264 triple-stream encoding
> 25/30fps@4M(2688×1520)
> Smart Detection supported
> WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> 3.6mm fixed lens (6mm lens optional)
> 1/1 Alarm in/out, 1/1 audio in/out
> Max. IR LEDs Length 80m
> Micro SD memory, IP67, PoE

    • 50% less
    Market price:$436.00 save $218.00
  • $218.00

OR


PRODUCT FEATURES

> 1/3” 4Megapixel progressive scan CMOS
> H.265&H.264 triple-stream encoding
> 25/30fps@4M(2688×1520)
> Smart Detection supported
> WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> 3.6mm fixed lens (6mm lens optional)
> 1/1 Alarm in/out, 1/1 audio in/out
> Max. IR LEDs Length 80m
> Micro SD memory, IP67, PoE

System Overview

Eco-savvy products by upgrading H.265 encoding technology, bringing high efficient video compression. It saves bandwidth and storage , energy-saving design to enhance the monitoring system . Meanwhile, the series offers features such as starlight , Smart IR technology , intelligent image analysis techniques. It provides excellent image quality and intelligent and efficient event reminders . This series provides IP67 weatherproof and IK10 vandal-proof protection feature. Give customers more value

Functions

Wide Dynamic Range

Embeded with industry leading wide dynamic range (WDR) technology, vivid picutures are achieved even in the most intense contrast lighting conditions. For applications with both bright and low lighting conditions that change quickly, True WDR (120dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.

Intelligent Video System (IVS)

With built-in intelligent video analytics, the camera has the ability to detect and analyze moving objects for improved video surveillance. The camera provides optional standard intelliegence at the edge allowing detection of multiple object behaviors such as abandoned or missing objects. IVS also supports Tripwire analytics, allowing the camera to detect when a pre-determined line has been crossed, ideal for business intelligence, and Facial Detection, for searching or identification of individuals.

Environmental

With a temperature range of -30 °C to +60 °C (-22 °F to +140 °F), the camera is designed for extreme temperature environments. Subjected and certified to rigorous dust and water immersion tests, the IP67 rating makes it suitable for demanding outdoor applications. For enviorments with rain, sleet, snow and fog, an integrated wiper provides users with clear visibility at all times.

Protection

Supporting ±30% input voltage tolerance, this camera suits even the most unstable conditions for outdoor applications. Its 4KV lightning rating provides protectection against the camera and its structure from the effects of lightning.

Smart H.265+

Deliver high quality video without straining the network, Smart H.265+ is the optimized implementation of H.265. The Smart H.265+ encoding technology includes a scene adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction, providing saving of up to 70% of bandwidth and storage when compared with standard H.265.

HEVC (H.265)

H.265 ITU-T VCEG is a new video coding standard. H.265 Following standard developed around the existing video coding standard H.264 , some retain the original technology , while some of the relevant technology to improve the new technology uses advanced technology to improve the relationship between the code stream , encoding quality , and the delay between algorithm complexity , optimize settings specific contents include : Improve compression efficiency , improve the robustness and error recovery capabilities, real-time to reduce the delay, reduce channel acquisition time and a random access delay , reduce complexity , etc

Camera

Image Sensor

1/3” 4Megapixel progressive scan CMOS

Effective Pixels

2688(H)x1520(V)

RAM/ROM

512MB/32MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual, 1/3(4)~1/100000s

Minimum Illumination

0.08Lux/F2.0( Color,1/3s,30IRE)

0.3Lux/2.0( Color,1/30s,30IRE)

0Lux/F2.0(IR on)

S/N Ratio

More than 50dB

IR Distance

Distance up tp 80m (262ft)

IR On/Off Control

Auto/ Manual

IR LEDs

2

Lens

Lens Type

Fixed

Mount Type

Board-in

Focal Length

3.6mm (6mm optional)

Max. Aperture

F2.0 (F2.0)

Angle of View

H: 87° (55°), V: 48° (31°)

Optical Zoom

N/A

Focus Control

Fixed

Close Focus Distance

N/A

DORI Distance

Lens

Detect

Observe

Recognize

Identify

3.6 mm

80m(262ft)

32m(105ft)

16m(52ft)

8m(26ft)

6.0 mm

117m(384ft)

47m(154ft)

23m(75ft)

12m(39ft)

Pan/Tilt/Rotation

Pan/Tilt/Rotation Range

Pan:0˚~360˚; Tilt:0˚~87˚; Rotation:0˚~360˚

Intelligence

IVS

Tripwire, Intrusion, Object Abandoned/Missing

Advanced Intelligent Functions

Face Detection

Video

Compression

H.265+/H.265/H.264+/H.264

Streaming Capability

3 Streams

Resolution

4M(2688×1520)/3M(2304×1296)/

1080P(1920×1080)/1.3M(1280x960)/

720P(1280×720)/D1(704×576/704×480)/

VGA(640×480)/CIF(352×288/352×240)

Frame Rate

Main Stream: 4M(1~25/30fps)

Sub Stream: D1(1~25/30fps)

Third Stream: 720P(1~25/30fps)

Bit Rate Control

CBR/VBR

Bit Rate

H.264: 24~10240Kbps

H.265: 14~6144Kbps

Day/Night

Auto(ICR) / Color / B/W

BLC Mode

BLC / HLC / WDR(120dB)

White Balance

Auto/Natural/Street Lamp/Outdoor/Manual

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detetion

Off / On (4 Zone, Rectangle)

Region of Interest

Off / On (4 Zone)

Electronic Image Stabilization (EIS)

N/A

Smart IR

Support

Defog

N/A

Digital Zoom

16x

Flip

0°/90°/180°/270°

Mirror

Off / On

Privacy Masking

Off / On (4 Area, Rectangle)

Audio

Compression

G.711a/ G.711Mu/ AAC/ G.726

Network

Ethernet

RJ-45 (10/100Base-T)

Protocol

HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP;

FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS;

UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP;

IGMP; SNMP

Interoperability

ONVIF, PSIA, CGI

Streaming Method

Unicast / Multicast

Max. User Access

10 Users /20 Users

Edge Storage

NAS

Local PC for instant recording

Mirco SD card 128GB

Web Viewer

IE, Chrome, Firefox, Safari

Management Software

Smart PSS, DSS, Easy4ip

Smart Phone

IOS, Android

Certifications

Certifications

CE (EN 60950:2000)

UL:UL60950-1

FCC: FCC Part 15 Subpart B

Interface

Video Interface

N/A

Audio Interface

1/1 channel In/Out

RS485

N/A

Alarm

1 channel In: 5mA 5VDC

1 channel Out: 300mA 12VDC

Electrical

Power Supply

DC12V, PoE (802.3af)(Class 0)

Power Consumption

<7.5W



Environmental

Operating Conditions

-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

Strorage Conditions

-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

Ingress Protection

IP67

Vandal Resistance

N/A

Construction

Casing

Metal

Dimensions

241.8mm×90.4mm×90.3mm (9.52”×3.56”×3.56”)

Net Weight

0.61Kg (1.35lb)

Gross Weight

0.8kg (1.77lb)



Datasheet

User Manual

Drawings

A&E Document

Firmware



    • SKU
      WECIPC-HFW4431D-AS
    • Weight
      1.35 lbs
  • Manufacturer
    WEC
  • Camera Type
    Bullet
  • Camera Signal
    IP
  • Camera Resolution
    4 Megapixel
  • Lens Size
    3.6mm
  • Optical Zoom
    Fixed Lens
