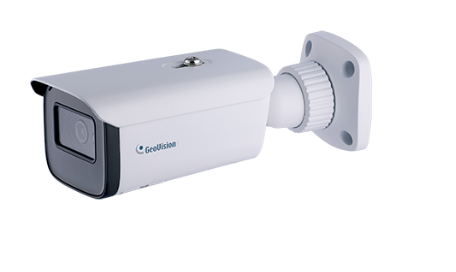

GV-GBL4900+256G
SKU: 84-GBL4900-256GModel Number - GV-GBL4900+256G
Manufacturer SKU Number: 84-GBL4900-256G
Sales Part Number : 125-GBL4900-256G
Direct-to-Cloud
AI deep learning: AI Perimeter Protection & Classification (Human, Vehicle)
1/3" progressive scan CMOS sensor
Min. illumination at 0.005 lux
Triple streams from H.265, H.264 or MJPEG
Up to 30 fps at 2592 x 1520
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
Picture Elements - 2592 (H) x 1520 (V)
Minimum Illumination
Color - 0.005 Lux (F1.6, AGC ON)
IR On - 0 Lux
Shutter Speed - Automatic / Manual (1/3 ~ 1/100000 sec)
White Balance - Automatic, Manual
Gain Control - Automatic, Manual
S/N Ratio - 50 dB
WDR - WDR Pro
Dynamic Range - 120 dB
Lens
Megapixel - 4MP
Day / Night - Yes (with removeable IR-cut filter)
Lens Type - Fixed
Focal Length - 2.8
Maximum Aperture - F/1.6
Mount - M12
Horizontal FOV - 95.3°
Operation
Focus - Fixed
Zoom - Fixed
Iris - Fixed
IR LED Quantity - 2 IR LEDs
Max. IR Distance - 50 m (165 ft)
DORI
Lens - 2.8mm
Detect - 60.6 m (198.8 ft)
Observe - 24.8 m (81.3 ft)
Recognize - 12.1 m (39.6 ft)
Identify - 6.0 m (19.6 ft)
Operation
Video Compression - H.265, H.265+, H.264, H.264+, MJPEG
Video Streaming - Triple streams
Video Resolution
Main Stream - 2592 x 1520 (Default), 2560 x 1440, 2304 x 1296, 1920 x 1080
Sub Stream - 1280 x 720 (Default), 704 x 576, 704 x 480, 640 x 480, 640 x 360, 480 x 240, 352 x 288, 352 x 240
Third Stream - 1280 x 720 (Default), 704 x 576, 704 x 480, 480 x 240, 352 × 288, 352 × 240
Frame Rate
30 fps at 2592 x 1520 / 2560 x 1440 / 2304 x 1296 / 1920 x 1080 / 1280 x 720 / 704 x 480 / 640 x 480 / 640 x 360 / 480 x 240 / 352 x 240 (60 Hz)
25 fps at 2592 x 1520 / 2560 x 1440 / 2304 x 1296 / 1920 x 1080 / 1280 x 720 / 704 x 576 / 640 x 480 / 640 x 360 / 480 x 240 / 352 x 288 (50 Hz)
*The frame rate and performance may vary depending on the number of connections and data bitrates (different scenes)
Video Analytics - Motion Detection, Object Abandoned/Missing Detection
Smart Alarm - Motion Detection, SD Card Error, SD Card Full, IP Address Conflict, Cable Disconnection, Scene Change Detection, Video Blur Detection, Video Cast Detection, Audio Exception
Image Setting - Brightness, Contrast, Saturation, Sharpness, Flicker-less, 3D Noise Reduction, Image Orientation (Flip, Mirror, 0°, 90°, 180°, 270°‐including Corridor form
Dual Redundant Images - Yes (for failsafe firmware upgrade)
Audio Compression - G.711
Audio Support - Two-way audio (external speaker required)
Digital I/O
Input - 1 Input, dry contact, NO / NC
Output - 1 Relay Output (1A 30V DC / 0.3A 125V AC)

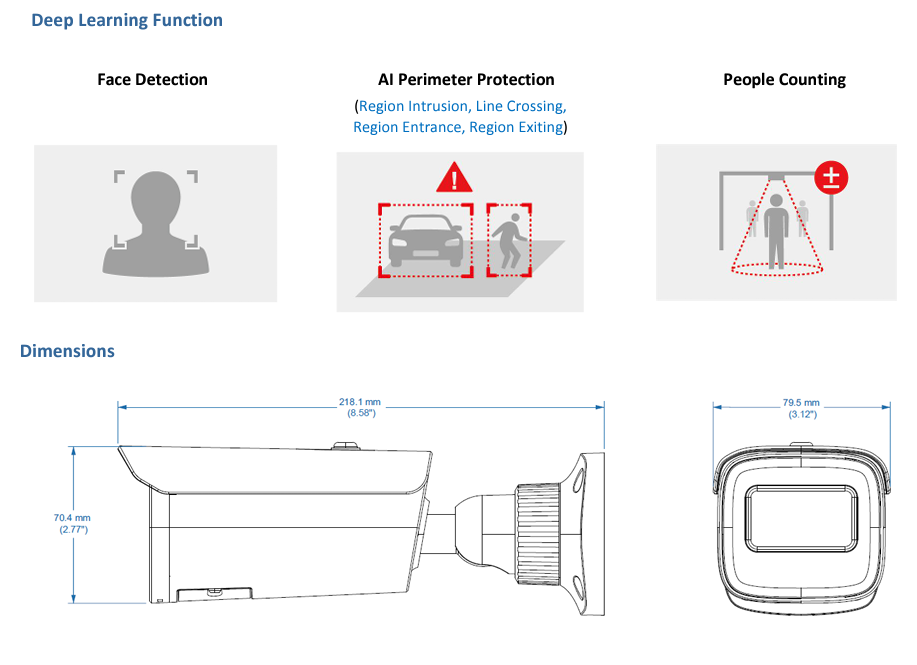

Deep Learning Function
AI Analytics
Face Event - Face Detection
Smart Event - - Line Crossing, Region Entrance, Region Exiting, Region Intrusion, Target Counting, Heat Map, Video Metadata: Human & Vehicle classification, - Loitering Detection, Illegal Parking Detection
*A maximum of 2 smart detection functions are suggested at a time to ensure comprehensive detection results and the optimized performance by the camera
*Once connected to GV-Cloud VMS / GV-Center V2, up to 2 smart detection functions are supported
Network
Interface - 10/100 Ethernet
Protocol - 802.1x, DDNS, DHCP, FTP, HTTP POST, HTTP, HTTPs, IPv4, IPv6, NTP, ONVIF (Profile G, S, T,M), PPPoE, QoS, RTCP, RTMP, RTP, RTSP, SMTP, SNMP, UDP, UPnP
Mechanical
Camera Angle Adjustment
Pan - 0° ~ 360°
Tilt - 0° ~ 90°
Rotate - 0° ~ 360°
Connectors
Power - DC Jack (DC 12V, 1.25 A) / PoE (IEEE 802.3af)
Ethernet - RJ-45
Audio - 1 In (built-in microphone, external speaker required with power supply), 1 Out (stereo phone jack, 3.5 mm / 0.14”)
Digital I/O - 4‐pin terminal block pitch 3.5 mm (0.14”)
Local Storage - Micro SD card slot (SDHC / SDXC / UHS-I, Class 10) * UHS-II card type is not supported
General
Operation Temperature - -30~ 60°C (-22 ~ 140°F)
Humidity - 0% ~ 95% (no condensation)
Power Source - 12VDC/ PoE (IEEE802.3af)
Max. Power Consumption - 10W
Dimensions - 218.1 x 70.4 x 79.5 mm (8.58 x 2.77 x 3.12”)
Weight - 0.67 kg (1.48 lb)
Ingress Protection - IP67
Vandal Resistance - IK10 for metal casing
Certification - CE, FCC, RoHS, UKCA compliant
Web Interface
Installation Management - Web-based configuration
Maintenance - Firmware upgrade through Web Browser or Utility
Access from Web Browser - Live View, Playback, Video Recording, Image Quality, Bandwidth Control, Image Snapshot, Digital Zoom, Text Overlay, Image Masking, Intelligent Mark
Language - Hungarian, English, Spanish, Spanish (LA), Italian, Portuguese, Russian, Polish, Romanian, Hebrew, German, French, Dutch, Norwegian, Czech, Turkish, Japanese, Korean, Chinese Traditional
Software Applications
Software Supported - GV-VMS (V17.4.7 or later, V18.3.2 or later), GV-Edge Recording Manager (V2.2.7 or later), GV-Control Center (V4.2.0 or later), GV-Recording Server (V2.1.1 or later), GV-Cloud VMS (V1.1.0 or later), GV-Center V2 (V18.4.1 or later)
Smart Device Access - GV-Eye for iOS and Android (V3.1.1 or later)
Live Viewing - Web Browser (IE, Edge, Chrome, Firefox, Safari), Mobile App
