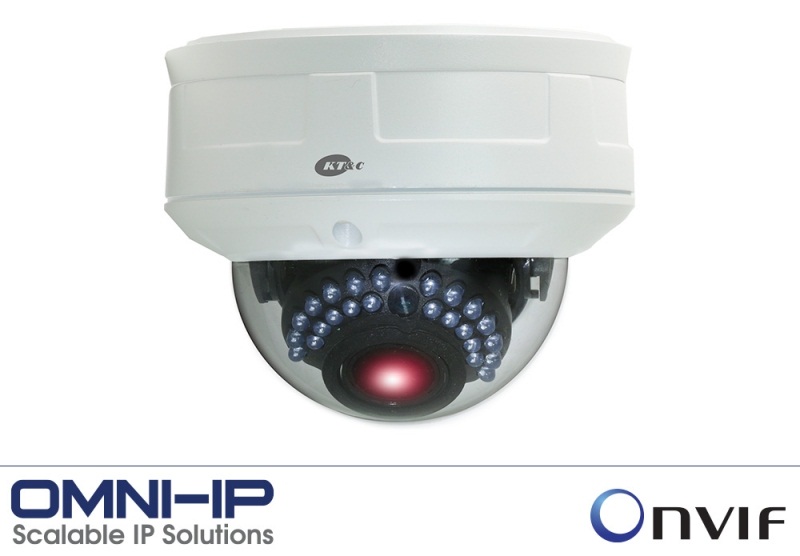

KA-DRWM2
- Omni IP ‘hand free’ Plug-and-Play system: just connect to PoE switch and stream video
- View and record 3MP resolution at up to 20FPS from 1/3” progressive scan CMOS sensor - 3MP images contain NINE times the pixel detail versus traditional analog images - At 3X digital zoom, a 3MP images display more detail than a basic analog camera
- Real time 30FPS streaming at 1920x1080 (1080p)/1280x720 (720p)
- Low light sensitivity of .07lux with - True Day/Night (ICR) for best daytime color reproduction and low/no light sensitivity - Low/no light coverage enhanced by 24 IR LEDs with 66 foot range - Smart IR Control of image contrast despite bright, close in objects in scene
- Extensive OSD capabilities, many controlled directly from Omni IP NVR - Dual streaming in H.264/MJPEG with fixed/variable bandwidth control from 32Kb/s to 12.3Mb/s - Region of Interest allocates bandwidth to maximize resolution in priority areas within scene - Day/night and IR switching control by photo sensor or schedule (or disable IRs if desired) - In-camera detection of motion, video loss or tampering with alarm reporting to NVR - 3D DNR improves low light image clarity and reduces bandwidth/NVR disk utilization - DWDR compensates bright or unbalanced scene lighting - BLC specifically for handling scenes with back lit subjects
- Varifocal 2.8~12mm AI lens covers 105°~32° field of view*
- Dual PoE/12VDC power
- PoE for efficiency and convenience - 12VDC for legacy system upgrade or beyond PoE cable distance range
- Operate almost anywhere: IP66 weather resistance and -22°F~140°F temperature range
- Three axis dome housing with 360° pan/rotate and 90° tilt for flexible wall or ceiling mounting
- Support for Safari/Chrome/FireFox/IE web browsers with free plug-in
- Customize installation with KA-DRJB2 back box; KA-DRWM2 Wall Mount; KA-BRPM1 Pole Mount & KA-BRCM1 Corner Mount for use with KA-DRWM2; KA-DRIC1 In-Ceiling mount
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
Camera packaging contents:
Image Sensor 1/3" Progressive Scan CMOS Total Pixels (H x V) 2048x1536 3 Megapixel @ Maximum Resolution Day & Night True Day & Night with ICR; Controllable by light sensor or via schedule Min. Illumination .07lux @ F1.2, AGC on 0 Lux (IR LED On; IR may be disabled in OSD) IR LED 24 IR LED 850nm IR Distance 66 ft. (20m) Nominal IR performance depends on scene reflectivity Smart IR OSD Controlled Off/On Shutter Speed 1/30s ~ 1/100,000s DWDR/BLC DWDR: Off/On, Level Adjust; BLC: Off/Top, Bottom, Left, Right, Center Weighted White Balance AWB; Locked; Incandescent, Warm, Natural or Fluorescent Light 3D DNR Off/On, Level Adjust Focal Length (standard) 2.8mm~12mm F=1.4 Lens Angle 2048 × 1536: Angle of view: 105.2°~31.9° 1920 × 1080: Angle of view: 118.7°~36° Lens Type Manual Varifocal Main Stream 2048x1536 1920x1080 1280x720 Supported Resolutions Sub Stream 320x240 352x240 640x480 704x480 Maximum Frame Rates 20FPS@2048x1536 ; 30FPS@1920x1080 ; 30FPS@1280x720 Compression H.264 Main Profile & MJPEG Bit Rate Nominal rates from drop down: 1024, 2048, 3072, 4096, 6144, 8192 Kbps Customized rates: 32Kbps~12288Kbps Streaming Dual-Stream at different frame rates and bandwidth Region of Interest Image detail priority/enhancement for up to four user defined areas for main and/or sub stream Image Settings Brightness, Contrast, Saturation, Sharpness, Hue, AGC Gain, Image rotation/mirror, 50/60Hz system, Text overlay (Name, Time/Date, Fixed Labels; adjustable for position, size, color, etc.), Privacy masking LAN Ethernet 10/100 Base-T (RJ-45 Type) with weather sealed shell Security Multiple user access levels with password protection; Watermarking of captured video IP address filter; IEEE802.1X (Authentication) Protocol IPv4, IPv6, HTTP, TCP/IP, ICMP, DHCP, DNS, DDNS, RTP, RSTP, RTCP, uPnP, IGMP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP, 802.1X, QoS, Bonjour Network Storage Video upload to PC, FTP or NAS VMS Compatibility ONVIF, PSIA, CGI, ISAPI Supported Browsers Internet Explorer, Chrome, FireFox, Safari (with O/S compatible plug-in) Video Motion Detection With arming schedule and multiple actions: notify NVR, send email, upload to FTP, trigger alarm output Alarm Triggers Intelligent video Motion Detection, Video Loss, Tampering Alarm Events Notify NVR, send email, upload to FTP, trigger alarm output SD Card Slot Micro SD / SDHC / SDXC up to 64Gb Angle Adjustment Pan: 0~360° Tilt: 0~90° Rotate: 0~360° Power PoE class 3 (IEEE 802.3af) 12VDC +/- 10% 5.5W nominal; 7.5W IR LED on Interface 8P/8C RJ-45F for Network and PoE Power (DC 12V) Input Environmental IP66 (Weather Resistant); IK10 Vandal Resistant Operating Temperature -22 °F ~ 140 °F (-30 °C ~ 60 °C) Dimension 5.55” diameter × 3.93” high [Ø141×99.9] Other 3 axis Weight 2.2 lbs./1000g Mounting Options KA-DRJB2 Junction Box; KA-DRWM2 Wall Mount; KA-DRIC1 In Ceiling (Flush) Mount; KA-BRPM1 Pole Mount; KA-BRCM1 Corner Mount for use with KA-DRWM2
- Omni IP ‘hand free’ Plug-and-Play system: just connect to PoE switch and stream video
- View and record 3MP resolution at up to 20FPS from 1/3” progressive scan CMOS sensor - 3MP images contain NINE times the pixel detail versus traditional analog images - At 3X digital zoom, a 3MP images display more detail than a basic analog camera
- Real time 30FPS streaming at 1920x1080 (1080p)/1280x720 (720p)
- Low light sensitivity of .07lux with - True Day/Night (ICR) for best daytime color reproduction and low/no light sensitivity - Low/no light coverage enhanced by 24 IR LEDs with 66 foot range - Smart IR Control of image contrast despite bright, close in objects in scene
- Extensive OSD capabilities, many controlled directly from Omni IP NVR - Dual streaming in H.264/MJPEG with fixed/variable bandwidth control from 32Kb/s to 12.3Mb/s - Region of Interest allocates bandwidth to maximize resolution in priority areas within scene - Day/night and IR switching control by photo sensor or schedule (or disable IRs if desired) - In-camera detection of motion, video loss or tampering with alarm reporting to NVR - 3D DNR improves low light image clarity and reduces bandwidth/NVR disk utilization - DWDR compensates bright or unbalanced scene lighting - BLC specifically for handling scenes with back lit subjects
- Varifocal 2.8~12mm AI lens covers 105°~32° field of view*
- Dual PoE/12VDC power
- PoE for efficiency and convenience - 12VDC for legacy system upgrade or beyond PoE cable distance range
- Operate almost anywhere: IP66 weather resistance and -22°F~140°F temperature range
- Three axis dome housing with 360° pan/rotate and 90° tilt for flexible wall or ceiling mounting
- Support for Safari/Chrome/FireFox/IE web browsers with free plug-in
- Customize installation with KA-DRJB2 back box; KA-DRWM2 Wall Mount; KA-BRPM1 Pole Mount & KA-BRCM1 Corner Mount for use with KA-DRWM2; KA-DRIC1 In-Ceiling mount
Image Sensor 1/3" Progressive Scan CMOS Total Pixels (H x V) 2048x1536 3 Megapixel @ Maximum Resolution Day & Night True Day & Night with ICR; Controllable by light sensor or via schedule Min. Illumination .07lux @ F1.2, AGC on 0 Lux (IR LED On; IR may be disabled in OSD) IR LED 24 IR LED 850nm IR Distance 66 ft. (20m) Nominal IR performance depends on scene reflectivity Smart IR OSD Controlled Off/On Shutter Speed 1/30s ~ 1/100,000s DWDR/BLC DWDR: Off/On, Level Adjust; BLC: Off/Top, Bottom, Left, Right, Center Weighted White Balance AWB; Locked; Incandescent, Warm, Natural or Fluorescent Light 3D DNR Off/On, Level Adjust Focal Length (standard) 2.8mm~12mm F=1.4 Lens Angle 2048 × 1536: Angle of view: 105.2°~31.9° 1920 × 1080: Angle of view: 118.7°~36° Lens Type Manual Varifocal Main Stream 2048x1536 1920x1080 1280x720 Supported Resolutions Sub Stream 320x240 352x240 640x480 704x480 Maximum Frame Rates 20FPS@2048x1536 ; 30FPS@1920x1080 ; 30FPS@1280x720 Compression H.264 Main Profile & MJPEG Bit Rate Nominal rates from drop down: 1024, 2048, 3072, 4096, 6144, 8192 Kbps Customized rates: 32Kbps~12288Kbps Streaming Dual-Stream at different frame rates and bandwidth Region of Interest Image detail priority/enhancement for up to four user defined areas for main and/or sub stream Image Settings Brightness, Contrast, Saturation, Sharpness, Hue, AGC Gain, Image rotation/mirror, 50/60Hz system, Text overlay (Name, Time/Date, Fixed Labels; adjustable for position, size, color, etc.), Privacy masking LAN Ethernet 10/100 Base-T (RJ-45 Type) with weather sealed shell Security Multiple user access levels with password protection; Watermarking of captured video IP address filter; IEEE802.1X (Authentication) Protocol IPv4, IPv6, HTTP, TCP/IP, ICMP, DHCP, DNS, DDNS, RTP, RSTP, RTCP, uPnP, IGMP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP, 802.1X, QoS, Bonjour Network Storage Video upload to PC, FTP or NAS VMS Compatibility ONVIF, PSIA, CGI, ISAPI Supported Browsers Internet Explorer, Chrome, FireFox, Safari (with O/S compatible plug-in) Video Motion Detection With arming schedule and multiple actions: notify NVR, send email, upload to FTP, trigger alarm output Alarm Triggers Intelligent video Motion Detection, Video Loss, Tampering Alarm Events Notify NVR, send email, upload to FTP, trigger alarm output SD Card Slot Micro SD / SDHC / SDXC up to 64Gb Angle Adjustment Pan: 0~360° Tilt: 0~90° Rotate: 0~360° Power PoE class 3 (IEEE 802.3af) 12VDC +/- 10% 5.5W nominal; 7.5W IR LED on Interface 8P/8C RJ-45F for Network and PoE Power (DC 12V) Input Environmental IP66 (Weather Resistant); IK10 Vandal Resistant Operating Temperature -22 °F ~ 140 °F (-30 °C ~ 60 °C) Dimension 5.55” diameter × 3.93” high [Ø141×99.9] Other 3 axis Weight 2.2 lbs./1000g Mounting Options KA-DRJB2 Junction Box; KA-DRWM2 Wall Mount; KA-DRIC1 In Ceiling (Flush) Mount; KA-BRPM1 Pole Mount; KA-BRCM1 Corner Mount for use with KA-DRWM2
