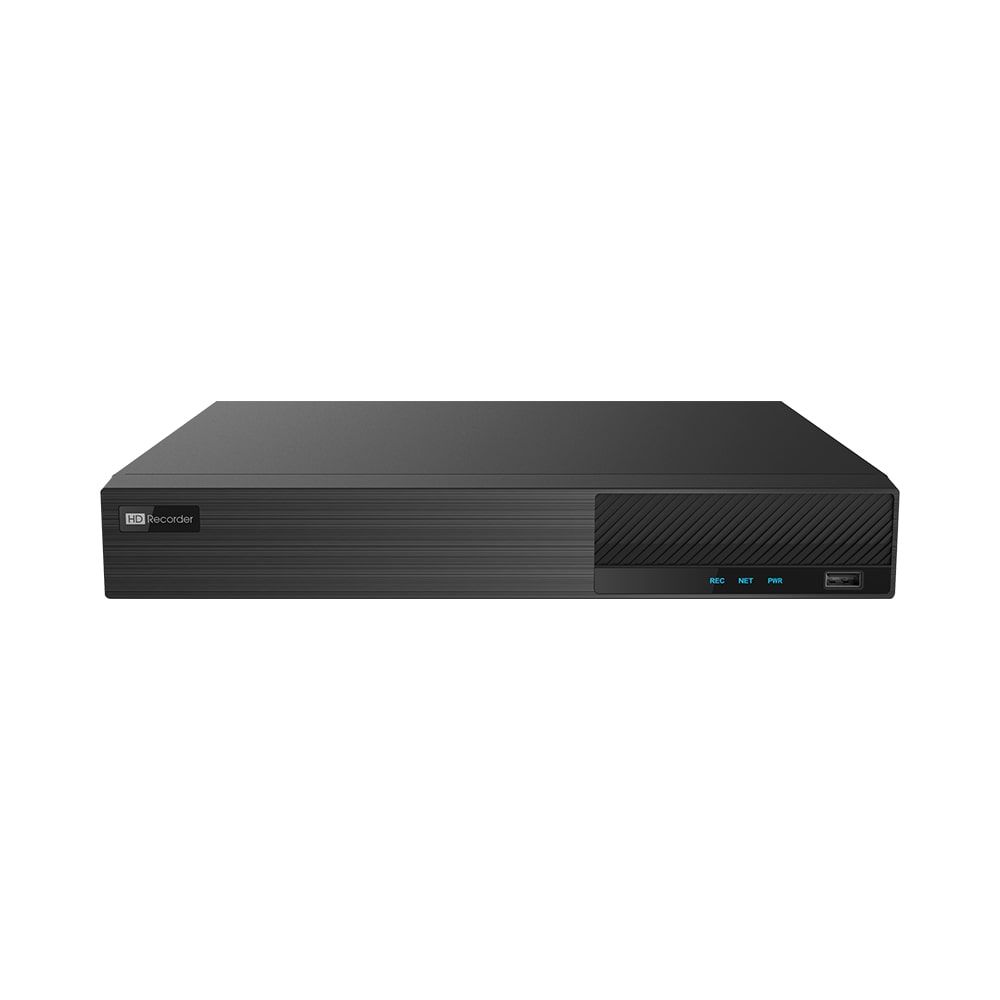

CLEAR -16CH 16PoE NVR
Networking Video Recorder(NVR), 16 Channels with 16Port PoE, Bandwidth In and Out 96/96Mbps, Supports 4K, HDMI/VGA Video Output, Supports Network Input 16 CH IPC Audio Input, 2-Way Audio Support RCA 1, Local Output Supports RCA 1, up to 2 SATA3.0, Max 10T per Hard Disk Drive(HDD). and Supports Plate Recognition, and Human and Vehicle Classification
- Supports 16CH 6MP/5MP/4MP/3MP/1080P/ 960P/720P/960H/DI/CIF IP video input
- H.265S/H.265+/H.265/H.264 coding
- Intuitive and user-friendly Graphic User Interface ( GUI ), Windows style operation by mouse
- Multi-mode recording: manual / timed / motion / sensor/ POS / AI recording
- Playback : 16CH simultaneous playback
- Search : time slice, time, event, tag and smart search
- Supports multiple VCA (Video Content Analytics) events, such as object
- Abandoned/Missing, region intrusion, tripwire, video exception, etc.
- Supports POS information overlay on live view and playback
- Express and flexible backup via USB, network and so on
- Pentaplex : preview, record, playback, backup and remote access
- DHCP, DDNS, PPPoE network protocol
- Remote control via Web Client or CMS : preview, playback, backup, PTZ and configuration
- 16 PoE network ports; PoE power supply supported
- Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with mobile device
- Multi-user online simultaneously
- Authorization management, log view and device status view
- 4K ultra high definition output, true high resolution display
- Supports NAT function and QRCode scanning by mobile phones
- Powerful mobile surveillance by smart phones with iOS and Andriod OS
| System Compression | H.265S / H.265+ /H.265 /H.264 |
|---|---|
| Operating System | Embedded Linux |
| Video Output | HDMI X 1:3840 X 2160 / 1920 X 180 / 1280 X 1024 / 1024 X 768 VGA: 1920 X 1080 / 1280 X 1024 / 1024 X 768 |
| Audio In | 16 CH IPC |
| Audio Out | RCA × 1 |
| 2 Way Audio | RCA × 1 |
| Decoding Capability | 1CH 8MP; 4CH 1080P |
| Recording Resolution | 8MP / 6MP / 5MP / 4MP / 3MP / 1080P / 1280×1024 / 960P / 720P / 960H / D1 / CIF |
| Record Stream | Dual stream recording |
| Playback Channels | Max. 16 CH |
| Playback Search | Time/Calendar Search, Event (motion) |
| Playback Smart Search | Highlighted date and time to display the channel record |
| Playback Function | Play, Pause, FF, FB; Digital zoom |
| Alarm Mode | Manual, sensor, motion, exception, smart events |
| Alarm In | Supports IPC alarm input |
| Alarm Out | Supports IPC alarm output |
| Trigger Events | Record, snap, preset, e-mail, etc. |
| Network Interface | RJ 45 1000Mbps × 1 |
| Incoming Bandwidth | 96Mbps |
| Outgoing Bandwidth | 96Mbps |
| Network Protocol | TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP, HTTP, HTTPs, 802.1x, RTSP, SNMP, ONVIF, etc. |
| Network Max. Users | 10 |
| PoE Ports | RJ 45 100 Mbps × 16 |
| Mobile | iPhone, Android |
| USB | USB 2.0 × 2 |
| Power Supply | DC 48V/3.75A |
| Power Consumption | ≤ 10W ( without HDD ) |
| Internal HDD | SATA3.0 × 2, max 10T per HDD |
| Operating Conditions | -10 ～ 50 ℃，10% ～ 90% humidity |
| Dimensions | 380 × 268 × 45 ( W × D × H ) |
