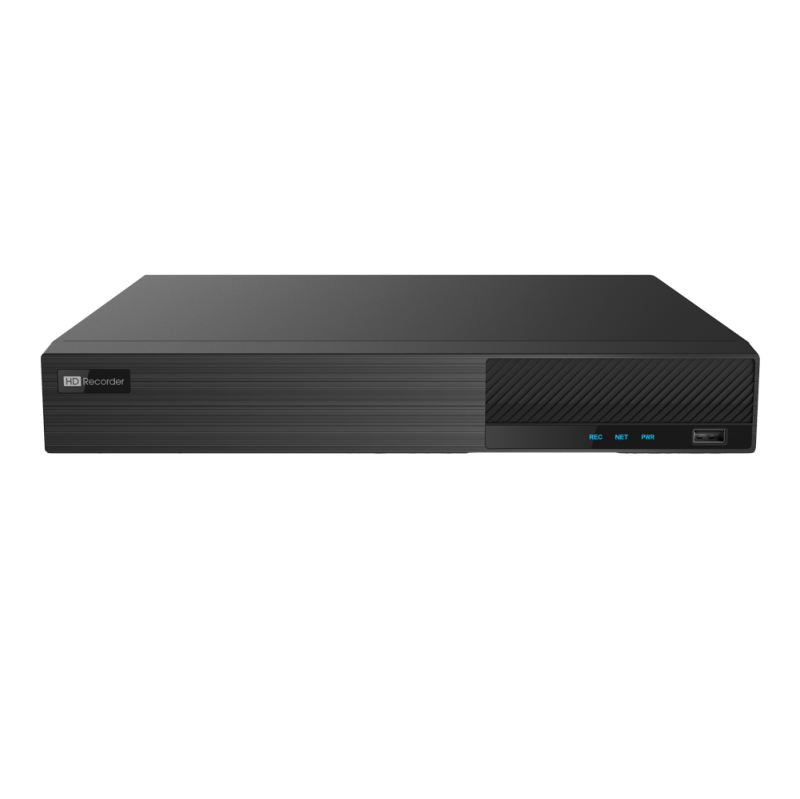

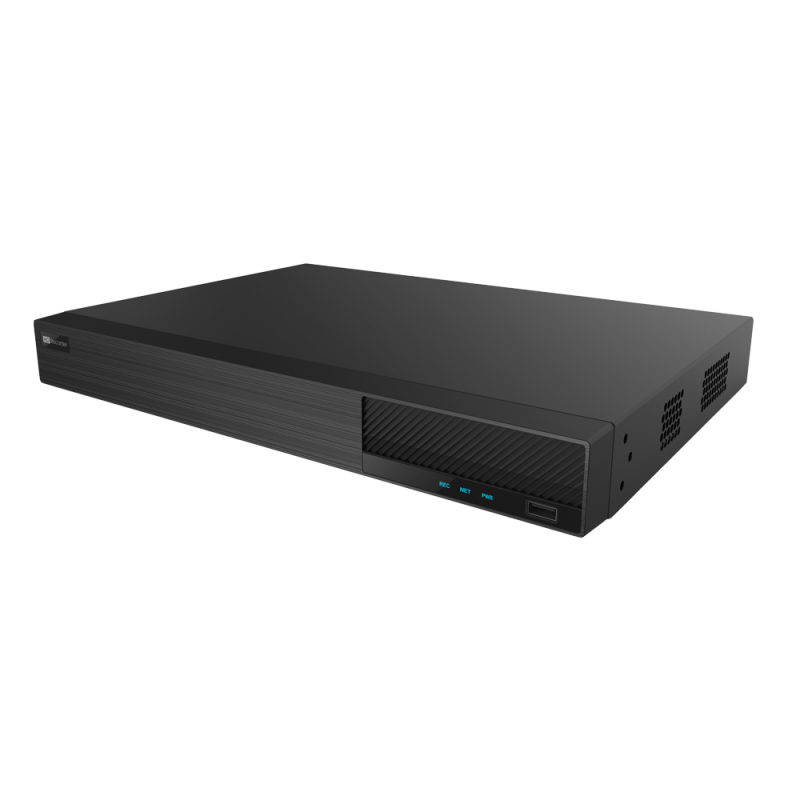

CLEAR-H.265 Clear 16CH HD POE NVR

CLEAR
SKU: AMX-9516H5NV-16P-L

Features

  • Support 16CH 8MP/ 6MP/ 5MP / 4MP / 3MP / 1080P / 960P / 720P IP input
  • Adopt standard H.265 and H.264 high profile compression format to
    get high-quality video at much lower bit rate
  • Intuitive and user-friendly Graphic User Interface ( GUI ), Windows style
    operation by mouse
  • Multi-mode recording: manual / timer / motion / sensor
  • Playback : 16 CH simultaneous playback
  • Search : time slice, time, event ( manual, sensor, motion ), tag search
  • Express and flexible backup via USB, network and so on
  • Pentaplex : preview, record, playback, backup and remote access
  • DHCP, DDNS, PPPoE network protocol and CMS supported
  • Remote control via IE or CMS : preview, playback, backup, PTZ and
    configuration

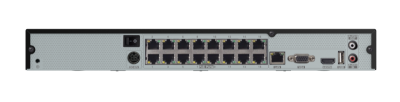

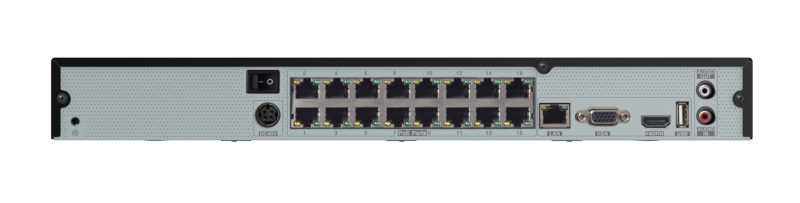

  • 16 PoE network ports, support IPC direct connection to NVR; support
    PoE power supply
  • Dual stream technology for local storage with high definition, remote
    network transmission and remote surveillance with mobile device
  • Multi-user online simultaneously
  • Authorization management, log view and device status view
  • 1080P HD output, true high resolution display
  • Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
  • Support NAT function and QRCode scanning by mobile phone and PAD
  • Powerful smart phone & Pad surveillance with iOS and Andriod OS
  • $638.00

OR

Features

  • Support 16CH 8MP/ 6MP/ 5MP / 4MP / 3MP / 1080P / 960P / 720P IP input
  • Adopt standard H.265 and H.264 high profile compression format to
    get high-quality video at much lower bit rate
  • Intuitive and user-friendly Graphic User Interface ( GUI ), Windows style
    operation by mouse
  • Multi-mode recording: manual / timer / motion / sensor
  • Playback : 16 CH simultaneous playback
  • Search : time slice, time, event ( manual, sensor, motion ), tag search
  • Express and flexible backup via USB, network and so on
  • Pentaplex : preview, record, playback, backup and remote access
  • DHCP, DDNS, PPPoE network protocol and CMS supported
  • Remote control via IE or CMS : preview, playback, backup, PTZ and
    configuration
  • 16 PoE network ports, support IPC direct connection to NVR; support
    PoE power supply
  • Dual stream technology for local storage with high definition, remote
    network transmission and remote surveillance with mobile device
  • Multi-user online simultaneously
  • Authorization management, log view and device status view
  • 1080P HD output, true high resolution display
  • Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
  • Support NAT function and QRCode scanning by mobile phone and PAD
  • Powerful smart phone & Pad surveillance with iOS and Andriod OS
More Information
System CompressionStandard H.265, H.264
Operating SystemEmbedded Linux
IP Camera Input16CH
Video Output

HDMI × 1 : 1920×1080/1280×1024/1024×768
VGA × 1 : 1920×1080/1280×1024/1024×768

Audio InRCA × 1
Audio OutRCA × 1
Recording Resolution5MP / 4MP / 3MP / 1080P / 960P / 720P
Recording ModeManual, timer, motion, sensor
Record StreamDual stream recording
Playback Channels16CH
Playback SearchTime slice / time / event / tag search
Playback Smart SearchHighlight colors to display the camera record in a certain period of time, different colors refer to different record events
Playback FunctionPlay, pause, FF, FB, digital zoom, etc.
Alarm ModeManual, sensor, motion, exception
Alarm InN/A
Alarm OutN/A
Trigger EventsRecord, snap, preset, e-mail, etc.
Network InterfaceRJ45 10 / 100 / 1000 Mbps × 1
Incoming Bandwidth160Mbps
Outgoing Bandwidth160Mbps
Network ProtocolTCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP
Network Max. UsersN/A
PoE Ports16CH
MobileiPhone, Android
RS485N/A
USBUSB 2.0 × 2
Remote ConnectionsOptional
Power SupplyDC 48V
Power Consumption≤ 16W ( without HDD )
Internal HDD2 x SATA, max 10T per HDD
e-SATAN/A
Operating Conditions-10 ~ 50 ℃,10% ~ 90% humidity
Dimensions380mm x 268mm x 52mm
    • SKU
      AMX-9516H5NV-16P-L
    • Dimensions (L x W x H)
      15 x 10.6 x 2.1 inches
  • Manufacturer
    CLEAR
  • Shipping Lead Time
    Ships Same Day
  • Number of Channels
    16 Channels
  • Recorder Type
    NVR (with POE Ports)
  • Hard Drive #1
    I will install my own hard drive, 1TB HDD, 2TB HDD, 3TB HDD, 4TB HDD, 6TB HDD
  • Remote Login Support
    No Login Support Needed, FREE Setup: Remote Access Mobile App Configuration - Motion Detection Setup
