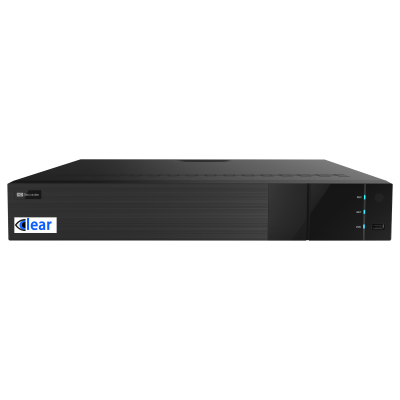

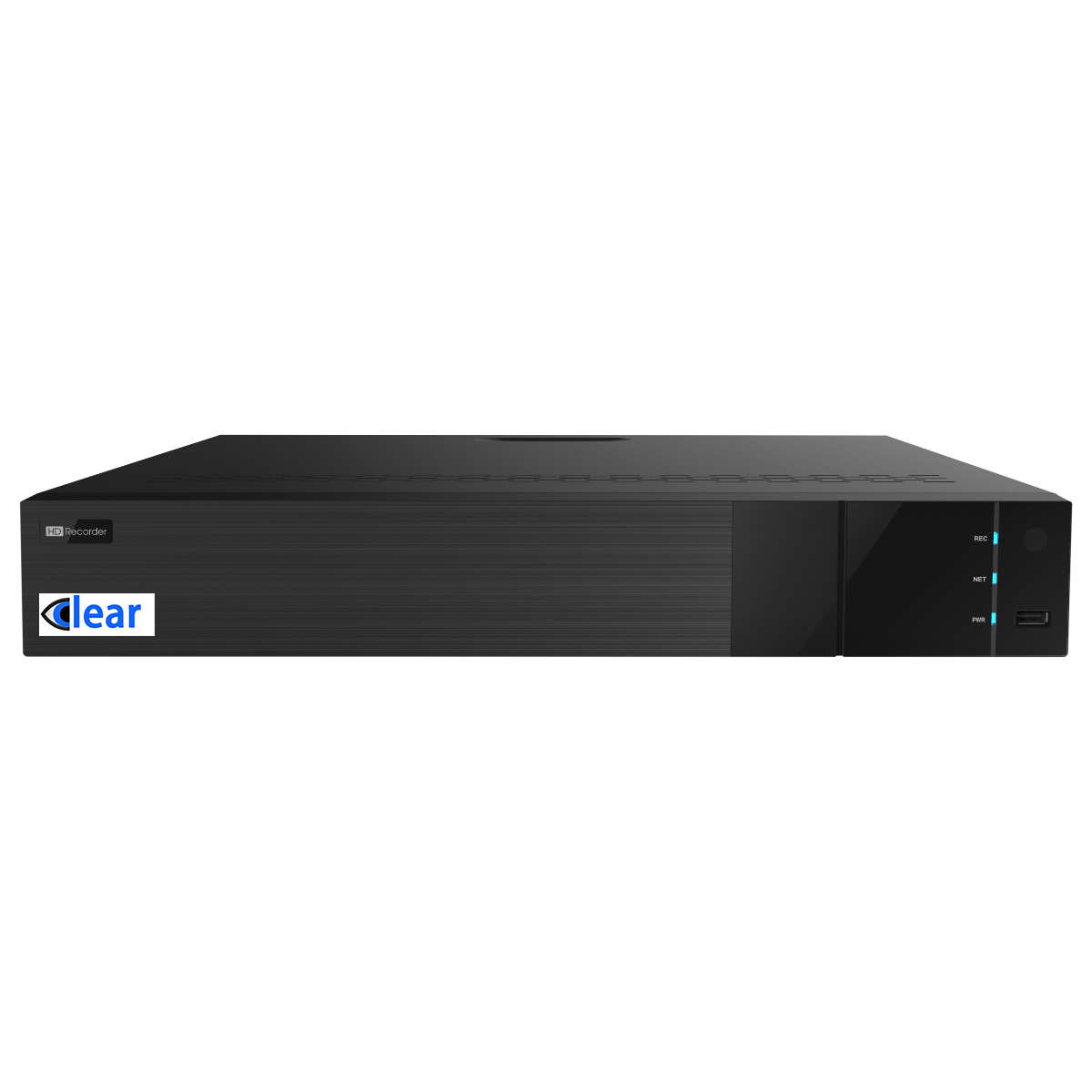

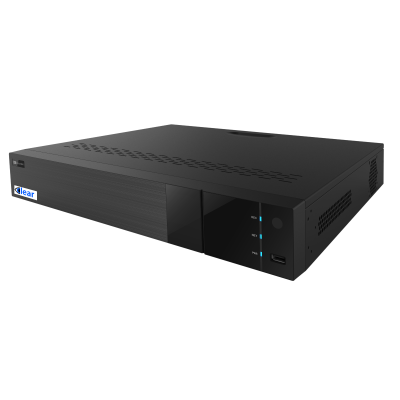

CLEAR ED9616H5NV-16P-A | 16 Channels 16PoE Face Recognition NVR
SKU: ED9616H5NV-16P-A16 Channels 16PoE Face Recognition NVR, 4K output, HDMI/VGA, 2-way Audio
Features
- Support 16 CH 8MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P IP input
- Adopt standard H.265 high profile compression format to get high-quality video at a much lower bit rate
- Intuitive and user-friendly Graphic User Interface ( GUI ), Windows style operation by mouse
- Multi-mode recording: manual / timer / motion / sensor
- Playback: 16 CH simultaneous playback
- Search: time slice, time, event, tag, smart and target database search
- Support face detection and comparison
- Express and flexible backup via USB, network and so on
- Pentaplex: preview, record, playback, backup, and remote access
- DHCP, DDNS, PPPoE network protocol and CMS supported
- Remote control via IE or CMS: preview, playback, backup, PTZ and configuration
- 16 PoE network ports, support IPC direct connection to NVR; support PoE power supply
- Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with the mobile device
- Multi-user online simultaneously
- Authorization management, log view and device status view
- 4K output, true high-resolution display
- Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
- Support NAT function and QRCode scanning by mobile phone and PAD
- Powerful smart phone & Pad surveillance with iOS and Andriod OS
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
16 Channels 16PoE Face Recognition NVR, 4K output, HDMI/VGA, 2-way Audio
Features
- Support 16 CH 8MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P IP input
- Adopt standard H.265 high profile compression format to get high-quality video at a much lower bit rate
- Intuitive and user-friendly Graphic User Interface ( GUI ), Windows style operation by mouse
- Multi-mode recording: manual / timer / motion / sensor
- Playback: 16 CH simultaneous playback
- Search: time slice, time, event, tag, smart and target database search
- Support face detection and comparison
- Express and flexible backup via USB, network and so on
- Pentaplex: preview, record, playback, backup, and remote access
- DHCP, DDNS, PPPoE network protocol and CMS supported
- Remote control via IE or CMS: preview, playback, backup, PTZ and configuration
- 16 PoE network ports, support IPC direct connection to NVR; support PoE power supply
- Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with the mobile device
- Multi-user online simultaneously
- Authorization management, log view and device status view
- 4K output, true high-resolution display
- Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
- Support NAT function and QRCode scanning by mobile phone and PAD
- Powerful smart phone & Pad surveillance with iOS and Andriod OS
System Compression | Standard H.265 / H.264 |
---|---|
Operating System | Embedded Linux |
IP Camera Input | 16 CH IPC input |
Video Output | HDMI × 1 : 3840 × 2160 / 1920 × 1080 / 1280 × 1024 / 1024 × 768 |
Audio In | 16 CH IPC audio input |
Audio Out | RCA × 1 |
2 Way Audio | RCA × 1 |
Recording Resolution | 8MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P |
Recording Mode | Manual, timer, motion, sensor |
Record Stream | Dual stream recording |
Playback Channels | Max 16 CH |
Playback Search | Time slice / time / event / tag search |
Playback Smart Search | Highlighted color to display the camera record in a certain period of time, different colors refers to different record events |
Playback Function | Play, pause, FF, FB, digital zoom, etc. |
Alarm Mode | Manual, sensor, motion, exception |
Alarm In | 8 CH local alarm input, support IPC alarm input |
Alarm Out | 4 CH |
Trigger Events | Record, snap, preset, e-mail, etc. |
Channel | 16 CH |
Face Picture Database | 16 libraries 10000 Face Pictures |
Computing Capability | 240 pictures / minute |
Face Picture Search | Search by picture is supported |
Database Management | Add, modify, delete and search face pictures |
Face Picture Adding | Add face pictures through APP, WEB and local PC |
External Face Picture Enrollment | Resolution:64 x 64 〜 1920 x 1080 Size:less than 200KB Format : jpg |
Face Picture Comparison | Support allow list and block list alarm |
Face Trace | Yes |
Map of Face Trace | Reolution:600 x 300 〜 3840 x 2160 Size:within 200KB Format : jpg |
Statistic Graph of Face Information | Bar graph, pie chart |
Statistic Mode of Face Information | Statistics by day, week, month, quarter as well as customized time period |
Network Interface | RJ45 10 / 100 / 1000 Mbps × 1 |
Incoming Bandwidth | 160Mbps |
Outgoing Bandwidth | 160Mbps |
Network Protocol | TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP |
PoE Ports | RJ 45 × 16 |
Mobile | iPhone, Android |
RS485 | RS485 × 2, connect to PTZ or keyboard |
USB | USB 2.0 × 1 , USB 3.0 × 1 ( one in the front panel and the other in the rear panel ) |
Power Supply | ATX |
Power Consumption | ≤ 15W ( without HDD ) |
Internal HDD | SATA × 4, max 8T per HDD |
Operating Conditions | -10 ~ 50 °C,10% ~ 90% humidity |
Dimensions | 440 × 390 × 70 ( W × D × H ) |
Downloads
- ManufacturerCLEAR
- Shipping Lead TimeShips Same Day
- Hard Drive #1I will install my own hard drive, 1TB HDD, 2TB HDD, 3TB HDD, 4TB HDD, 6TB HDD
- Remote Login SupportNo Login Support Needed, FREE Setup: Remote Access Mobile App Configuration - Motion Detection Setup
