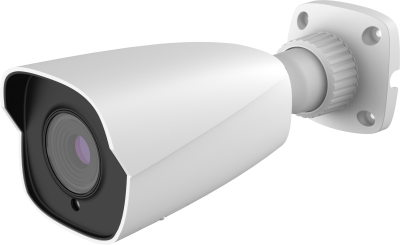

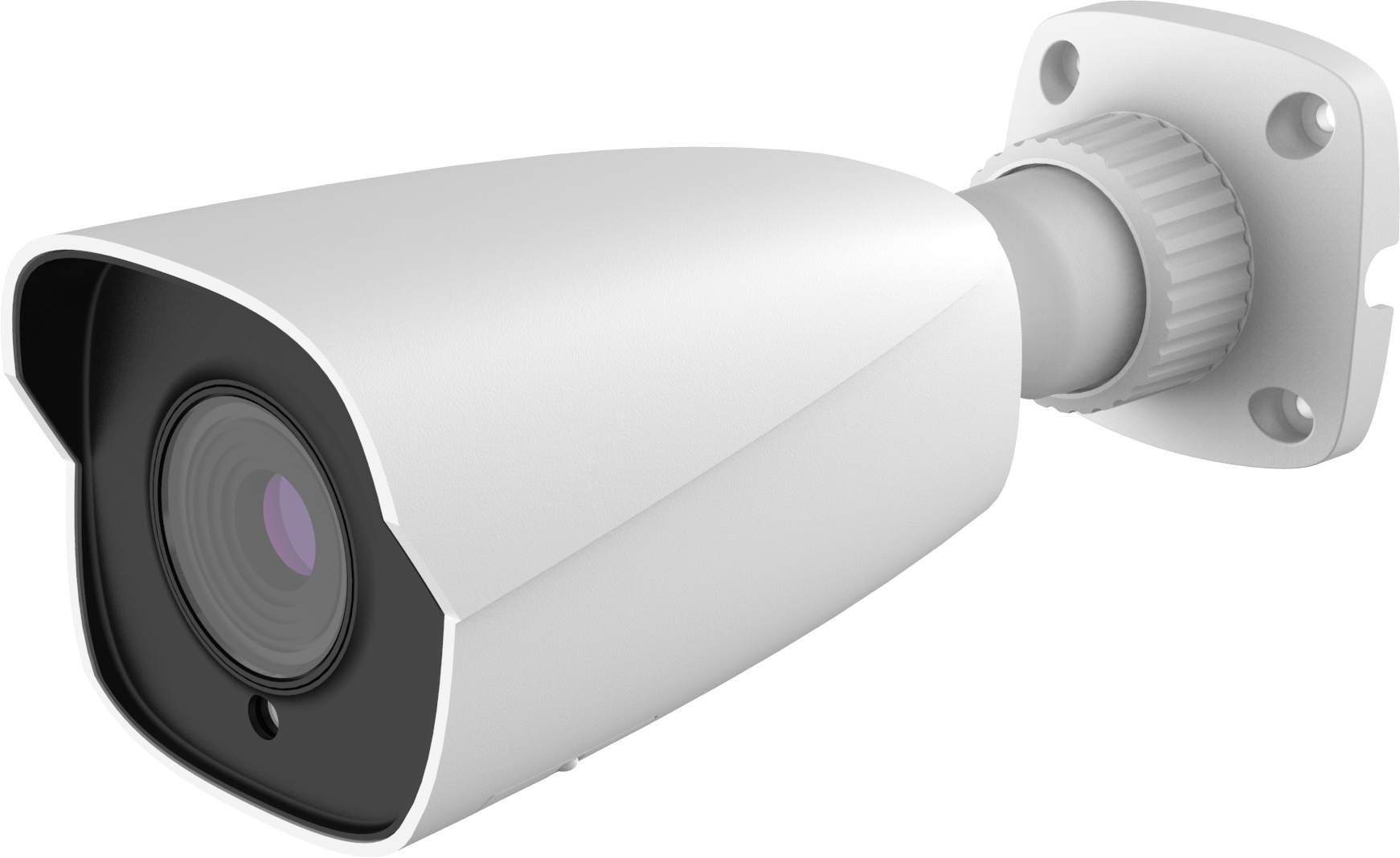

        CLEAR IP-5IR4E32/28 | 4MP Intelligent WDR Fixed Bullet Network Camera

        CLEAR
        SKU: WECCIP5IR4E32/28

        Fixed Bullet,1/3'',4MP@30FPS,2.8mm,IR(50m),3D DNR,True WDR,ROI,VCA,FD,HLC,BLC,Defog,SD Slot

        Features

        • 4MP ( 2592 × 1520 ) H.265 full real-time coding
        • Max.resolution: 2592 x 1944
        • ICR auto switch, true day/night
        • 3D DNR, Ture WDR, HLC, BLC, Defog, Smart IR and ROI coding
        • 30~50m IR night view distance
        • 1CH audio input; Hardware reset; Built-in micro SD card slot
        • DC12V/PoE power supply
        • P2P function optional
        • IP 67 ingress protection
        • Support three streams
        • Support remote monitoring by smartphone & tablets PCs with iOS and Android OS
        • Intelligent analytics
          • 33% less
          Market price:$267.00 save $89.00
        • $178.00

        OR

        Fixed Bullet,1/3'',4MP@30FPS,2.8mm,IR(50m),3D DNR,True WDR,ROI,VCA,FD,HLC,BLC,Defog,SD Slot

        Features

        • 4MP ( 2592 × 1520 ) H.265 full real-time coding
        • Max.resolution: 2592 x 1944
        • ICR auto switch, true day/night
        • 3D DNR, Ture WDR, HLC, BLC, Defog, Smart IR and ROI coding
        • 30~50m IR night view distance
        • 1CH audio input; Hardware reset; Built-in micro SD card slot
        • DC12V/PoE power supply
        • P2P function optional
        • IP 67 ingress protection
        • Support three streams
        • Support remote monitoring by smartphone & tablets PCs with iOS and Android OS
        • Intelligent analytics

        Image Sensor1 / 3 "CMOS
        Image Size2592 × 1520
        Electronic Shutter1 / 30 s ~ 1 / 100000 s
        Minimum Illumination

        0.005 lux@F1.6,AGC ON; 0 lux with IR
        0.0028 lux@F1.2,AGC ON; 0 lux with IR

        Focal Length2.8 mm @F1.6
        Angle of Viewhorizontal field of view: 100.4°
        Angle Adjustment

        Pan: 0°~360°; Tilt:0°~90°; Rotation: 0°~360°

        IR Distance30 ~ 50 m
        Wide Dynamic Range120dB
        Video CompressionSmart H.265 / H.265+ / H.265 / Smart H.264 / H.264+ / H.264 / MJPEG
        Video Resolution

        4MP ( 2592 × 1520 ), 2K ( 2560 × 1440 ), 3MP ( 2304 × 1296 ), 1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, CIF, 480 × 240

        Video Frame Rate

        Main Stream: 4MP/2K/3MP/1080P / 720P( 1 ~ 30fps; 50Hz: 1~25fps )
                               HFR mode: 1080P / 720P( 60Hz : 1 ~ 60fps; 50Hz: 1~50fps )
        Sub Stream:  720P/D1/CIF ( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps )
        Third Stream: D1/CIF/480x240 ( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps )

        Video Bitrate

        64 Kbps ~ 8 Mbps

        Day / NightTrue day / night
        BLC ModeYes
        HLCYes
        ROIEach ROI to be configured separately
        Digital Noise Reduction3D DNR
        DefogYes
        Audio CompressionG711A / U
        Audio In1CH audio input
        Smart AlarmMotion detection, SD card error, SD card full
        Face DetectionYes
        Face CapturingYes
        AI Perimeter ProtectionRegion entrance/exiting/intrusion detection(human/vehicle classification), line crossing detection(human/ vehicle classification)
        Intelligent AnalyticsObject abandoned/missing detection, video tampering detection, scene change detection, crowd density detection, heat map, human/vehicle counting, human tracking
        EthernetRJ45
        Network ProtocolUDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, 802.1x, UPnP, HTTP, HTTPs, QoS
        StorageNetwork remote storage; micro SD card storage
        Storage CardBuilt-in micro SD card slot; up to 128GB
        General Function

        Watermark, IP address filtering, video mask, heartbeat, password protection

        Network Max. UsersSupport simultaneous monitoring for up to 4 users; Support multi-stream real-time transmission
        MobileiPhone, Android
        Power SupplyDC12V/PoE
        Power Consumption< 9.5W
        Operating Temperature- 30 °C ~ 60 (-22°F~140°F) Humidity: less than 95 % (non-condensing )
        Ingress ProtectionIP67
        Dimensions217.7 × 80.5 × 80.5mm
        WeightApprox. 0.70KG
