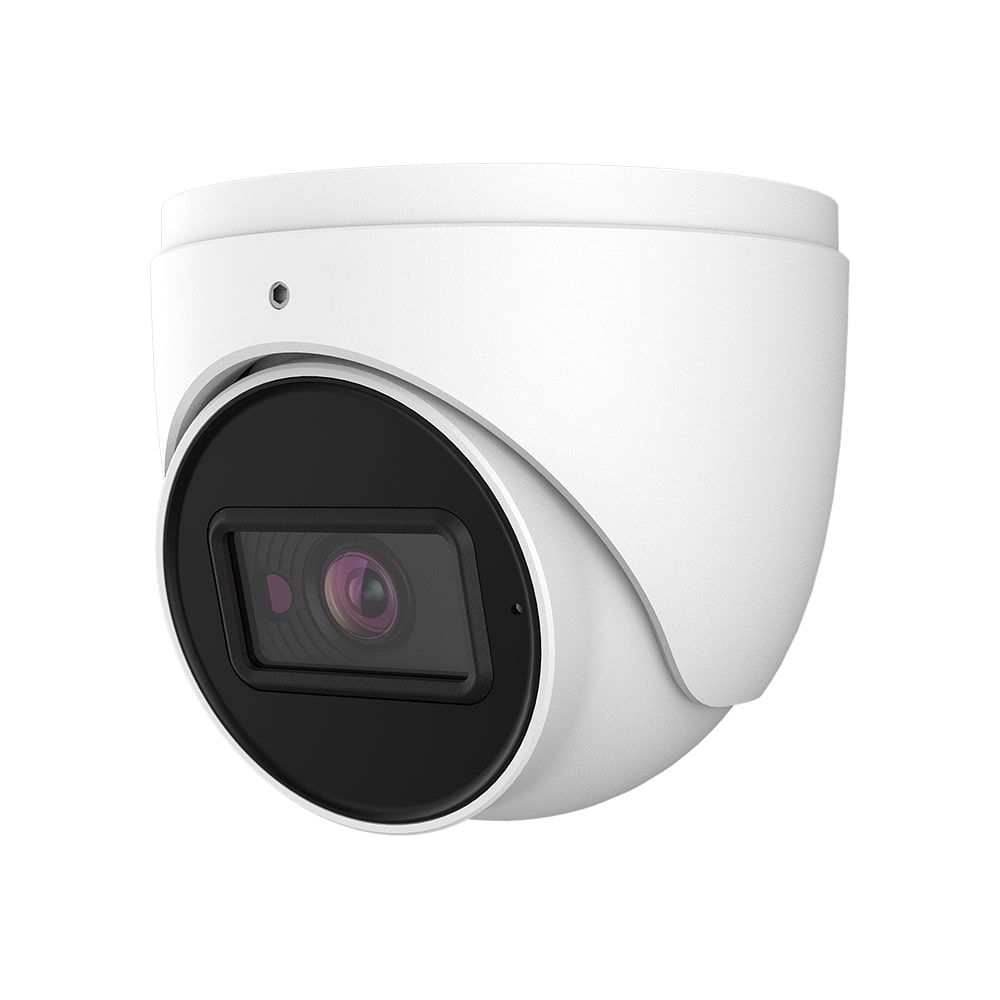

CLEAR IP-5IRD8E34/28-L | 8MP AI Turret Network Fixed Security Camera

SKU: CLEARIP-5IRD8E34/28-L

Turret Networking / Internet Protocol Security Camera (IPC), 1/2.8'', 8MP@20FPS, Fixed 2.8mm, IR(98ft), True WDR, video content analytics (VCA) for security IP camera: Line crossing, region entrance/ exiting/intrusion (human/motor vehicle/non-motor vehicle classification), Face Detection (FD), Built-in mic, Surveillance Storage: Micro SD Card, also known as a TF (Trans Flash) Card, is a small flash memory card used in security cameras. (SD) Slot up to 256 GB.

Features

Smart H.265/H.264 coding
Max. resolution: 8MP (3840 × 2160)
ICR auto switch, true day/night vision
3D DNR, true WDR, HLC, BLC and ROI coding
uo to (98ft) 30 m IR night view distance
1 CH audio input; 1 CH built-in mic
Built-in micro SD card slot, up to 256 GB
DC 12 V/PoE power supply
Support three streams
P2P function optional
IP67
Support mobile surveillance by smart phones with iOS and Android OS
Intelligent analytics
AI Perimeter Protection: Line crossing, region entrance/exiting/intrusion (human/motor vehicle/non-motor vehicle classification)
Target Counting: Line crossing human/motor vehicle/non-motor
vehicle counting: Exception Detection Scene change, video blur and video color cast detection
Face Detection: Face detection and face capture

More Information
Image Sensor	1/2.8” 8MP CMOS
Image Size	3840(H) × 2160(V)
Electronic Shutter	1/25 s ~ 1/100,000 s
Minimum Illumination	0.01 lux @ F1.2, AGC ON; 0 lux with IR 0.02 lux @ F1.6, AGC ON; 0 lux with IR
Focal Length	2.8mm
Angle of View	Horizontal: 109.7° ; Vertical: 77.2° ; Diagnal: 116.9°
Angle Adjustment	Pan:0° ~ 360°; Tilt:0° ~ 75°; Rotation:0° ~ 360°
IR Distance	Distance up to 30m (98.43ft)
Video Compression	H,265+ / H.264+ / H.265 / H.264 / MJPEG
Video Resolution	8M (3840×2160) / 6M (3072×2048) / 4M (2688×1520) / 3M (2304×1296) / 1080P (1920 ×1080) / 1.3M (1280×960) / 720P (1280×720) / D1 (704×576 / 704×480) / VGA (640×480) / CIF(352×288/352×240)
Video Frame Rate	Video Frame Rate(Main Stream) 60 Hz: 8MP/6MP @ 20 fps, 5MP/4MP/2K/3MP/1080P/720P @ 30 fps 50 Hz: 8MP/6MP @ 20 fps, 5MP/4MP/2K/3MP/1080P/720P @ 30 fps HFR mode (60 Hz): 1080P/720P @ 60 fps HFR mode (50 Hz): 1080P/720P @ 50 fps Video Frame Rate (Sub Stream) 60 Hz: 720P/D1/CIF/480×240 @ 30 fps 50 Hz: 720P/D1/CIF/480×240 @ 25 fps Video Frame Rate (Third Stream) 60 Hz: D1/CIF/480×240 @ 30 fps 50 Hz: D1/CIF/480×240 @ 25 fps
Video Bitrate	64 Kbps ~ 12 Mbps
Day / Night	ICR
Video Encode	VBR / CBR
BLC Mode	Yes
HLC	Yes
ROI	Each ROI to be configured separately
Image Settings	ROI, Saturation, Brightness, Chroma, Contrast,Wide Dynamic, Sharpen, NR,etc. adjustable through client software or web browser
Digital Noise Reduction	3D DNR
Defog	Yes
Audio Compression	G711A / U
Audio In	1CH audio input; 1CH built-in MIC
Face Detection	Face detection and face capture
Face Capturing	Face detection and face capture
AI Perimeter Protection	Line crossing, region entrance/exiting/intrusion (human/motor vehicle/non-motor vehicle classification)
Smart Event Detection	Face detection and face capture
Ethernet	RJ-45
Network Protocol	UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, ICMP, IGMP, PPPoE, DDNS, SMTP, FTP, SNMP,HTTP, 802.1x, UPnP, HTTPs, QoS
Storage	Built-in Micro SD Card (support max. 256 GB)
Network Max. Users	10
Mobile	iPhone, Android
Power Supply	DC 12 V / PoE
Power Consumption	Max 9W
Operating Temperature	-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Ingress Protection	IP67
Dimensions	Φ94.6 mm × 82.8 mm (Φ3.72” × 3.26”)
Weight	460 g (1.01 lb)

Shipping info
We deliver worldwide
Learn more
Payment methods
Learn more
Return Policy
We accept returns
Learn more
Customer Reviews
Check out our customer Reviews
Learn more

Features

Smart H.265/H.264 coding
Max. resolution: 8MP (3840 × 2160)
ICR auto switch, true day/night vision
3D DNR, true WDR, HLC, BLC and ROI coding
uo to (98ft) 30 m IR night view distance
1 CH audio input; 1 CH built-in mic
Built-in micro SD card slot, up to 256 GB
DC 12 V/PoE power supply
Support three streams
P2P function optional
IP67
Support mobile surveillance by smart phones with iOS and Android OS
Intelligent analytics
AI Perimeter Protection: Line crossing, region entrance/exiting/intrusion (human/motor vehicle/non-motor vehicle classification)
Target Counting: Line crossing human/motor vehicle/non-motor
vehicle counting: Exception Detection Scene change, video blur and video color cast detection
Face Detection: Face detection and face capture

More Information
Image Sensor	1/2.8” 8MP CMOS
Image Size	3840(H) × 2160(V)
Electronic Shutter	1/25 s ~ 1/100,000 s
Minimum Illumination	0.01 lux @ F1.2, AGC ON; 0 lux with IR 0.02 lux @ F1.6, AGC ON; 0 lux with IR
Focal Length	2.8mm
Angle of View	Horizontal: 109.7° ; Vertical: 77.2° ; Diagnal: 116.9°
Angle Adjustment	Pan:0° ~ 360°; Tilt:0° ~ 75°; Rotation:0° ~ 360°
IR Distance	Distance up to 30m (98.43ft)
Video Compression	H,265+ / H.264+ / H.265 / H.264 / MJPEG
Video Resolution	8M (3840×2160) / 6M (3072×2048) / 4M (2688×1520) / 3M (2304×1296) / 1080P (1920 ×1080) / 1.3M (1280×960) / 720P (1280×720) / D1 (704×576 / 704×480) / VGA (640×480) / CIF(352×288/352×240)
Video Frame Rate	Video Frame Rate(Main Stream) 60 Hz: 8MP/6MP @ 20 fps, 5MP/4MP/2K/3MP/1080P/720P @ 30 fps 50 Hz: 8MP/6MP @ 20 fps, 5MP/4MP/2K/3MP/1080P/720P @ 30 fps HFR mode (60 Hz): 1080P/720P @ 60 fps HFR mode (50 Hz): 1080P/720P @ 50 fps Video Frame Rate (Sub Stream) 60 Hz: 720P/D1/CIF/480×240 @ 30 fps 50 Hz: 720P/D1/CIF/480×240 @ 25 fps Video Frame Rate (Third Stream) 60 Hz: D1/CIF/480×240 @ 30 fps 50 Hz: D1/CIF/480×240 @ 25 fps
Video Bitrate	64 Kbps ~ 12 Mbps
Day / Night	ICR
Video Encode	VBR / CBR
BLC Mode	Yes
HLC	Yes
ROI	Each ROI to be configured separately
Image Settings	ROI, Saturation, Brightness, Chroma, Contrast,Wide Dynamic, Sharpen, NR,etc. adjustable through client software or web browser
Digital Noise Reduction	3D DNR
Defog	Yes
Audio Compression	G711A / U
Audio In	1CH audio input; 1CH built-in MIC
Face Detection	Face detection and face capture
Face Capturing	Face detection and face capture
AI Perimeter Protection	Line crossing, region entrance/exiting/intrusion (human/motor vehicle/non-motor vehicle classification)
Smart Event Detection	Face detection and face capture
Ethernet	RJ-45
Network Protocol	UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, ICMP, IGMP, PPPoE, DDNS, SMTP, FTP, SNMP,HTTP, 802.1x, UPnP, HTTPs, QoS
Storage	Built-in Micro SD Card (support max. 256 GB)
Network Max. Users	10
Mobile	iPhone, Android
Power Supply	DC 12 V / PoE
Power Consumption	Max 9W
Operating Temperature	-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Ingress Protection	IP67
Dimensions	Φ94.6 mm × 82.8 mm (Φ3.72” × 3.26”)
Weight	460 g (1.01 lb)
