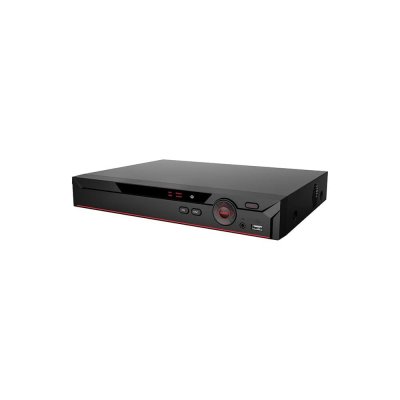

4 Channel Penta-brid 4K-N/5MP Mini 1U Digital Video Recorder XVR501H-04-4KL-I2

iMaxCamPro
SKU: WECXVR501H-04-4KL-I2

· H.265+/H.265 dual-stream video compression
· Supports HDCVI/AHD/TVI/CVBS/IP video inputs
· Max 8 channels IP camera inputs, each channel up to 8MP; Max
64 Mbps incoming bandwidth
· Perimeter Protection and SMD Plus
· Up to 2 channels video stream (analog channel ) human face recognition
· IoT & POS functionalities

More Information
System Compression+++ H.265+/H.265
Main ProcessorEmbedded Processor
Operating SystemEmbedded Linux
Video Interface1 HDMI, 1 VGA
Video Resolution4K, 6MP, 5MP, 4K-N, 4MP, 3MP, 4M-N, 1080P, 720P, 960H, D1, CIF
Multi-Screen DisplayWhen IP extension mode not enabled: 1/4 When IP extension mode enabled: 1/4/8/9
OSDYes
Recording Resolution4K, 6MP, 5MP, 4K-N, 4MP, 3MP, 4M-N, 1080P, 720P, 960H, D1, CIF
Bit Rate32 Kbps–6144 Kbps Per Channel
Recording ModeManual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval1 – 60 min (default: 60 min), Pre-record: 1 s–30 s, Post- record: 10 s–300 s
Playback Channels1/4
Playback SearchTime /Date, Alarm, MD and Exact Search (accurate to second)
Playback FunctionPlay, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup ModeUSB Device/Network
Audio In1
Audio Out1
2 Way AudioReuse audio in/Out, RCA
Trigger EventsRecording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video DetectionMotion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis
Alarm InN/A
Alarm Relay OutputN/A
Network Interface1 RJ-45 Port (100 MB)
Network Function

HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, SNMP,
UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter,
PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Supports
Dahua IP camera, DVR, NVS, etc.)

Network Max. Users128
InteroperabilityONVIF 16.12, CGI Conformant
MobileiPhone, iPad, Android
RS4851 Port, for PTZ Control
USB2 USB 2.0
RS232N/A
RS422N/A
Power SupplyDC12V/2A
Power Consumption<7W
e-SATAN/A
Operating Conditions-10°C to +55°C (+14°F to +131°F), 0–90% RH
Storage Conditions-20°C to +70°C (-4°F to +158°F) , 0–90% RH
DimensionsMini 1U, 325 mm × 257 mm × 55 mm (12.80'' × 10.11'' × 2.17'')
Weight(without HDD) 1.2 kg (2.7 lb) Gross Weight 1.9 kg (4.2 lb)
    • 33% less
    Market price:$267.00 save $89.00
  • $178.00

OR

· H.265+/H.265 dual-stream video compression
· Supports HDCVI/AHD/TVI/CVBS/IP video inputs
· Max 8 channels IP camera inputs, each channel up to 8MP; Max
64 Mbps incoming bandwidth
· Perimeter Protection and SMD Plus
· Up to 2 channels video stream (analog channel ) human face recognition
· IoT & POS functionalities

More Information
System Compression+++ H.265+/H.265
Main ProcessorEmbedded Processor
Operating SystemEmbedded Linux
Video Interface1 HDMI, 1 VGA
Video Resolution4K, 6MP, 5MP, 4K-N, 4MP, 3MP, 4M-N, 1080P, 720P, 960H, D1, CIF
Multi-Screen DisplayWhen IP extension mode not enabled: 1/4 When IP extension mode enabled: 1/4/8/9
OSDYes
Recording Resolution4K, 6MP, 5MP, 4K-N, 4MP, 3MP, 4M-N, 1080P, 720P, 960H, D1, CIF
Bit Rate32 Kbps–6144 Kbps Per Channel
Recording ModeManual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval1 – 60 min (default: 60 min), Pre-record: 1 s–30 s, Post- record: 10 s–300 s
Playback Channels1/4
Playback SearchTime /Date, Alarm, MD and Exact Search (accurate to second)
Playback FunctionPlay, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup ModeUSB Device/Network
Audio In1
Audio Out1
2 Way AudioReuse audio in/Out, RCA
Trigger EventsRecording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video DetectionMotion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis
Alarm InN/A
Alarm Relay OutputN/A
Network Interface1 RJ-45 Port (100 MB)
Network Function

HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, SNMP,
UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter,
PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Supports
Dahua IP camera, DVR, NVS, etc.)

Network Max. Users128
InteroperabilityONVIF 16.12, CGI Conformant
MobileiPhone, iPad, Android
RS4851 Port, for PTZ Control
USB2 USB 2.0
RS232N/A
RS422N/A
Power SupplyDC12V/2A
Power Consumption<7W
e-SATAN/A
Operating Conditions-10°C to +55°C (+14°F to +131°F), 0–90% RH
Storage Conditions-20°C to +70°C (-4°F to +158°F) , 0–90% RH
DimensionsMini 1U, 325 mm × 257 mm × 55 mm (12.80'' × 10.11'' × 2.17'')
Weight(without HDD) 1.2 kg (2.7 lb) Gross Weight 1.9 kg (4.2 lb)
    • SKU
      WECXVR501H-04-4KL-I2
    • Weight
      7.05 lbs
  • Manufacturer
    iMaxCamPro
  • Hard Drive #1
    I will install my own hard drive, 1TB HDD, 2TB HDD, 3TB HDD, 4TB HDD, 6TB HDD
  • Remote Login Support
    No Login Support Needed, FREE Setup: Remote Access Mobile App Configuration - Motion Detection Setup
