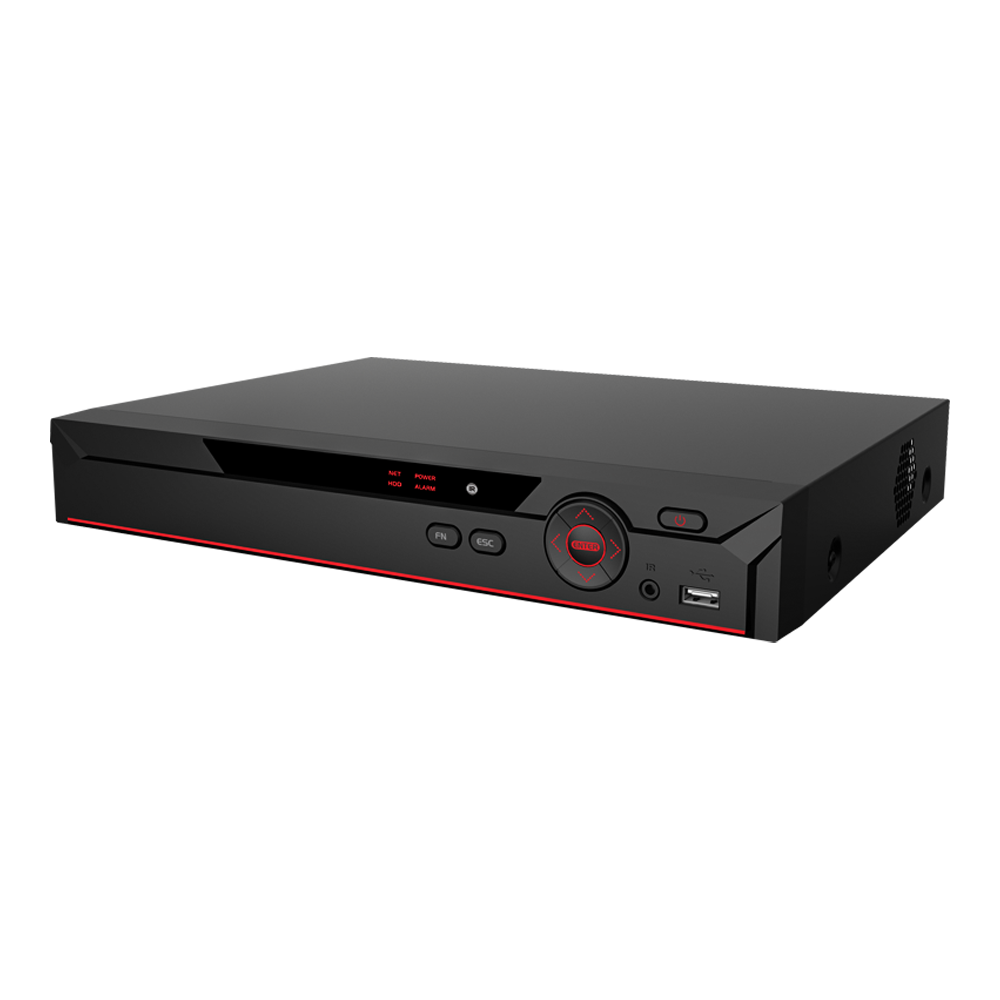

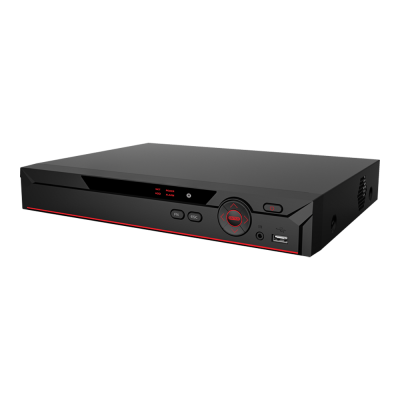

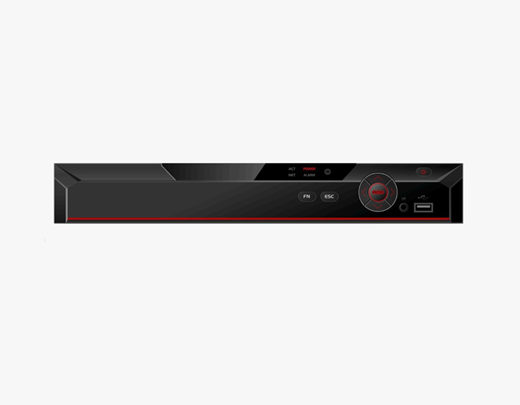

8 Channel Penta-brid 4K Mini 1U Digital Video Recorder

iMaxCamPro
SKU: WECXVR501H-08-4KL-X

8 Channel Penta-brid 4K Mini 1U Digital Video Recorder | XVR501H-08/8P-4KL-X

8 Channel Penta-brid 4K Mini 1U Digital Video Recorder, H.265+/H.265, Support HDCVI/AHD/TVI/CVBS/IP video inputs, 4K, 6MP, 4MP, 1080P@25/30fps, 1 HDMI, 1 VGA, 1 SATA, 1 USB 2.0 , 1 USB 3.0, 1 Port RS485, DC53V, Smart Search, Face Detection, Intelligent Video System

    • 26% less
    Market price:$340.99 save $87.24
  • $253.75

OR

8 Channel Penta-brid 4K Mini 1U Digital Video Recorder | XVR501H-08/8P-4KL-X

8 Channel Penta-brid 4K Mini 1U Digital Video Recorder, H.265+/H.265, Support HDCVI/AHD/TVI/CVBS/IP video inputs, 4K, 6MP, 4MP, 1080P@25/30fps, 1 HDMI, 1 VGA, 1 SATA, 1 USB 2.0 , 1 USB 3.0, 1 Port RS485, DC53V, Smart Search, Face Detection, Intelligent Video System



Features

  • H.265+/H.265 dual-stream video compression
  • Support HDCVI/AHD/TVI/CVBS/IP video inputs
  • Max. 12 channels IP camera inputs, each channel up to 8MP
  • Max. 48Mbps incoming bandwidth
  • Smart Search and Intelligent Video System
  • Total 48W output power consumption
  • Max supports 8 channels Lite series PoC cameras inputs or 4 channels Pro series PoC cameras inputs.
  • Note: HDCVI PoC system temporarily does not support balun accessing and UTP transmission.



System CompressionH.265+/H.265/H.264+/H.264
Main ProcessorEmbedded Processor
Operating SystemEmbedded Linux
Video Interface1 HDMI, 1 VGA
Video ResolutionHDMI:3840×2160, 2560×1440, 1920×1080, 1280×1024, 1280×720 VGA: 1920×1080, 1280×1024, 1280×720
Multi-Screen DisplayWhen IP extension mode not enabled: 1/4/8/9 When IP extension mode enabled : 1/4/8/9/16
HDCVI Camera Input4K, 6MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps
IP Camera Input8+4 Channel, each channel up to 8MP
OSDYes
Recording Resolution4K, 6MP, 5MP, 4K-N, 4MP, 3MP, 4M-N, 1080P, 720P, 960H, D1, CIF
Recording Frame Rate

Main stream: the 1st channel 4K(1~7fps), 6MP(1~10fps), 5MP(1~12fps), 4MP/3MP(1~15fps), others 4K-N(1~7fps), 4MP/3MP(1~15fps); 4M-N/1080P/720P/960H/D1/CIF (1~25/30fps)
Sub steram: 960H(1~15fps); D1/CIF(1~25/30fps)

Bit Rate32Kbps ~ 6144Kbps Per Channel
Recording ModeManual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Playback Channels1/4/9
Playback SearchTime /Date, Alarm, MD and Exact Search (accurate to second)
Playback FunctionPlay, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup ModeUSB Device/Network
Audio In1CH
Audio Out1CH
2 Way AudioReuse audio in/Out, RCA
Trigger EventsRecording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video DetectionMotion Detection, MD Zones: 396 (22 x 18), Video Loss, Tampering and Diagnosis
Alarm InN/A
Alarm Relay OutputN/A
Network Interface1 RJ-45 Port (1000M)
Network FunctionHTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.)
Network Max. Users128
InteroperabilityONVIF 16.12, CGI Conformant
MobileiPhone, iPad, Android
RS4851 Port, for PTZ Control
USB1 USB 2.0 , 1 USB 3.0
RS232N/A
RS422N/A
Power SupplyDC53V
Power Consumption<10W (Without HDD)
Internal HDD1 SATA Port, up to 10TB capacity
e-SATAN/A
Operating Conditions-10°C ~ +55°C (+14°F ~ +131°F), 10%~ 90% RH
Storage Conditions-20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH
DimensionsMini 1U, 325mm×255mm×55mm (12.8" x 10" x 2.2")
WeightNet Weight (without HDD): 1.35kg (2.98 lb), Gross Weight: 2.37kg (5.23 lb)





    • SKU
      WECXVR501H-08-4KL-X
    • Weight
      4.4 lbs
  • Manufacturer
    iMaxCamPro
  • Hard Drive #1
    I will install my own hard drive, 1TB HDD, 2TB HDD, 3TB HDD, 4TB HDD, 6TB HDD
  • Remote Login Support
    No Login Support Needed, FREE Setup: Remote Access Mobile App Configuration - Motion Detection Setup
