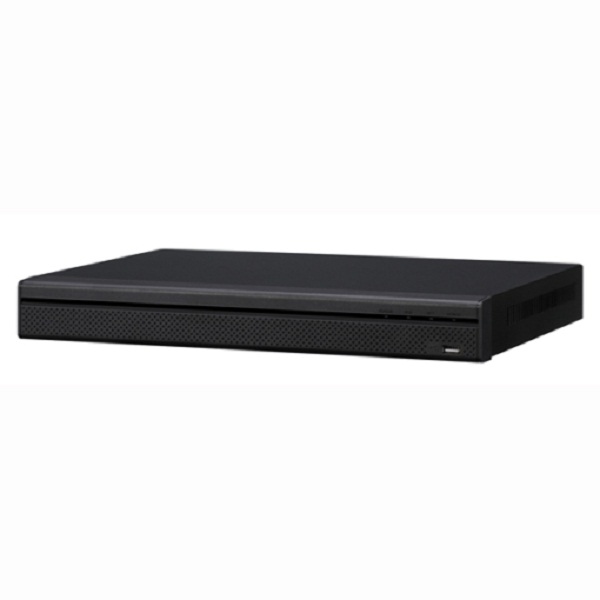

8CH Tribrid 1U 720P/1080P HD-CVI DVR, 2HDD UP TO 12TB
        • 8CH Tribrid 1U 720P/1080P HD-CVI DVR, 2HDD UP TO 12TB
        • 8CH Tribrid 1U 720P/1080P HD-CVI DVR, 2HDD UP TO 12TB

        8CH Tribrid 1U 720P/1080P HD-CVI DVR, 2HDD UP TO 12TB

        iMaxCamPro
        SKU: HVR502A-08-S2=HCVR5208A-S2
        Support HDCVI/Analog/IP Video input H.264 dual-stream video compression HCVR5204/5208/5216A-S2: All channel 720P realtime or 1080P non-realtime recording 4/8/16 channel synchronous realtime playback, GRID interface & smart search HDMI/VGA simultaneous video output Support 2 SATA HDDs up to 8TB, 2 USB2.0 3D intelligent positioning with Dahua PTZ dome camera ONVIF Version 2.4 conformance Multiple network monitoring: Web viewer, CMS(DSS/Smart PSS)&Smart Phone(DMSS)
          • 44% less
          Market price:$585.00 save $256.00
        • $329.00

        OR
        • Support HDCVI/Analog/IP Video input
        • H.264 dual-stream video compression
        • HCVR5204/5208/5216A-S2: All channel 720P realtime or 1080P non-realtime recording
        • 4/8/16 channel synchronous realtime playback, GRID interface & smart search
        • HDMI/VGA simultaneous video output
        • Support 2 SATA HDDs up to 8TB, 2 USB2.0
        • 3D intelligent positioning with Dahua PTZ dome camera
        • ONVIF Version 2.4 conformance
        • Multiple network monitoring: Web viewer, CMS(DSS/Smart PSS)&Smart Phone(DMSS)

        Model

        HCVR5204A-S2

        HCVR5208A-S2

        HCVR5216A-S2

        System

        Main Processor

        Embedded processor

        Operating System

        Embedded LINUX

        Video

        Input

        4 channel, BNC

        8 channel, BNC

        16 channel, BNC

        Standard

        HD-CVI

        1080P/720P HDCVI Camera

        Analog

        NTSC(525Line, 60f/s), PAL(625Line, 50f/s)

        IP

        1080P/720P/D1/CIF IP Camera

        Audio

        Input

        4 channel, BNC

        Output

        1 channel, BNC

        Two-way Talk

        Reuse audio input/output channel 1

        Display

        Interface

        1 HDMI, 1 BNC

        Resolution

        1920×1080, 1280×1024, 1280×720, 1024×768, 800×600

        Display Split

        1/4

        1/4/8/9

        1/4/8/9/16

        Privacy Masking

        4 rectangular zones (each camera)

        OSD

        Camera title, Time, Video loss, Camera lock, Motion detection, Recording

        Recording

        Video/Audio

        Compression

        H.264/G.711

        Record

        Rate

        Main

        Stream:

        1080P(1~15fps)/720P/960H/D1 (1~25/30fps)

        Extra

        Stream

        CIF/QCIF(1~25/30fps), D1(1~6/7fps)

        Bit Rate

        96~4096Kb/s

        Record Mode

        Manual, Schedule(Regular(Continuous), MD), Stop

        Record Interval

        1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec

        Video Detection&Alarm

        Trigger Events

        Recording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Snapshot, Buzzer

        & Screen tips

        Video Detection

        Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank

        Alarm Input

        8 channel

        8 channel

        16 channel

        Alarm Output

        3 channel

        Playback & Backup

        Sync Playback

        1/4

        1/4/8

        1/4/8/16

        Search Mode

        Time/Date, MD & Exact search (accurate to second)

        Playback Functions

        Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom

        Backup Mode

        USB Device/Internal SATA burner/Network

        Network

        Ethernet

        RJ-45 port (10/100M)

        RJ-45 port (10/100M/1000M)

        Network Functions

        HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter

        Max. User Access

        128 users

        Smart Phone

        iPhone, iPad, Android, Windows Phone

        Storage

        Internal HDD

        2 SATA ports, up to 8TB

        Auxiliary Interface

        USB Interface

        2 ports(1 Rear), USB2.0

        RS485

        1 port, For PTZ control

        General

        Power Supply

        DC12V/4A

        DC12V/5A

        Power Consumption

        15W(without HDD)

        Working Environment

        -10°C ~+55°C / 10%~90%RH / 86~106kpa

        Dimension(W×D×H)

        1U, 375mm×285mm×50mm

        Weight

        2.35KG(without HDD)

        PDF/20150608iaxqnw.pdf

          • SKU
            HVR502A-08-S2=HCVR5208A-S2
          • Weight
            5.18 lbs
        • Manufacturer
          iMaxCamPro
        • Number of Channels
          8ch
        • Recorder Type
          DVR
        • Hard Drive #1
          I will install my own hard drive, 1TB HDD, 2TB HDD, 3TB HDD, 4TB HDD, 6TB HDD
        • Remote Login Support
          No Login Support Needed, FREE Setup: Remote Access Mobile App Configuration - Motion Detection Setup
