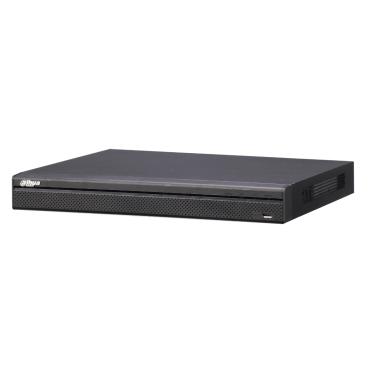

DHI-NVR52A08-8P-4KS2
Series:Pro
Compression:H.265/H.264/MJPEG/MPEG4
Channels:8
Input Bandwidth:320Mbps
Record Bandwidth:320Mbps
Video Output:1 HDMI (up to 3840 x 2160), 1 VGA
HDD:2 SATA III Ports,
Up to 10 TB per HDD
RAID:-
eSATA:1
Mini SAS:0
Audio In:One (1) Channel, RCA
Audio Out:One (1) Channel, RCA
Alarm In:4
Alarm Out:2
Network:1 Gigabit Port
POE:8 ports (IEEE802.3at/af)
USB:1 USB 3.0, 1 USB 2.0
Power:100 to 240 VAC, 50/60 Hz
<15.2W (No HDD)
IVS:Yes (All Channels)
Fisheye Dewarp:Yes
POS:Yes

Compression--NVR, XVR/DVR, IPC, PTZ IPC

Intelligent Features--NVR, DVR, IPC, PTZ IPC

NOTE:IVS features and capabilities are determined by a combination of both your IP Camera and Recorder, and will vary based on which devices you are using.

  • Tripwire

  • Intrusion

  • Abandoned
    & Missing Object

  • Scene Change

  • Auto Track

  • Smart Track

  • Thermal IVS

  • Face Detection

  • People Counting

  • Perimeter Protection

  • Heatmap

  • Traffic Enforcement

  • SMD

Interfaces

SystemUI OldWebUI OldSystemUI NewWebUI NewSmartPSSDSS Express S
SystemUI OldWebUI OldSystemUI NewWebUI NewSmartPSSDSS Express S
