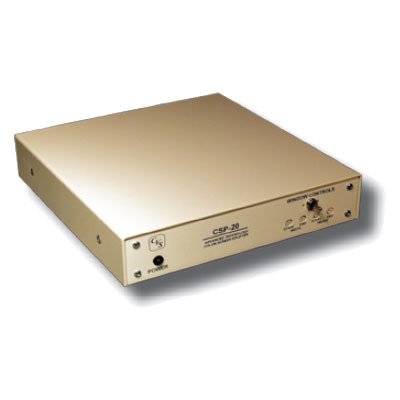

CSP-20 CVS Color analog Screen Splitter. One Camera Must Be Genlockable With Phase Adjust
This Product The CSP-20 is a 2 input, Color screen splitter that provides an unlimited split variations. The position and size of the split / window is electronically variable and the CSP-20 requires at least 1 genlockable Color or B&W camera. The CS-1600 is 1 rack unit high and has an optional rack kit for rack mounting and uses commonly available telephone handset cords to interconnect the RS-232 signals. Only one serial port is needed for multiple unit control due to buffered loop thru’s on the CS-1600’s RS-232 connections. All switcher control parameters are field selectable for ease of installation. it has Frequency Response - 30mHz +/- 0.7dB it is Gain - Unity +/-3% and Differential Gain - <0.5% it is Differential Phase Error - <0.5 degrees with Max H Tilt - <1% and Max V Tilt - <1% it has Switches - Momentary NO Push Button Switch& DC Operation - 12 to 18VDC Isolated Source It has Indicators - LED lamp for each input, power it is Remote Control - External NO contacts it has Auto Select - NO alarm Inputs
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
This Product The CSP-20 is a 2 input, Color screen splitter that provides an unlimited split variations. The position and size of the split / window is electronically variable and the CSP-20 requires at least 1 genlockable Color or B&W camera. The CS-1600 is 1 rack unit high and has an optional rack kit for rack mounting and uses commonly available telephone handset cords to interconnect the RS-232 signals. Only one serial port is needed for multiple unit control due to buffered loop thru’s on the CS-1600’s RS-232 connections. All switcher control parameters are field selectable for ease of installation. it has Frequency Response - 30mHz +/- 0.7dB it is Gain - Unity +/-3% and Differential Gain - <0.5% it is Differential Phase Error - <0.5 degrees with Max H Tilt - <1% and Max V Tilt - <1% it has Switches - Momentary NO Push Button Switch& DC Operation - 12 to 18VDC Isolated Source It has Indicators - LED lamp for each input, power it is Remote Control - External NO contacts it has Auto Select - NO alarm Inputs and Power Connector - 3.5mm it is High Freq. Boost - Type 0+/- 10dB And it is Power / Supply Hum - <63dB it has H Tilt - <1% with V Tilt - <1% it has High Freq. Boost - Typ. 0 - +10d it is Weight - 1.5lbs and Depth - 8.00” it has Size - 8.0W x 8.5D x 1.65H and it has High Freq. Boost - Type 0+/- 10dB it has Crosstalk Between CH - >60dB @ 3.58mHz it AC Operation - Use 12VDC AC Adapter With Optional Remote Control - CTS-3200 and DC Operation - 12 to 18VDC 60Hz Source and it is Power Consumption - 1 Watt and it is Power - UL Listed 12VDC Power Adapter (Supplied) and DC Power Input - 12 To 20VDC Ungrounded and Control Commands - Predefined ASCII Codes For Unit ID And Input Select and Internal Controls - H Window Start, H Window End, V Window Start, V Window End
