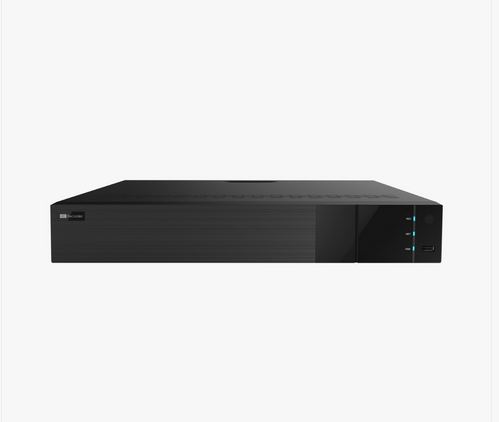

ED8216H5-D | 16CH Titanium 5MP TVI/AHD/CVI Lite Hybird DVR ED8008H5-D | 8CH TITANIUM 5MP 5-IN-1 T...

        ED8216H5-D | 16CH Titanium 5MP TVI/AHD/CVI Lite Hybird DVR ED8008H5-D | 8CH TITANIUM 5MP 5-IN-1 TVI / AHD / CVI / 960H / IP LITE HYBRID DVR

        WEC
        SKU: WECED8216H5-D
        • 8 CH TVI / AHD video input, support 5MP / 4MP / 1080P / 720P / WD1
        • 8 CH video input, support 4MP/ 1080P / 720P / WD1
        • 8 CH DVRs default support 4CH IPC 5MP / 4MP / 3MP / 1080P / 960P /720P ( Up to 12CH)
        • Adopt standard H.265 high profile compression format to get high-quality video at much lower bit rate
        • Intuitive and user-friendly Graphics User Interface ( GUI ), window style operation by mouse
        • Multi-mode recording: manual / timer / motion
        • Playback: 8CH simultaneously playback
        • Search: time slice, time, event ( manual, motion ), tag search
        • Express and flexible backup via USB, network and so on
        • Pentaplex: preview, record, playback, backup and remote access
        • DHCP, DDNS, PPPoE network protocol, IE browse and CMS supported
        • Remote control via IE or CMS : preview, playback, backup, PTZ and configuration
        • Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with mobile device
        • Multi-user online simultaneously
        • Authorization management, log review and device status review
        • 1080P output, true high resolution display
        • Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
        • Support NAT function and QRCode scanning by mobile phone and PAD
        • Powerful smart phone & Pad surveillance with iOS and Andriod OS
          • 34% less
          Market price:$716.00 save $240.00
        • $476.00

        OR
        • 8 CH TVI / AHD video input, support 5MP / 4MP / 1080P / 720P / WD1
        • 8 CH video input, support 4MP/ 1080P / 720P / WD1
        • 8 CH DVRs default support 4CH IPC 5MP / 4MP / 3MP / 1080P / 960P /720P ( Up to 12CH)
        • Adopt standard H.265 high profile compression format to get high-quality video at much lower bit rate
        • Intuitive and user-friendly Graphics User Interface ( GUI ), window style operation by mouse
        • Multi-mode recording: manual / timer / motion
        • Playback: 8CH simultaneously playback
        • Search: time slice, time, event ( manual, motion ), tag search
        • Express and flexible backup via USB, network and so on
        • Pentaplex: preview, record, playback, backup and remote access
        • DHCP, DDNS, PPPoE network protocol, IE browse and CMS supported
        • Remote control via IE or CMS : preview, playback, backup, PTZ and configuration
        • Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with mobile device
        • Multi-user online simultaneously
        • Authorization management, log review and device status review
        • 1080P output, true high resolution display
        • Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
        • Support NAT function and QRCode scanning by mobile phone and PAD
        • Powerful smart phone & Pad surveillance with iOS and Andriod OS
        System CompressionH.265 High profileMain ProcessorEmbedded ProcessorVideo CompatibilityHD-TVI / AHD / HD-CVIMax. Video Channels8CHVideo InBNC x 8IPC InIPC x 4IPC Resolution5MP / 4MP / 3MP / 1080P / 720PIPC Frame Rate25fps ( PAL ) / 30fps ( NTSC )Video InterfaceHDMI/VGA/CVBSVideo ResolutionTVI/AHD : 5MP/4MP/1080P/720P/WD1 CVI : 4MP/1080P/720P/WD1Multi-Screen DisplayN/AOSDNoAudio In8CH, RCAAudio Out1CH, RCA2 Way AudioTake up channel one as an audio inputRecording Resolution5MP Lite/4MP Lite/1080P/1080P Lite/720P/WD1Recording Frame Rate5MP Lite :10fps
        4MP Lite/1080P : 12fps (PAL)/15fps (NTSC)
        1080P Lite/720P/WD1 : 25fps (PAL)/30fps (NTSC)Recording EncodeN/ARecording QualityN/ARecording ModeManual, Timer, MotionRecording File ManagementN/APlayback Channels8CHPlayback SearchTime slice / time / event / tag searchPlayback Smart SearchHighlight colors to display the camera record in a certain period of time, different colors refer to different record eventsPlayback FunctionPlay, pause, FF, FB, digital zoom, etc.Alarm In8 CHAlarm Out2 CHAlarm ModeManual, motion, exceptionTrigger EventsRecord,snap,alarm out,e-mail, etcNetwork Bandwidth60/60Mbps(access/transfer)Network FunctionTCP/IP、PPPoE、DHCP、DNS、DDNS、UPnP、NTP、SMTPNetwork Max. UsersN/AMobileiPhone, AndroidCellphone FunctionN/ARS485RS485 × 1, connect to PTZ or keyboardUSB2 x USB2.0remoteOptionalPower SupplyDC 12V / 2APower Consumption＜12W (without HDD)Internal HDD1 x SATA (up to 8TB capacity for each disk)e-SATAe-SATA x 1Operating Conditions-10~50°C, 10%~90% (Humidity)Dimensions300mm x 248mm x 52mm (W x D x H)
          • SKU
            WECED8216H5-D
        • Manufacturer
          WEC
        • Hard Drive #2
          I will install my own hard drive, 500GB HDD, 1TB HDD, 2TB HDD, 3TB HDD, 4TB HDD
        • Hard Drive #1
          I will install my own hard drive, 1TB HDD, 2TB HDD, 3TB HDD, 4TB HDD, 6TB HDD
        • Remote Login Support
          No Login Support Needed, FREE Setup: Remote Access Mobile App Configuration - Motion Detection Setup
