DC Power Distribution Module, Auxiliary, Fused, 12/24 Volt DC, 3 Ampere, 8-Output, 4" Width x 1.5" Depth x 2.5" Height
LifeSafety Power D8/D8P
Last updated
Mar 17, 2017
8 Output, Power Distribution Module Fused (D8) or Class 2 Power Limited (D8P)

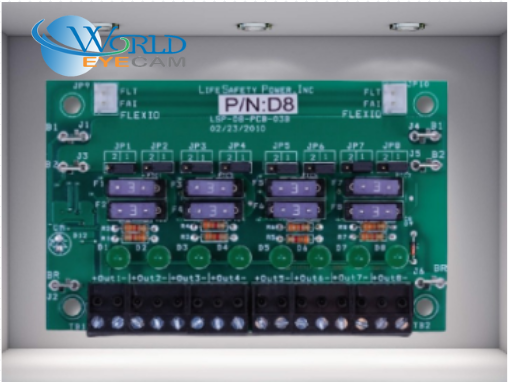

The D8 power distribution module adds 8 auxiliary power outputs to a FlexPower power supply and is typically supplied as part of a system, or purchased as an expansion piece to an existing system.
The D8 provides 8 auxiliary power outputs, each one individually protected by a fuse (D8) or or solid state circuit breaker (D8P).
Each output is programmable to either of the two voltages available when used in a FlexPower dual voltage power system, or to the continuous output or the resettable output of the power supply when used in a single voltage system.
Agency Listings/Standards
Product listed for use in LifeSafety Power equipment
USA: UL 294, UL 603, UL 864, UL 1076, UL 1481, UL 2044, UL 2572, UL 1076 FCC Part 15, Subpart B CSFM Approved Canada: ULC S318, ULC S319, ULC S527, CSA C22.2#107.1, CSA 22.2 #60950
Electrical Ratings
| Parameter | Rating |
|---|---|
| Power Outputs | 8 |
| Input Power | 12 and/or 24 VDC |
| Output Voltage (Jumpoer Select) | 12/24 VDC |
| Output Current / D8 | Fused at 3A per output |
| Output Current / D8P | Class II at 2.5A per output |
| Supports follow on modules | Yes |
| Fire Alarm Interface | Per Output |
Features
Flexibility
- FlexConnect Dual Buss Architecture for field selectable Buss 1 or Buss output
- Fire Alarm Interface (FAI) for egress lock control when used with an FPO power supply
- Multiple outputs for auxiliary power distribution or direct lock control and additional accessory power distribution modules
- Configurable fail-safe, fail-secure modes of operation when connected to FPO power supply
Output Protection
- D8 ATM style fuse: 3A/per output
- D8P Solid state circuit breaker: 2.5A/per output
Visual Indicators
- DC Out (Green LED per output
Mechanical
- Multiple modules can be daisy chained to add additional outputs
- Snap-in style mounting standoffs with fast-on connect cables for easy field installation
