Destination
IPCStorageDestination
Destination
Path
Parameter | Function |
Event Type | It includes: scheduled, motion detect and alarm. |
Local | It saved in the SD card. |
FTP | It saved in the FTP server. |
NAS | It saved in NAS disk. |

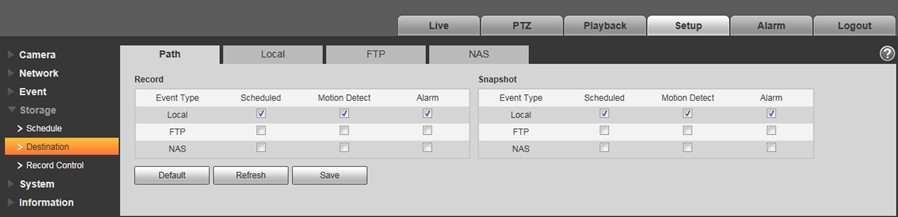

Path can config record and snapshot storage path. There are three options: Local, FTP and NAS. You can only select one mode. System can save according to the event types. It is corresponding to the three modes (general/motion/alarm) in the Schedule interface. Please check the box to enable the save functions.
Note: Only device supports SD card has local.
Local

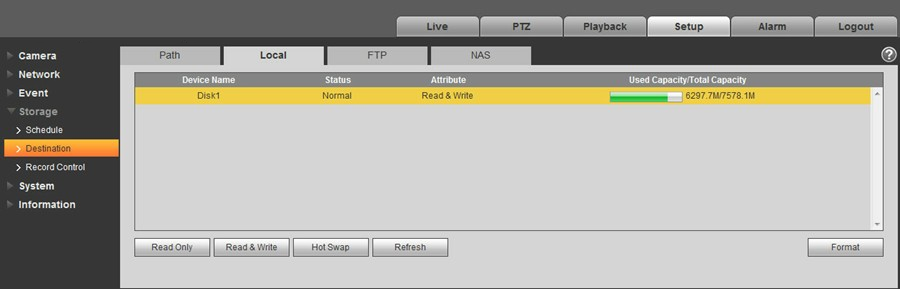

Here you can view local Micro SD card or NAS disk information. You can also operate the read-only, write-only, hot swap and format operation.
FTP
You need to check the box to enable the FTP function. When network disconnect occurred or there is malfunction. Emergency storage can save the record/snapshot picture to the local SD card.
NAS

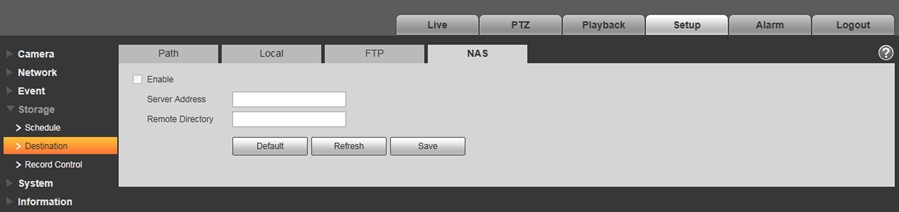

You need to check the box to enable the NAS function. Select NAS storage, fill in NAS server address and corresponding store path, then you can store video file or pictorial information in the NAS server.
Parameter | Function |
Server Address | Set IP address of NAS server. |
Remote Directory | Set storage directory, videos and pictures can be stored in to corresponding server directory. |
