DH-IPC-EBW812A0N-I


USA/IPCamera/Ultra/DH IPC EBW812A0N I

Features

  • 1/1.8” 6Megapixel progressive scan CMOS
  • H.264 &MJPEG dual-stream encoding
  • Max 30fps@6.0M(3072x2048)
  • Multiple De-wrap Mode: Original ,Panoramic, Double Panoramic,1+3,Eptz,4 pictures
  • DWDR, Day/Night(ICR), 3DNR,ROI,AWB, AGC, BLC
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
  • Max.IR LEDs Length 10m
  • 1/1 channel in/out(Built in Mic)
  • Micro SD memory,IP67,IK10,PoE

Compression

Example Photos

Firmware

You can update your device with the IP Firmware Toolkit.

Firmware Update Instructions

Firmware Update Download


Firmware Changelog

  • Build Date: 09/14/16
  • English, French, Spanish optional,English default,NTSC

Intelligent Features

Compatible Accessories

Compatible Accessories
Accessories Combo 1PFA132PFA132
Accessories Combo 2PFA100PFA100PFB302SPFB302S
Accessories Combo 3PFA100PFA100PFB300CPFB300C
Accessories Combo 4PFA100PFA100PFB302SPFB302SPFA150PFA150
Accessories Combo 5PFA100PFA100PFB300CPFB300CPFA150PFA150
Accessories Combo 6PFA132PFA132PFA152PFA152
Accessories Combo 7PFA100PFA100PFB302SPFB302SPFA152PFA152
Accessories Combo 8PFA100PFA100PFB302SPFB302SPFA151PFA151

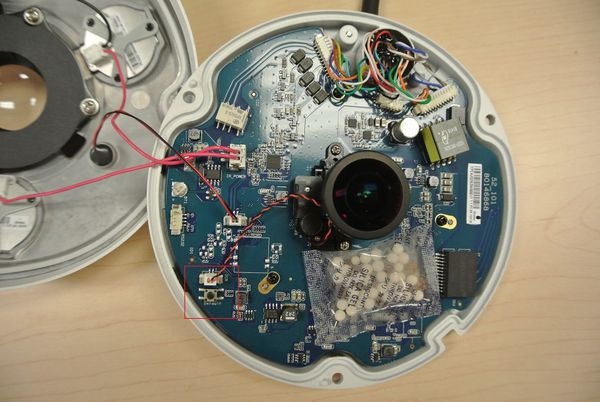

Reset Button

EBW8600N Reset Button.JPG

Troubleshooting

A dark uneven ring appears on a fish eye camera

Specifications

ModelDH-IPC-EBW812A0N(-I)
Camera
Image Sensor1/2.3” 12M progressive scan CMOS
Effective Pixels4000(H)*3000(V)
Scanning SystemProgressive
Electronic Shutter SpeedAuto/Manual 1/3~1/10000
Min. Illumination0.01Lux/F2.2(Color), 0Lux/F2.2(IR on)
S/N RatioMore than 50dB
Video OutputN/A
Camera Features
Max. IR LEDs Length10m
Day/NightAuto(ICR) / Color / B/W
Backlight CompensationBLC/ HLC/DWDR
White BalanceAuto/Manual
Gain ControlAuto/Manual
Noise Reduction3D
Privacy MaskingUp to 4 areas
Lens
Focal Length1.57mm
Max ApertureF2.2
Focus ControlManual
Angle of View185°/185°/185°
Lens TypeManual
Mount TypeBoard-in Type
Video
CompressionH.264H/MJPEG/JPEG
Resolution12M(4000×3000)/8M(2880×2880)/6M(2880×2160)/3M(2048×1536)
Frame RateMain Stream12M(1~15fps)/3M (1 ~ 30fps)
Sub StreamD1/CIF(1 ~ 30fps)
Bit Rate40Kbps~8192Kbps
Correct ModeOriginal ,Panoramic, Double Panoramic,1+3,Eptz,4 pictures
Audio
CompressionG.711a/G.711u/PCM
Interface1/1 channel In/Out(Built in Mic)
Smart Function (Only for “-I” model)
Smart detectionTripwire
Intrusion
Scene change
Missing/Abandoned
Audio detect
Face detect
Intelligent functionPeople counting
Heat map
Network
EthernetRJ-45 (10/100Base-T)
Wi-FiN/A
ProtocolHTTP,TCP,ARP,RTSP,RTP,UDP,RTCP,SMTP,FTP,DHCP,DNS,DDNS,PPPOE,IPv4/v6,SNMP,QoS,UPnP,NTP
CompatibilityONVIF,PSIA,CGI
Max. User Access20users
Smart PhoneiPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory SlotMicro SD
RS485N/A
Alarm2/1 channel In/Out
PIR Sensor RangeN/A
General
Power SupplyDC12V, PoE (802.3af)
Power Consumption<13W
Working Environment-30°C~+60°C, Less than 95%RH
Ingress ProtectionIP67
Vandal ResistanceIK10
DimensionsΦ150mm x 50.7mm
Weight0.58kg(0.86kg with packaging )
