DH-IPC-HDBW42A1FN-AS
USA/IPCamera/Pro/DH IPC HDBW42A1FN AS
DH-IPC-HDBW42A1FN-AS
| Specifications | Manual | Firmware |
|---|---|---|
Build Date: 9-7-2021 |
| Series: | Pro |
| Body: | Wedge |
| Image Sensor: | 1/2.7‐in. CMOS |
| Resolution: | 2 MP, 1920(H) x 1080(V) |
| Angle of View: | 2.8mm - Horizontal: 120° 3.6mm - Horizontal: 93° 6mm - Horizontal: 63° |
| Lens Type: | Fixed |
| Focal Length: | 2.8 mm or 3.6mm or 6mm |
| Min. Illumination: | Color: 0.01 Lux at F2.0; B/W: 0.001 Lux at F2.0; 0 Lux (IR On) |
| Day/Night: | Auto (ICR), Color, B/W |
| Max. IR Range: | Up to 20 m (66 ft) |
| WDR: | 120dB |
| Video Compression: | H.264 / MJPEG |
| Frame Rate: | 1080p / 720p at 30 fps |
| Multi-Streaming: | 3 Streams |
| IVS: | Motion, Tripwire, Intrusion, Scene Change, Abandoned/Missing Object, Facial Detection |
| ONVIF: | Yes |
| Audio In: | 1 |
| Audio Out: | 1 |
| Memory Slot: | - |
| Alarm In: | 1 |
| Alarm Out: | 1 |
| IP Rating: | 67 |
| IK Rating: | 10 |
| Operating Temp: | ‐30°C to +60°C (‐22°F to +140°F) Less than 90% RH |
| Power: | 12V DC ±25%, PoE (af Class 0) < 5 W |
| ePoE: | No |
Features
- 1/2.7” 2Megapixel progressive scan CMOS
- Support H.264&MJPEG dual codec
- 25/30fps@1080P(1920×1080)
- Smart Detection supported
- WDR(120dB), Day/Night(ICR), 3DNR,AWB,AGC,BLC,
- Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
- 3.6mm fixed lens (2.8mm, 6mm optional)
- 1/1 Alarm in/out, 1/1 audio in/out(only for -AS)
- Max. IR LEDs Length 20m
- Micro SD memory (only for -AS), IP67, IK10, PoE
Suggested Replacement
CAD Images
Compression
Interfaces
| WebUI Old | SmartPSS | DSS Express S |
|---|---|---|
 |  |  |
FOV
Example Photos
Firmware
You can update your device with the IP Firmware Toolkit.
Firmware Update Instructions
- Instructions for Firmware Update via USB
- Instructions for Firmware Update via ConfigTool
- Instructions for Firmware Update via Internet Explorer
Compatible Accessories
| Accessories Combo 1 |  PFA139 | |
| Accessories Combo 2 |  PFB204W | |
| Accessories Combo 3 | PFB204W |  PFA152 |

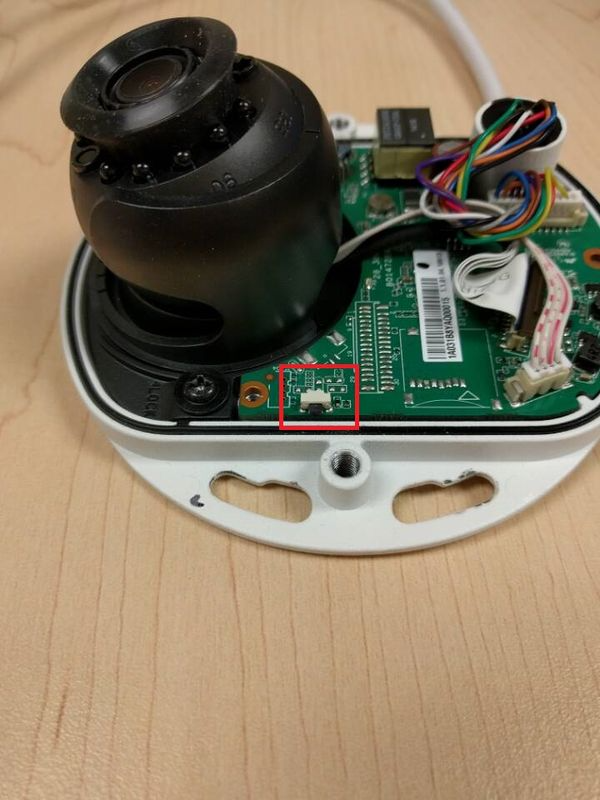

Reset Button
