DH-IPC-HDBW83A1EN-ZI


USA/IPCamera/Super/DH IPC HDBW83A1EN ZI

DH-IPC-HDBW83A1EN-ZI

float

float

DH-IPC-HDBW83A1EN-ZI
Series:Super
Image Sensor:1/2.8” 3M progressive scan CMOS
Resolution:3MP
H Field of View:99°-36°
Min. Illumination:0.005Lux/F1.4(Color), 0Lux/F1.4(IR on)
Day/Night:ICR
Max. IR Range:36 feet
WDR:140dB
Compression:H.264H/MJPEG/JPEG
FPS:30fps@3MP
Multi-Streaming:3 Streams
IVS:Tripwire
Intrusion
Scene change
Missing/Abandoned
Audio detect
Face detect
People counting
Heat map
ONVIF:2.4
Audio In:1
Audio Out:1
Built In Microphone:1
Memory Slot:Micro SD-Max 128GB
Alarm In:1
Alarm Out:1
IP Rating:67
IK Rating:10
Working Temp:-30°C~+60°C, Less than 95%RH
Power:DC12V, PoE (802.3af)
Firmware:URL

Features

  • 1/2.8" 3 Megapixel progressive scan CMOS
  • Support H.265/H.264/MJPEG dual codec
  • Smart triple streams supported
  • Max 30fps@3MP(2048x1536)
  • Ultra WDR up to 140dB
  • Ultra 3D DNR
  • Ultra Defog, ROI, EIS
  • Smart detection
  • Intelligent Function
  • 2.8 ~12mmvarifocal motorized lens
  • Max. IR LEDs length 50m
  • Micro SD memory, IP66, IK10, PoE,

CAD Images

  • E-Z Dome copy 1.JPG

Compression

FOV

  • Camera Height: 10m
    Focal Length: 2.8mm
    Target Horizontal Dist: 53.8m

  • Camera Height: 10m
    Focal Length: 12mm
    Target Horizontal Dist: 234.2m

Firmware

You can update your device with the IP Firmware Toolkit.

Firmware Update Instructions

Firmware Update Download

Firmware Changelog

  • Build Date: 07/25/16
  • English, French, Spanish optional,English default,NTSC

Intelligent Features

  • Face Detect

  • Tripwire

  • Intrusion

  • Abandoned/Missing

  • People Counting

  • Heatmap

  • Scene Change

Compatible Accessories

Compatible Accessories
Accessories Combo 1PFA138PFA138
Accessories Combo 2PFA101PFA101PFB302SPFB302S
Accessories Combo 3PFB201CPFB201C
Accessories Combo 4PFA101PFA101PFB300CPFB300C
Accessories Combo 5PFA138PFA138PFA150PFA150
Accessories Combo 6PFA101PFA101PFB302SPFB302SPFA150PFA150
Accessories Combo 7PFA101PFA101PFB300CPFB300CPFA150PFA150
Accessories Combo 8PFA101PFA101PFB302SPFB302SPFA152PFA152
Accessories Combo 9PFA138PFA138PFA151PFA151
Accessories Combo 10PFA101PFA101PFB302SPFB302SPFA151PFA151

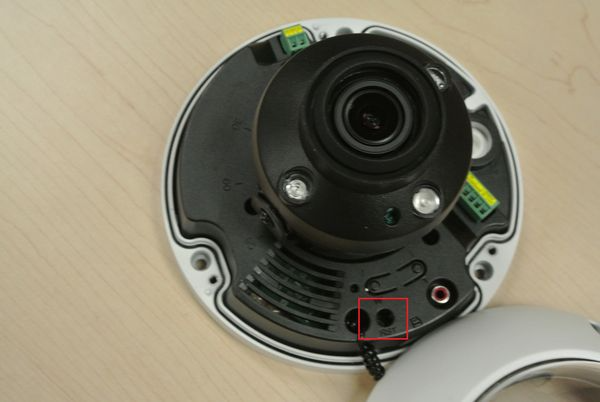

Reset Button

HDBW8231EN-Z Reset Button.JPG

Specifications

ModelIPC-HDBW83A1EN-Z(I)
Camera
Image Sensor1/2.8”3MegapixelCMOS
Effective Pixels2048(H)x1536(V)
Scanning SystemProgressive
Electronic Shutter SpeedAuto/Manual  1/3(4)~1/100000s
Min. Illumination0. 005Lux/F1.4(Color), 0Lux/F1.4(IR on)
S/N RatioMore than 50dB
Video Output1 port
Camera Features
Max. IR LEDs Length50m
Day/NightAuto(ICR)/Color/B/W
Backlight CompensationBLC / HLC / WDR (140dB)
White BalanceAuto/Sunny/Night/Outdoor/Customized
Gain ControlAuto/Manual
Noise Reduction3D
Privacy MaskingUp to 4 areas
EISSupport
Ultra DefogSupport
Lens
Focal Length2.7 -12mm motorized
Max ApertureF1.4
Focus ControlAuto
Angle of ViewH: 87°~31°
Lens TypeMotorized/Auto Iris(DC)
Mount TypeBoard-in Type
Video
CompressionH.265/H.264 / MJPEG
Resolution3M(2048×1536)/1080P(1920×1080)/720P(1280×720)/D1(704×576)/CIF(352×288)
Frame RateMain Stream3M/1080P/720P(1~30fps)
Sub StreamD1/CIF(1 ~ 30fps)
Third Stream1080P/720P/D1(1 ~ 30fps)
Bit RateH.264: 40K ~ 10Mbps
ROIUp to 4 areas
Audio
CompressionG.711a / G.711u/AAC
Interface1/1 channel In/Out
Smart Function
Smart detectionTripwire
Intrusion
Scene change
Missing/Abandoned
Audio detect
Face detect
Intelligent functionPeople counting
Heat map
Network
EthernetRJ-45 (10/100Base-T)
Wi-FiN/A
ProtocolIPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
CompatibilityONVIF, PSIA, CGI
Max. User Access20 users
Smart PhoneiPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory SlotMicro SD, Max 128GB
RS485N/A
Alarm2/1channel In/Out
PIR Sensor RangeN/A
General
Power SupplyDC12V/AC24V, PoE(802.3af)
Power ConsumptionMax 12W
Working Environment-30°C~+60°C, Less than 90%RH
Ingress ProtectionIP67
Vandal ResistanceIK10
DimensionsΦ159mm×117.9mm
Weight0.8kg
