DH-IPC-HF812A0EN
USA/IPCamera/Ultra/DH-IPC-HF812A0EN
DH-IPC-HF812A0EN
| Specifications | Quick Start Guide | Manual | Firmware |
|---|---|---|---|
Build Date: 12-27-2016 |
| Series: | Ultra |
| Image Sensor: | 1/1.7” 12M Exmor R CMOS |
| Resolution: | 4000x3000 |
| H Field of View: | - |
| Min. Illumination: | 0.05Lux/F1.2(Color) & 0.005Lux/F1.2(B/W) |
| Day/Night: | ICR |
| Max. IR Range: | - |
| WDR: | DWDR |
| Compression: | H.264H/MJPEG/JPEG |
| FPS: | 20fps@12MP; 30fps@4K |
| Multi-Streaming: | 3 Streams |
| IVS: | - |
| ONVIF: | 2.4 |
| Audio In: | 1 |
| Audio Out: | 1 |
| Built In Microphone: | 1 |
| Memory Slot: | Micro SD-Max 128GB |
| Alarm In: | 2 |
| Alarm Out: | 1 |
| IP Rating: | - |
| IK Rating: | - |
| Working Temp: | -20°F to 140°F |
| Power: | DC12V/ac24v, PoE (802.3af), Max 8W |
| Firmware: | URL |
Features
- Max 15fps@12MP (4000x3000)
- True Day/Night
- DWDR
- Defog, ROI, EIS
- 2/1 Alarm in/out, 1/1 Audio in/out, Built in Mic
- Intelligent Video System
- Onboard Storage
- 1/1.7" 12 Megapixel progressive scan CMOS
- Support H.264/MJPEG dual codec
- Smart triple streams supported
- Auto back focus
- 100/1000M Base-T Ethernet
EOL: End of Life
EOL Date: 7/5/2017
Suggested Replacement
CAD Images
Compression
Firmware
You can update your device with the IP Firmware Toolkit.
Firmware Update Instructions
- Instructions for Firmware Update via USB
- Instructions for Firmware Update via ConfigTool
- Instructions for Firmware Update via Internet Explorer
Compatible Accessories
| Accessories Combo 1 |  PFA122 |  PFB110W | |
| Accessories Combo 2 |  PFB121W |  PFA121 | |
| Accessories Combo 3 | PFB110W | ||
| Accessories Combo 4 | PFB121W | ||
| Accessories Combo 5 | PFB110W | ||
| Accessories Combo 6 | PFB110W | PFA122 |  PFA150 |
| Accessories Combo 7 | PFB121W | PFA121 | PFA150 |
| Accessories Combo 8 | PFB110W | PFA122 |  PFA151 |
| Accessories Combo 9 | PFB121W | PFA121 | PFA151 |

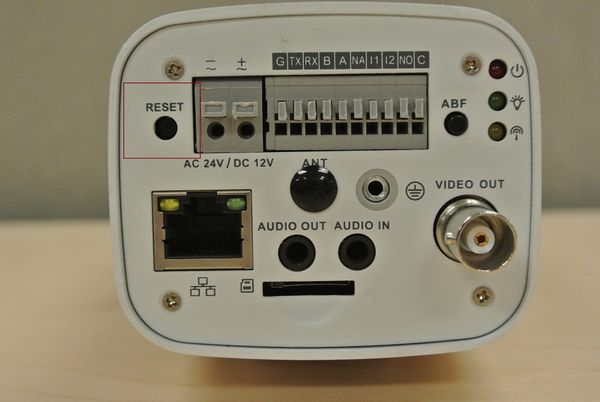

Reset Button
