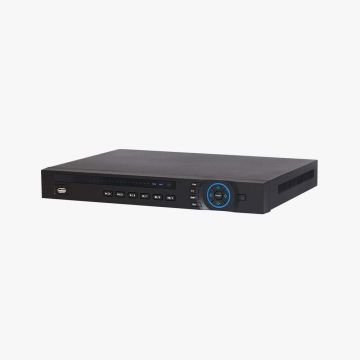

16 Channel 2 HDD 8PoE 4K & H.265 Up to 12MP Resolution Network Video Recorder

WEC
SKU: WECNVR5216-8P-4KS2E

> Smart H.265+/H.265/Smart H.264+/H.264/MJPEG
> Max 320Mbps Incoming Bandwidth
> Up to 12MP Resolution for Preview and Playback
> HDMI/VGA simultaneous video output
> 1-8 PoE Ports Support 800m ePoE & EoC

    • 50% less
    Market price:$1196.00 save $598.00
  • $598.00

OR

> Smart H.265+/H.265/Smart H.264+/H.264/MJPEG
> Max 320Mbps Incoming Bandwidth
> Up to 12MP Resolution for Preview and Playback
> HDMI/VGA simultaneous video output
> 1-8 PoE Ports Support 800m ePoE & EoC

System Overview

Dahua new NVR5000-4KS2 network video recorder delivers excellent performance and high recording quality that is ideally suitable for IP video surveillance applications. This professional NVR adopts powerful processor, providing the capability of 4K resolution processing for applications where image details are highly required. Additionally, the NVR can be served as edge storage, central storage or backup storage with an intuitive shortcut operation menu for remote management and control.

Due to its easy-to-install design, the NVR is ideal for a wide range of applications such as public safety, water conservancy, transportation, city centers, education, and financial institutions.

The NVR is compatible with numerous third-party devices, which make it the perfect solution for surveillance systems that work independently of video management system (VMS). It features an open architecture that supports for multi-user access and is compatible with ONVIF 2.4 protocol, enabling interoperability with 4K cameras.

Functions

Smart H.265+

Smart H.265+ is the optimized implementation of the H.265 codec that uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ technology reduces bit rate and storage requirements by up to 70% when compared to standard H.265 video compression.

ePoE & EoC

The NVR supports 800m ePoE and EoC technology for use in a broad range of application scenarios. ePoE technology simplifies the network structure of long-range surveillance projects, eliminating the requirement for extra network repeater devices, making the system more reliable and easy to deploy. EoC technology makes it possible to upgrade existing systems to high definition IP surveillance while using existing coax cables.

Smart Fan

The NVR is equipped with a smart fan to achieve high cooling efficiency. It automatically adjusts fan speed according to CPU and ambient temperature. The fan is long-lasting and low noise, reducing maintenance costs and improving the user experience.

Easy4ip The Easy4ip app is available on the iOS App Store and Google Play. It makes surveillance easy and simple, allowing you to remotely access NVR devices, view live video, receive event push notifications, and search for recorded videos from an iPhone, iPad, or Android phone at anytime from virtually anywhere!

Fisheye Dewarping Fisheye dewarping solves the problem of distortion in the circular panoramic view. The NVR offers various dewarping modes for different installations and configurations that enhance the video, in both live or playback modes. Each dewarping mode offers options to adjust each scene.

ANPR

Automatic Number Plate Recognition available for convenient entrance/ exit management. Support license plate recognition(working with Dahua ITC camera), black/white list import/export, add/delete B/W list number, search result from recorded video.

Point of Sale (POS)

Ideal for grocery and retail stores, the optional POS solution allows the NVR to receive a POS transaction via corresponding video. This feature allows merchants to analyze specific transactions via the Fuzzy search algorithm.

Automatic Network Replenishment (ANR) Technology Network Video Recorders with the ANR function automatically store video data on an IP camera SD card when the network is disconnected. After recovery of the network, the NVR automatically retrieves the video data stored on the camera.



System

Main Processor

Quad-core embedded processor

Operating System

Embedded LINUX

Audio and Video

IP Camera Input

16/32 Channel

Two-way Talk

1 Channel Input, 1 Channel Output, RCA

Display

Interface

1 HDMI, 1 VGA

Resolution

HDMI: 3840 × 2160 , 1920 × 1080 , 1280 × 1024,

1280 × 720 , 1024 × 768

VGA: 1920 × 1080 , 1280 × 1024,

1280 × 720 , 1024 × 768

Decoding Capability

4-ch@8MP(30fps), 16-ch@1080P(30fps)

Multi-screen Display

16CH: 1/4/8/9/16

32CH: 1/4/8/9/16/25/36

OSD

Camera title, Time, Camera lock, Motion detection, Recording

Recording

Compression

Smart H.265+/H.265/Smart H.264+/H.264/MJPEG

Resolution

12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P, D1 etc.

Bit Rate

16Kbps ~ 20Mbps Per Channel

Record Mode

Manual, Schedule (Regular, MD(Motion Detection) , Alarm, IVS), Stop

Record Interval

1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec

Video Detection and Alarm

Trigger Events

Recording, PTZ, Tour, Alarm Out, Video Push, Email, Snapshot, Buzzer and Screen Tips

Video Detection

Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Tampering

Alarm input

4 Channel

Relay Output

2 Channel

Playback and Backup

Sync Playback

1/4/9/16

Search Mode

Time /Date, Alarm, MD and Exact Search (accurate to second)

Playback Function

Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Backup Selection, Digital Zoom

Backup Mode

USB Device/Network

Third-party Support

Third-party Support

Arecont Vision, Airlive, AXIS, Canon, Dynacolor, JVC, LG, Panasonic, Pelco, PSIA, Samsung, Sanyo, Sony, Watchnet and more

Network

Interface

1 RJ-45 Ports (10/100/1000Mbps)

PoE

16 ports (IEEE802.3af/at)

1-8 ports support ePoE & EoC

Network Function

HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, IP Search (Support Dahua IP camera, DVR, NVS, etc.), Easy4IP

Max. User Access

128 users

Smart Phone

iPhone, iPad, Android

Interoperability

ONVIF 2.4, SDK, CGI

Storage

Internal HDD

2 SATA III Ports, Up to 10 TB capacity for each HDD

eSATA

N/A

Auxiliary Interface

USB

2 USB Ports (1 Rear USB 3.0 , 1 Front USB 2.0 )

RS232

1 Port, for PC Communication and Keyboard

RS485

1 Port, for PTZ control

Electrical

Power Supply

Single, AC100V ~ 240V, 50 ~ 60 Hz

Power Consumption

NVR: <15.2W (Without HDD)

PoE: Max 25.5W for single port

130W total rated power, 80% control for protection

Fan

Smart fan, automatically adjust running speed

Environmental

Operating Conditions

-10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa

Storage Conditions

-20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH

Construction

Dimensions

1U, 375mm x 326.5mm x 53mm ;

(14.8" x 12.9" x 2.1")

Net Weight

2.7kg (6.0 lb) (without HDD)

Gross Weight

4kg (8.8 lb) (without HDD)

Certifications

CE

EN55032, EN55024, EN50130-4, EN60950-1

FCC

Part 15 Subpart B, ANSI C63.4-2014

UL

UL 60950-1

Datasheet

User Manual

User Manual

Drawings

Drawings

    • SKU
      WECNVR5216-8P-4KS2E
    • Weight
      6 lbs
  • Manufacturer
    WEC
  • Recorder Type
    NVR (with POE Ports)
  • Hard Drive Bay 1
    I Will Install My Own Hard Drive, 1TB HDD, 2TB HDD, 3TB HDD, 4TB HDD, 6TB HDD, 8TB HDD, 10TB HDD
  • Hard Drive Bay 2
    I Will Install My Own Hard Drive, 1TB HDD, 2TB HDD, 3TB HDD, 4TB HDD, 6TB HDD, 8TB HDD, 10TB HDD
  • Hard Drive #1
    I will install my own hard drive, 1TB HDD, 2TB HDD, 3TB HDD, 4TB HDD, 6TB HDD
  • Remote Login Support
    No Login Support Needed, FREE Setup: Remote Access Mobile App Configuration - Motion Detection Setup
