DHI-NVR58A32-4KS2
USA/NVR/Pro/DHI NVR58A32 4KS2
DHI-NVR58A32-4KS2
| Specifications | Manual | Firmware |
|---|---|---|
Build Date: 11-15-2022 |
Front Panel
NVR42-4K/42-8P-4K/44-4K/48-4K Series

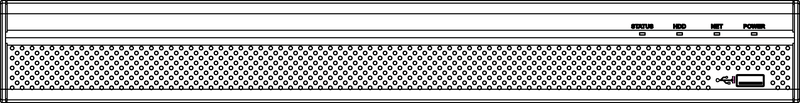

The NVR42-4K/42-8P-4K/44-4K series front panel is shown below:
The NVR48-4K series front panel is shown below.
Icon | Name | Function |
STATUS | Status indicator light | The blue light is on when the device is malfunction. |
HDD | HDD status indicator light | The blue light is on when the HDD is malfunction. |
NET | Network status indicator light | The blue light is on when the network connection is abnormal. |
POWER | Power status indicator light | The blue light is on when the power connection is OK. |
USB2.0 port | Connect to peripheral USB 2.0 storage device, mouse, burner and etc. |
Back Panel
NVR48/48-16P Series
The NVR48 series rear panel is shown as below.

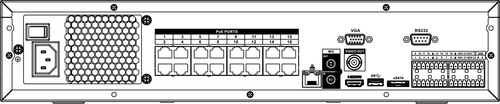

The NVR48-16P series rear panel is shown as below.
