DHI-VTO4202F-P-S2
Video Intercom/Products/DHI-VTO4202F
DHI-VTO4202F Series
The iMaxCamPro Intercom Modular System is a complete intercom solution that offers full customization of the entire system. This intercom system starts with a 2 MP outdoor video intercom module that offers a wide-angle view lens, high-resolution images even in dark environments, and two-way talk. Then, add optional modules that offer door access capability (card reader, fingerprint reader, and keypad), call buttons, information text display, and status light indicators. The system also offers optional accessories to flush-or surface-mount a two-or three-module intercom system
Note: Calling to DMSS will require a custom firmware. Please contact Sales or Technical Consultant in order to place the order for the License. Model No: VTO-DMSS (Each room will require 1 VTO-DMSS license. 40 room can support up to 5 users. Over 40 rooms will only support 2 users per room)
| Modular Intercom Components |
|---|
| DHI-VTO4202F-P-S2: 2 MP Outdoor Video Intercom (Required) DHI-VTO4202F-MB5: Five-button Call Panel DHI-VTO4202F-MF: Fingerprint Reader DHI-VTO4202F-MK: Keypad DHI-VTO4202F-ML: Status Light Panel DHI-VTO4202F-MN: Blank Panel DHI-VTO4202F-MR: IC Card Reader DHI-VTO4202F-MS: Information Text Display |
| Specifications | Quick Start Guide | Manual | Firmware |
|---|---|---|---|
Build Date: 08-13-2022 |
Features
- 2 MP Wide Angle Camera with Night Vision
- Built-in Microphone with Two-way Talk
- Records Call Sessions from the Indoor Monitor
- Access Control Supports Two Locks
- Performs Remote Door Unlock
- Compatible with Two-wire or RJ45 Connection
- Supports Secure Password Entry
- Anodized Aluminum Panel can be Surface- or Flush-mounted
- Fully Customizable System
- IP65 Ingress Protection and IK07 Vandal Resistance\
- Support up to 200 VTH
Intercom Modules
| Model | Function | Product Image | Specifications |
|---|---|---|---|

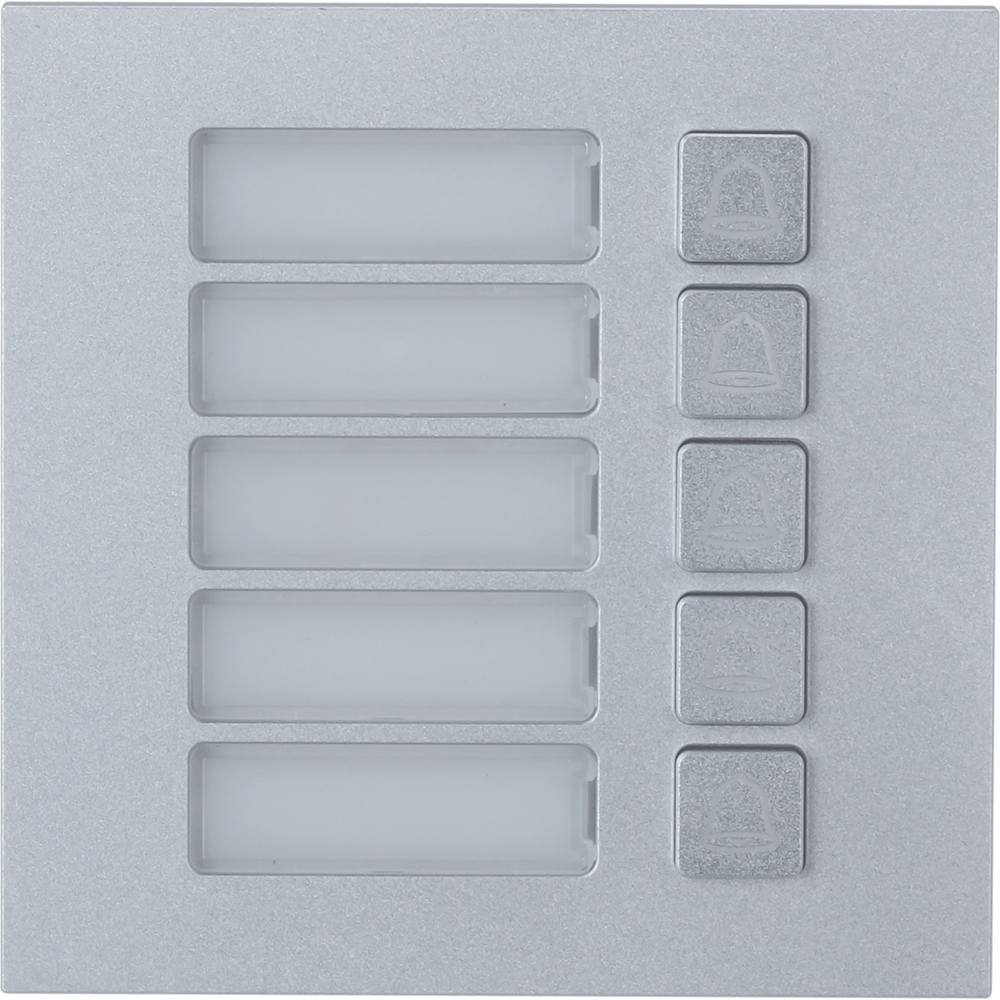

| DHI-VTO4202FMB5 | Five-button Call Panel |  | Maximum 8x 5 button modules supported per 1 VTO (40 buttons max). Buttons: Mechanical, Metal Power Supply: 5 VDC (Provided with power by other modules) Power Consumption: 1 W Operating Temperature: –20°C to +60°C (–4°F to +140°F ) Operating Humidity: 10% to 90%, Relative Ingress Protection: IP65 Vandal Resistance: IK07 Size: Full Panel |

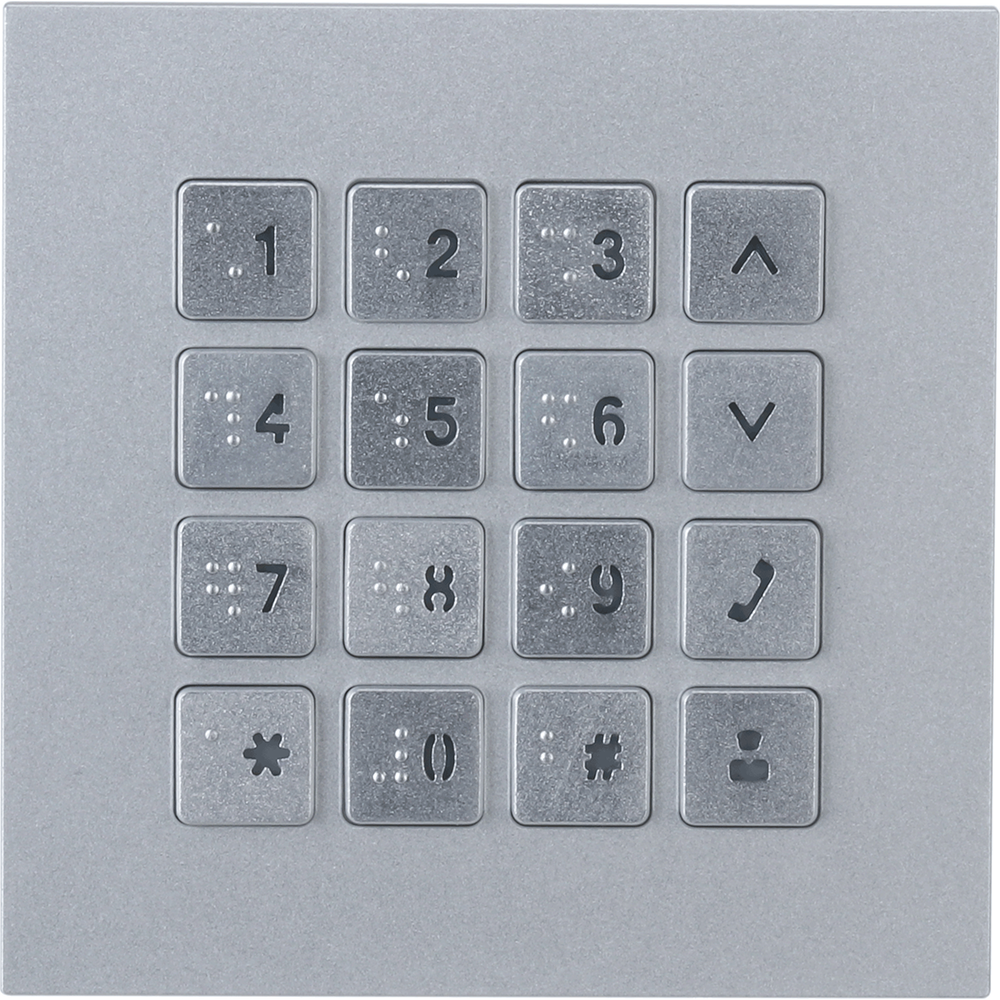

| DHI-VTO4202FMK | Keypad |  | Buttons: Mechanical, Metal, Backlight Power Supply: 5 VDC (Provided with power by other modules) Power Consumption: 1 W Operating Temperature: –20°C to +60°C (–4°F to +140°F ) Operating Humidity: 10% to 90%, Relative Ingress Protection: IP65 Vandal Resistance: IK07 Size: Full Panel |

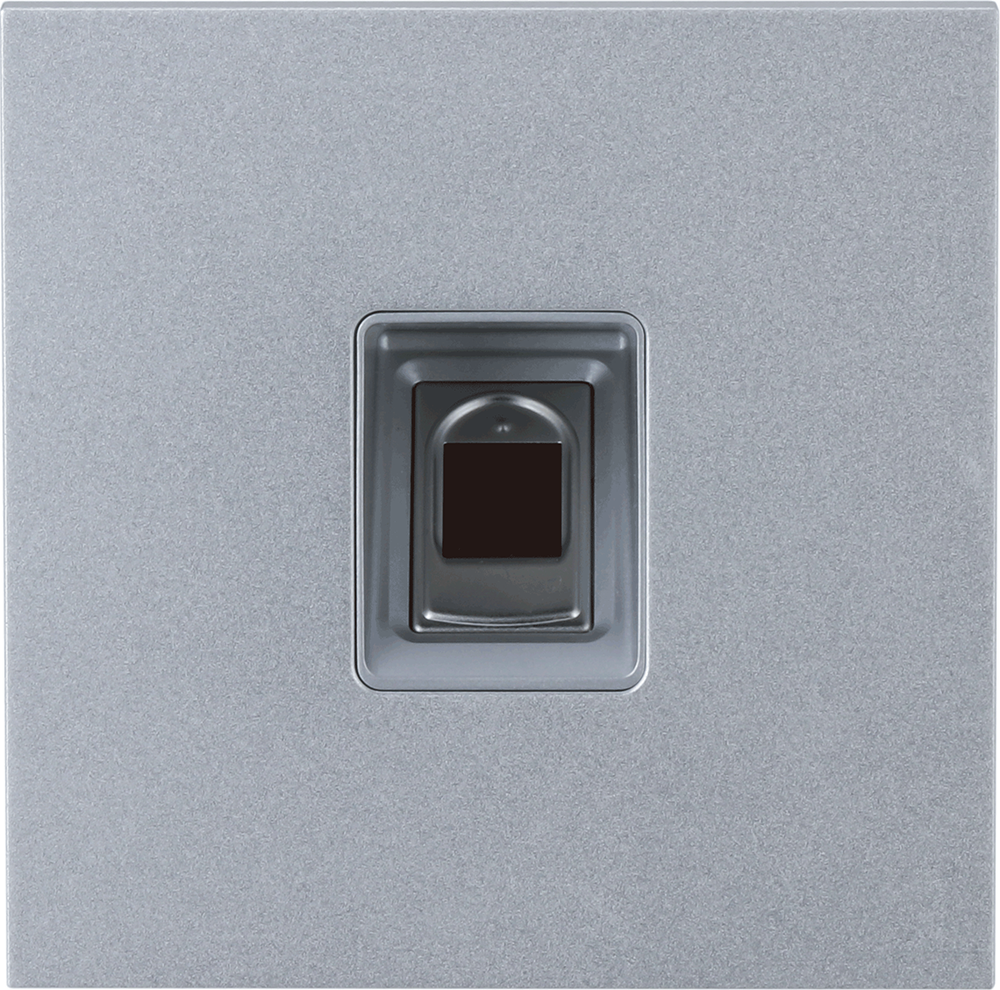

| DHI-VTO4202FMF | Fingerprint Reader |  | Finger Print Module will require ASM202 to register if using with DSS. Power Supply: 5 VDC (Provided with power by other modules) Power Consumption: 1 W Panel Size: Full Operating Temperature: –20°C to +60°C (–4°F to +140°F ) Operating Humidity: 10% to 90%, Relative Ingress Protection: IP65 Vandal Resistance: IK07 Size: Full Panel |

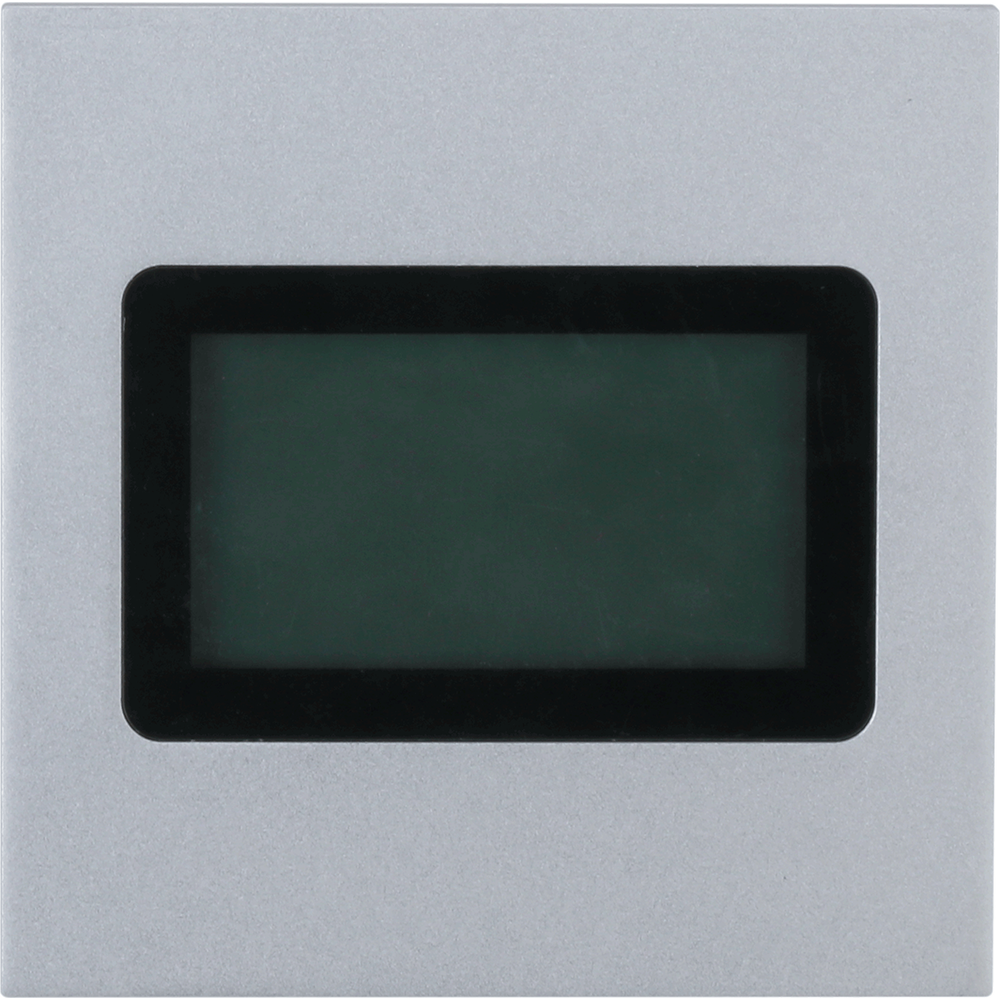

| DHI-VTO4202FMS | Information Text Display |  | Display: 3.0 in. STN Power Supply: 5 VDC (Provided with power by other modules) Power Consumption: 1 W Operating Temperature: –20°C to +60°C (–4°F to +140°F ) Operating Humidity: 10% to 90%, Relative Ingress Protection: IP65 Vandal Resistance: IK07 Size: Full Panel |

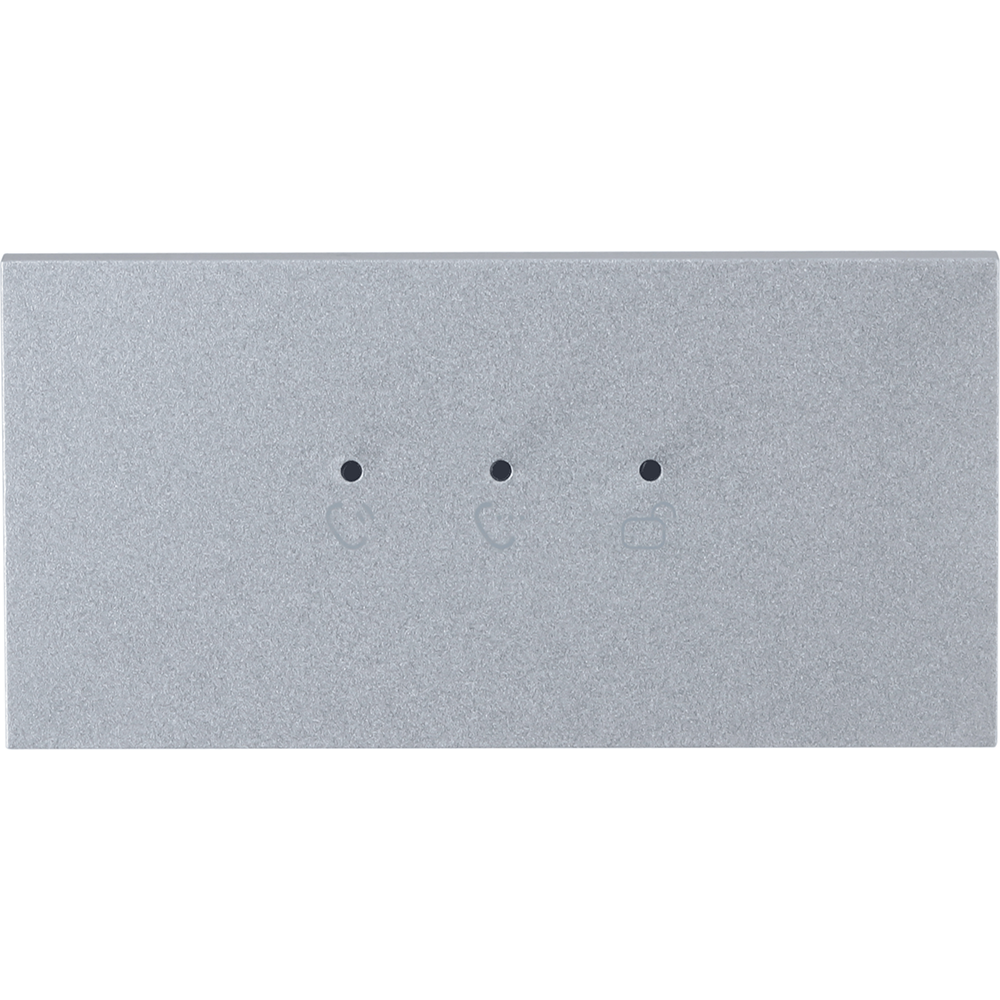

| DHI-VTO4202FML | Status Light Panel |  | Indicator Lights: Incoming Call, Outgoing Call, Unlock Power Supply: 5 VDC (Provided with power by other modules) Power Consumption: 1 W Operating Temperature: –20°C to +60°C (–4°F to +140°F ) Operating Humidity: 10% to 90%, Relative Ingress Protection: IP65 Vandal Resistance: IK07 Size: Half Panel |

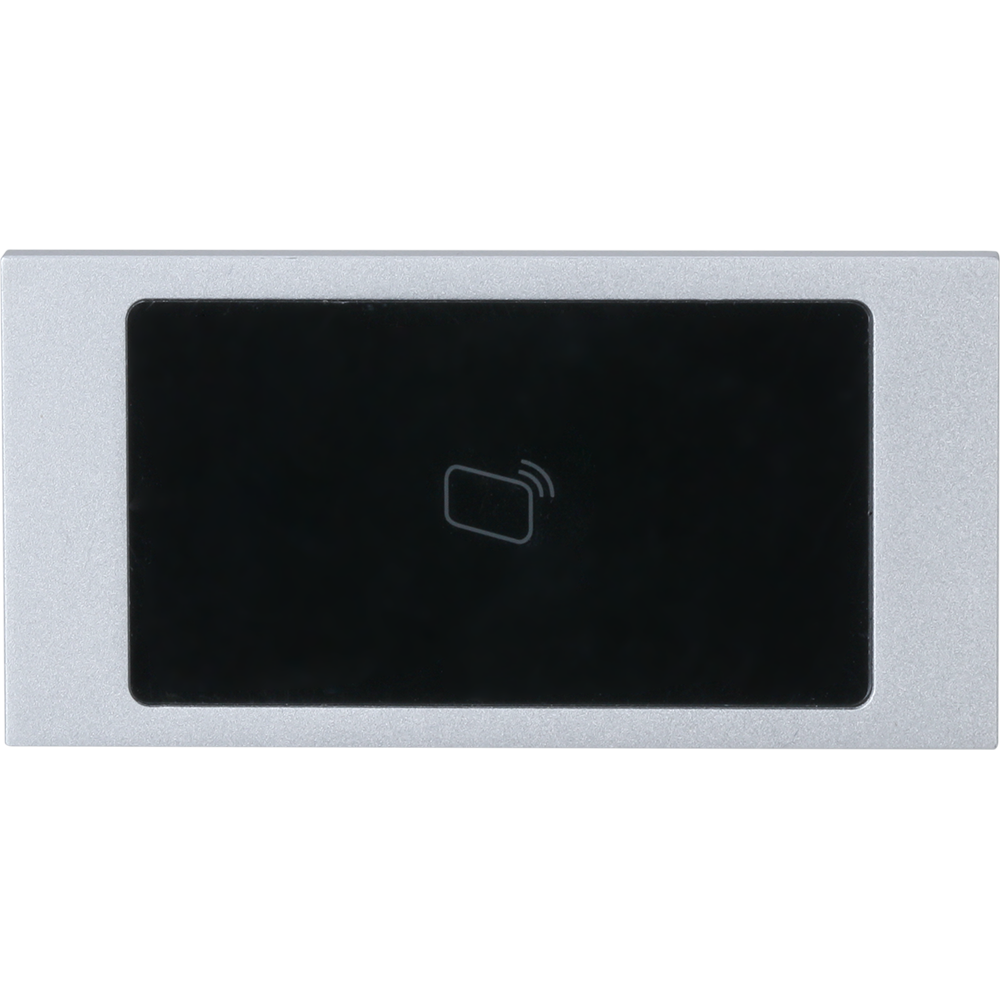

| DHI-VTO4202FMR | IC Card Reader |  | Power Supply: 5 VDC (Provided with power by other modules) Power Consumption: 1 W Operating Temperature: –20°C to +60°C (–4°F to +140°F ) Operating Humidity: 10% to 90%, Relative Ingress Protection: IP65 Vandal Resistance: IK07 Size: Half Panel |

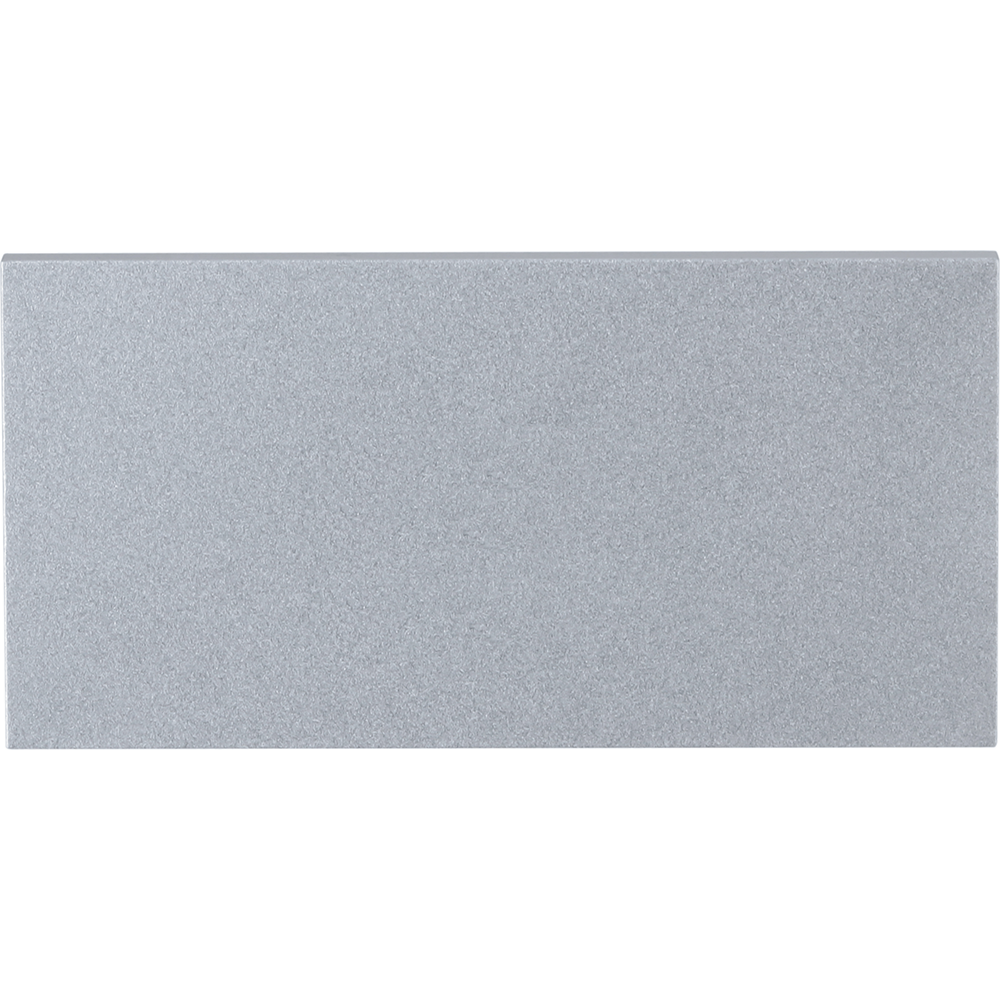

| DHI-VTO4202FMN | Blank Panel |  | Ingress Protection: IP65 Vandal Resistance: IK07 Size: Half Panel |
Mounting Accessories
| Model | Function | Product Image | Specifications | Compatibility |
|---|---|---|---|---|

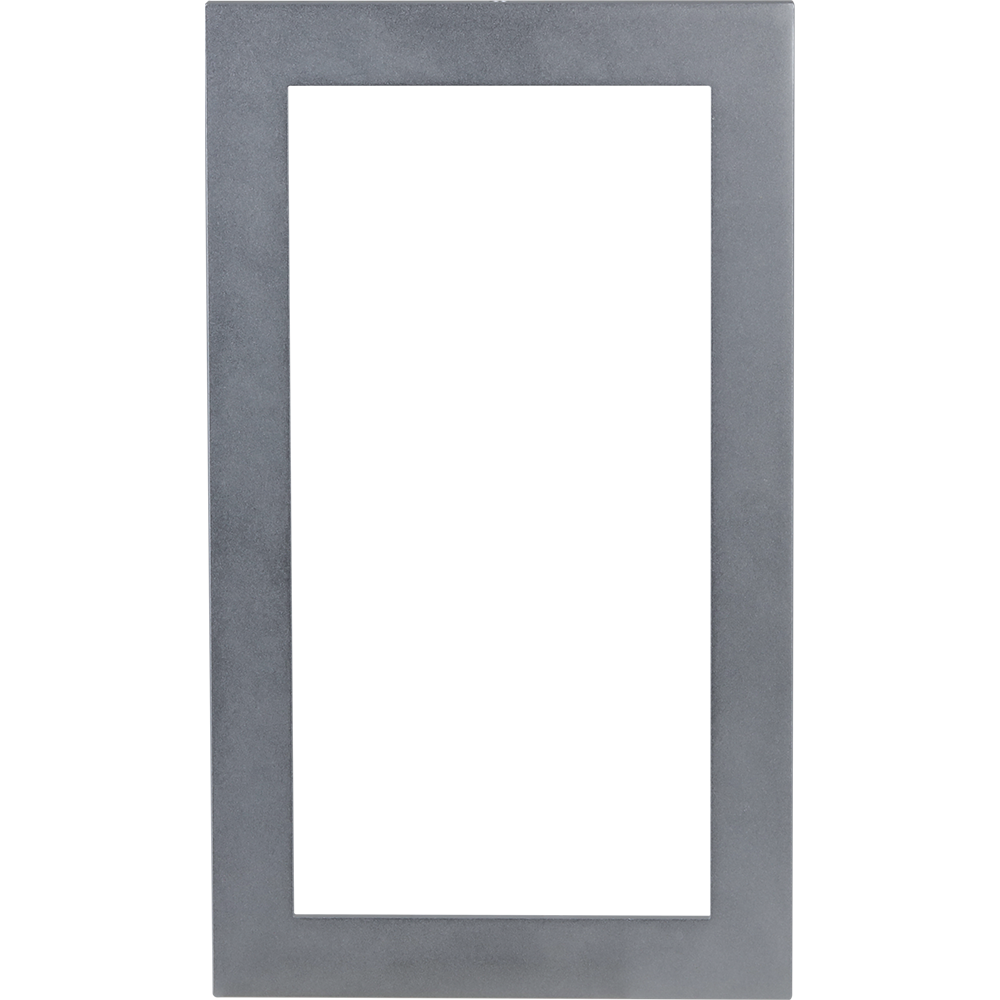

| VTM125 | Intercom Front Panel Bezel (two-module) |  | - DHI-VTO4202F Series Modular Door Station (two-module system) - VTM127 Intercom Flush-mount Box - VTM02R2 Intercom Surface-mount Box | |

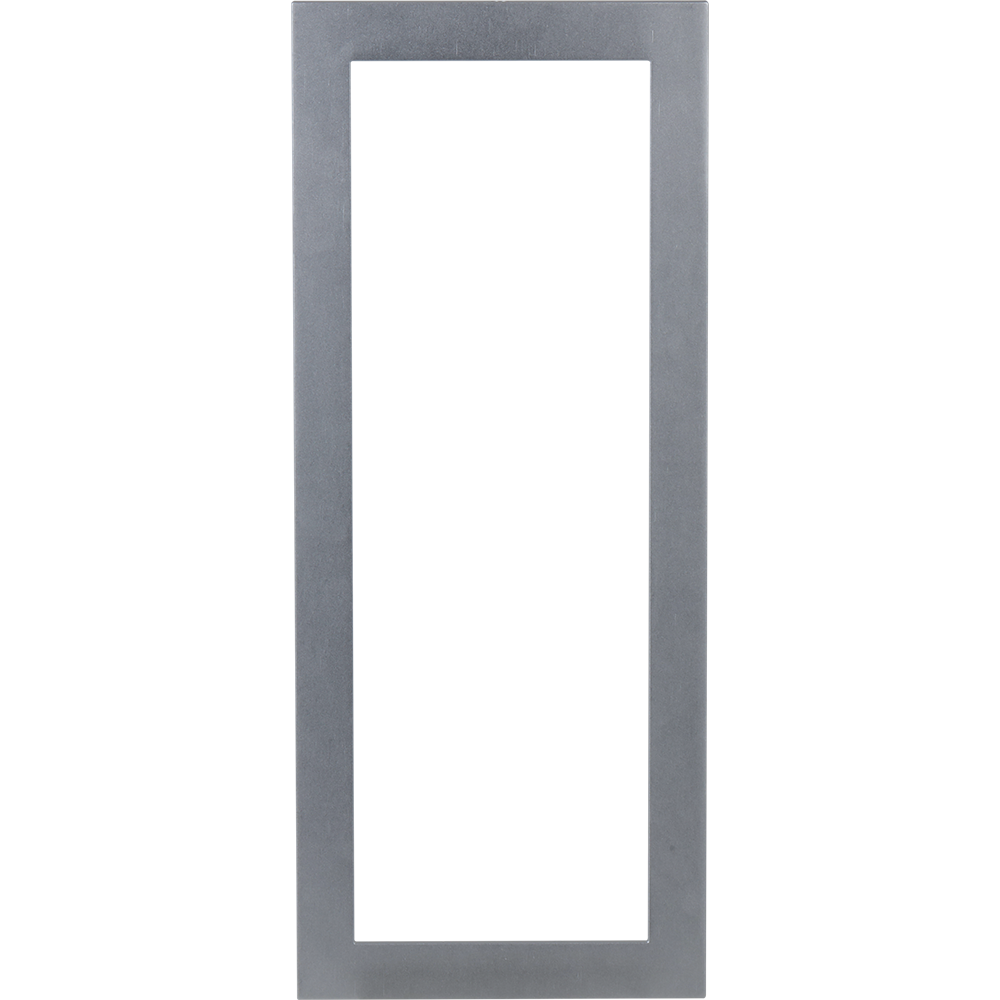

| VTM126 | Intercom Front Panel Bezel (three-module) |  | - DHI-VTO4202F Series Modular Door Station (three-module system) - VTM128 Intercom Flush-mount Box - VTM03R3 Intercom Surface-mount Box | |
| VTM127 | Intercom Flush-mount Box (two-module) |  | - DHI-VTO4202F Series Modular Door Station (two-module system) - VTM125 Intercom Front Panel Bezel | |
| VTM128 | Intercom Flush-mount Box (three-module) |  | - DHI-VTO4202F Series Modular Door Station (three-module system) - VTM126 Intercom Front Panel Bezel | |

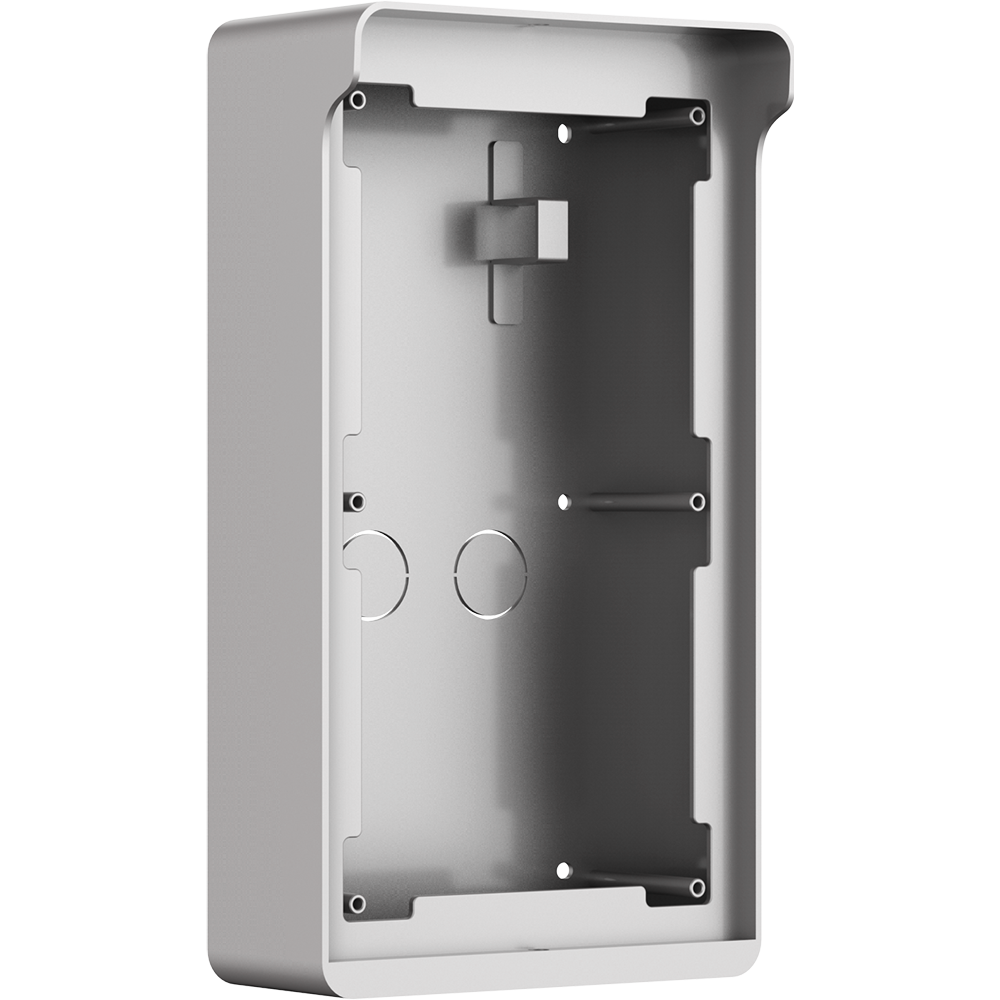

| VTM02R2 | Intercom Surface-mount Box (two-module) |  | - DHI-VTO4202F Series Modular Door Station (two-module system) - VTM125 Intercom Front Panel Bezel | |
| VTM03R3 | Intercom Surface-mount Box (three-module) |  | - DHI-VTO4202F Series Modular Door Station (three-module system) - VTM126 Intercom Front Panel Bezel |
