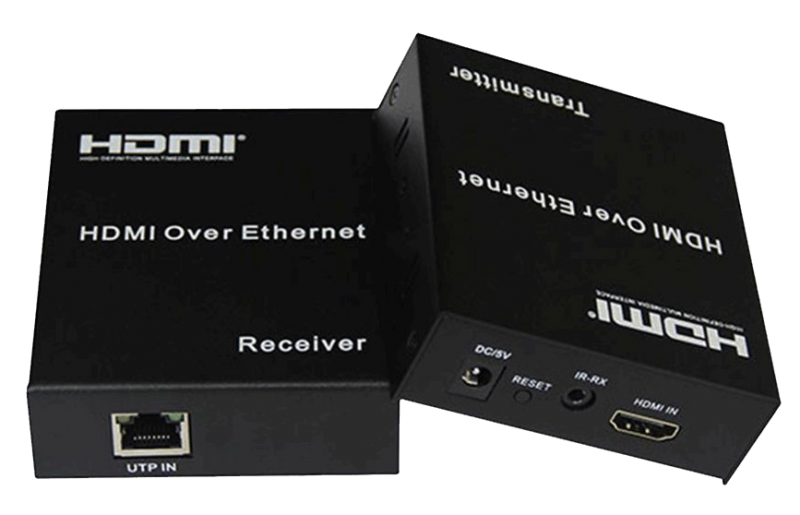

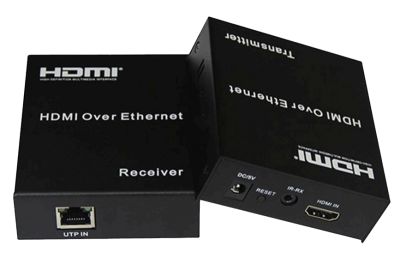

HDMI Extension, Signal is trasmitted through Cat5E / 6E, Up to 200Ft
Features
- Support HDMI 1.4a
- Support 3D
- Supports Bi-directional IR control
- Support highest video resolution 1080p / 60Hz
- Support 1.5Gbps data rate and tmds clock up to 148.5MHz
- Support 8 bit deep color
- Support AWG26 HDMI standard cable, input up to 10 metres, output up to 15 metres
- Signal transmission: By using single cat - 5e or cat - 6 (recommended) cable instead of HDMI cable, it can extend the distance up to 60 meters between TX and RX
- No loss of quality
- Install in minutes
- Need DC 5V / 1A power supply
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
Features
- Support HDMI 1.4a
- Support 3D
- Supports Bi-directional IR control
- Support highest video resolution 1080p / 60Hz
- Support 1.5Gbps data rate and tmds clock up to 148.5MHz
- Support 8 bit deep color
- Support AWG26 HDMI standard cable, input up to 10 metres, output up to 15 metres
- Signal transmission: By using single cat - 5e or cat - 6 (recommended) cable instead of HDMI cable, it can extend the distance up to 60 meters between TX and RX
- No loss of quality
- Install in minutes
- Need DC 5V / 1A power supply
Specifications
- Length of CAT - 6 / CAT - 5E cable between RX and TX: Up to 60 meters
- HDMI Input: 24 / 50 / 60fs / 1080p / 1080i / 720p / 576p / 576i / 480p / 480i
- Support audio: DTS / Dolby / DSD
- HDMI Output: 24 / 50 / 60fs / 1080p / 1080i / 720p / 576p / 576i / 480p / 480i
- Max bandwidth: 148.5MHz
- Max baud rate: 1.5Gbps
- Input video signal: 0.5 - 1.5Volts p - p
- Output DDC signal: 5Volts p - p ( TT1L )
- Input HDMI cable distance: Less than or equal to 10m AWG26 HDMI standard cable
- Output HDMI cable distance: Less than or equal to 15m AWG26 HDMI standard cable
- TX Max working current: 510mA
- RX Max working current: 100mA
- Power adapter format: Input: AC ( 50Hz 60Hz ) 100V - 240V Output: DC5V / 1A
- Operating Humidity range: 5 to 90 percent RH (No Condensation)
