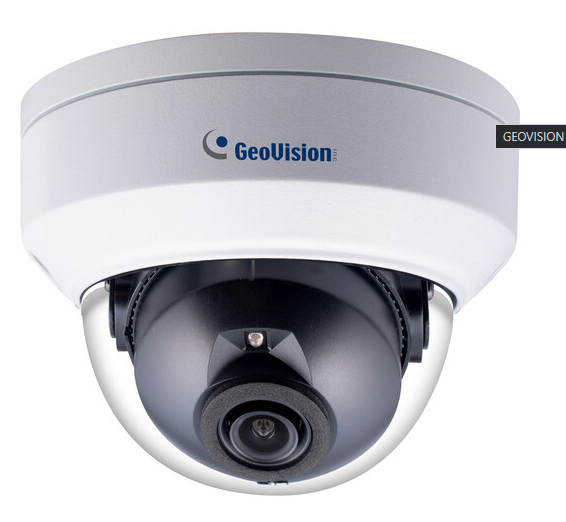

GV-TDR4803-2F | AI 4MP,2.8mm,Super Low Lux,WDR Pro IR Mini Dome,H.265
AI Deep-Learning IP Camera
GV-TDR4803-2F is an outdoor, fixed, network camera equipped with an automatic IR-cut filter and an IR LED for day and night surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. The camera adheres to IP67 and IK10 standards, and can be powered through PoE.
Empowered by deep learning algorithms, AI technology distinguishes human and vehicles from other moving objects. Integrated with GeoVision Video Management Software (VMS), it supports AI perimeter protection, real time alert, events playback and more.
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
Specifications
Camera
Image Sensor - 1/3" progressive scan super low lux CMOS
Picture Elements - 2688 (H) x 1520 (V)
Minimum Illumination
Color - 0.003 Lux (F1.6, AGC ON)
IR ON - 0 Lux
Shutter Speed - Auto / Manual (1 ~ 1/100,000 sec)
White Balance - Auto / Manual
Gain Control - Auto / Manual
S/N Ratio - 56 dB
WDR Pro - Yes
Dynamic Range - Up to 120 dB
Lens
Megapixel - 4MP
Day / Night - Yes (with removable IR‐cut filter)
Lens Type - Fixed
Focal Length - 2.8 mm
Maximum Aperture - F/1.6
Mount - M12
Horizontal FOV - 101°
Operation
Focus - Fixed
Zoom - Fixed
Iris - Fixed
IR LED Quantity - 1 IR LED
Max. IR Distance - 30 m (100 ft)
Operation
Video Compression - H.265, H.264, MJPEG
Video Streaming - Triple streams from H.265, H.264 or MJPEG
Frame Rate - 30 fps at 2688 x 1520, 30 fps at 2560 x 1440, 30 fps at 2304 x 1296, 30 fps at 1920 x 1080 (60 / 50 Hz). * The frame rate and performance may vary depending on the number of connections and data bitrates (different scenes).
Video Analytics - Motion Detection, Tampering Alarm, Audio Detection. *Tampering alarm and audio detection are only accessible through the camera’s Web interface, which can be used to trigger alerts such as e-mail and FTP
Image Setting - Brightness, Contrast, Saturation, Sharpness, Flicker-less, Image Orientation (Flip, Mirror, 90°, 180°)
Audio Compression - G.711
Audio Support - Two-way Audio (external microphone and speaker required)
Digital I/O: Input - 1 Input, dry contact, NO / NC
Digital I/O: Output - 1 Relay Output (1A 30V DC / 0.3A 125V AC)
Face Detection
Environment - 100 lux
Detectable face angle
Tilt (Up/Down) - ≤ 10°
Swing (Left/Right) - ≤ 30°
Max. number of faces - Up to 40
Min. face image pixel requirement - 80 pixels
Deep Learning Function
AI Analytics - Intrusion, Crossing Line, Entering Area, Face Detection, Leaving Area (Human & Vehicle classification), People Flow Counting, Crowd Density Monitoring
Network
Interface - 10/100 Ethernet
Protocol - 802.1x, ARP, DHCP, DDNS, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, NTP, PPPoE, QoS, RTCP, RTP, RTSP, SMTP, SNMP, TCP, UDP, UPnP, ONVIF (Profile G, S, T)
Video Resolution
Main Stream - 2688 x 1520 (Default), 2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 720
Sub Stream - 1280 x 720, 720 x 576, 704 x 288, 640 x 360 (Default), 640 x 480, 352 x 288
Third Stream (Closed by Default) - 720 x 576, 704 x 288, 640 x 360, 352 x 288
Mechanical
Temperature Detector - No
Camera Angle Adjustment
Pan - 3° ~ 360°
Tilt - 0° ~ 68°
Rotate - 3° ~ 360°
Connectors
Power - DC Jack (DC 12 V, 1.25 A), PoE
Ethernet - RJ‐45 connector
Audio - 1 in (Audio In Wire); 1 out (Audio Out Wire). *The Audio In port only support microphones with power supply.
Digital I/O - I/O wires
Local Storage - Micro SD card slot (SD / SDHC / SDXC / UHS‐I, Class 10). *UHS‐II card type is not supported
General
Operating Temperature - ‐30 °C ~ 60 °C (‐22 °F ~ 140 °F)
Humidity - 0% ~ 95% (no condensation)
Power Source - 12V DC / PoE (IEEE 802.3af)
Max. Power Consumption - 4.5 W
Dimensions - Ø 108.7 x 81.1 mm (Ø 4.3” x 3.2”)
Weight - 0.42 kg (0.93 lb)
Ingress Protection - IP67
Vandal Resistance - IK10
Regulatory - FCC, CE, RoHS compliant
Web Interface
Installation Management - Web-based configuration
Maintenance - Firmware upgrade through Web Browser or GV-IP Device Utility (V8.7.2.1)
Access from Web Browser - Live View, Video Recording, Change Video Quality, Bandwidth Control, Image Snapshot, Defog, Text Overlay, Image Masking
Language - Czech, English, French, German, Hungarian, Italian, Japanese, Polish, Portuguese, Russian, Spanish, Traditional Chinese
Applications
Software Supported - GV‐VMS (V17.4.2 / V18.2.1), GV‐DVR / NVR (V8.9.1), GV‐Control Center (V3.8.0), GV‐Recording Server / Video Gateway (V2.0.0), GV‐Edge Recording Manager Win version (V2.0.0), GV‐Redundant / Failover Server (V1.2.0), GV-Mobile Server (V1.5.1)
Smart Device Access - GV-Eye for iOS and Android
Live Viewing - Browser (IE, Edge, Chrome, Firefox, Safari), Mobile App
