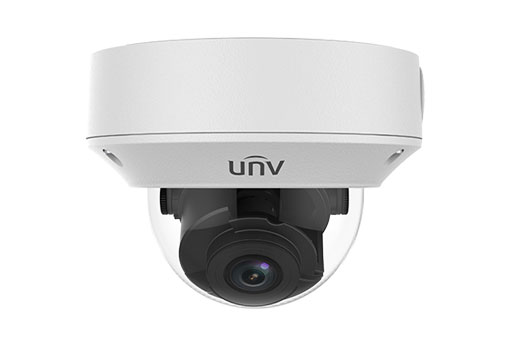

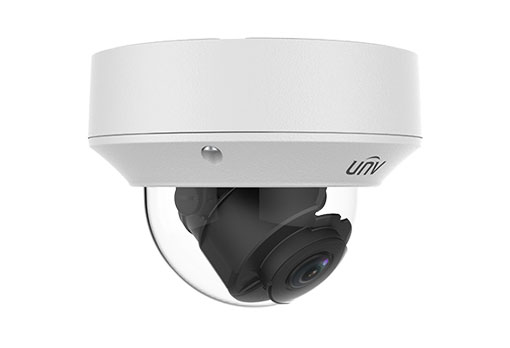

IPC3238SR3-DVPZ | 8MP WDR Vandal-resistant Network IR Fixed Dome Camera SV-DV8-N

Uniview
SKU: UN-IPC3238SR3-DVPZ
  • • 1/2.0",progressive scan,CMOS
    • Up to 3840×2160 resolution,20fps
    • 2.8~12 mm
    • Smart IR, up to 30m IR distance
    • 2D/3D DNR, ROI, 9:16 corridor mode, ONVIF
    • Ultra 265,H.265,ONVIF
    • DC12V,PoE.Wide voltage range of ±25%
    • IP67
    • IK10
    • 33% less
    Market price:$579.00 save $190.01
  • $388.99

OR

The IPC3238SR3-DVPZ | 8MP WDR Vandal-resistant Network IR Fixed Dome Camera SV-DV8-N is a top-of-the-line security camera designed for indoor or outdoor use. With a resolution of 8 megapixels, it provides incredibly sharp and clear video footage that is perfect for monitoring homes, businesses, or public spaces.

This camera is built with vandal-resistant materials, ensuring that it can withstand harsh environments and attempts to tamper with it. The camera's motorized variable focal lens provides flexibility and convenience to change the focus remotely through the camera's software or app. This feature is ideal for applications where the camera is mounted in an area that is difficult to access, such as high ceilings or walls.

The camera also features infrared technology that enables it to capture clear images even in low-light or nighttime conditions. This makes it an ideal choice for outdoor use, where lighting conditions may vary throughout the day. Its advanced wide dynamic range (WDR) technology also ensures that the camera can capture high-quality footage in high-contrast lighting situations, such as areas with bright sunlight or shadows.

Installation and setup of the camera are straightforward, and it can be connected to your network using a standard Ethernet cable. It is compatible with a wide range of video management software systems, allowing you to integrate it with your existing security setup.

Overall, the IPC3238SR3-DVPZ | 8MP WDR Vandal-resistant Network IR Fixed Dome Camera SV-DV8-N is an excellent choice for anyone who needs a reliable and high-quality surveillance camera for indoor or outdoor use in harsh environments.



  • • 1/2.0",progressive scan,CMOS
    • Up to 3840×2160 resolution,20fps
    • 2.8~12 mm
    • Smart IR, up to 30m IR distance
    • 2D/3D DNR, ROI, 9:16 corridor mode, ONVIF
    • Ultra 265,H.265,ONVIF
    • DC12V,PoE.Wide voltage range of ±25%
    • IP67
    • IK10
  WEC3238SR3-DVPZ
Camera
Sensor1/2", 8.0 megapixel, progressive scan, CMOS
Lens2.8 ~ 12mm, AF automatic focusing and motorized zoom lens
DORI DistanceLens (mm)Detect (m)Observe (m)Recognize (m)Identify (m)
2.86325.212.66.3
122701085427
Angle of View (H)114.8° ~ 47.3°
Angle of View (V)75.3° ~ 20.4°
Angle of View (O)141.2° ~ 55.8°
Adjustment anglePan: 0° ~ 360°Tilt: 0° ~ 80°Rotate: 0° ~ 360°
ShutterAuto/Manual, 1 ~ 1/100000s
Min. IlluminationColour: 0.003Lux (F1.5, AGC ON)
0Lux with IR
IR RangeUp to 30m (98ft) IR range
Day/NightIR-cut filter with auto switch (ICR)
S/N>52dB
DefogDigital Defog
WDR120dB
Video
Video CompressionUltra 265, H.264, MJPEG
Frame RateMain Stream: 8MP (3840*2160), Max 20fps; 5MP (2592*1944), Max 30fps; 5MP (2944*1656), Max 30fps;
4MP (2560*1440), Max 30fps; 2MP (1920*1080), Max 30fps;
Sub Stream: 2MP (1920*1080), Max 30fps;
Third Stream: D1 (720*576), Max 30fps
9:16 Corridor ModeSupported
BLCSupported
HLCSupported
OSDUp to 8 OSDs
ROIUp to 8 areas
Privacy MaskUp to 8 areas
Motion DetectionUp to 4 areas
Smart
Behavior DetectionIntrusion, cross line, motion detection
IntrusionEnter and loiter in a pre-defined virtual region
cross lineCross a pre-defined virtual line
motion detectionMoving within a pre-defined virtual region
RecognitionFace detection, Audio detection
Intelligent IdentificationDefocus, Scene Change
Statistical AnalysisPeople counting
General FunctionWatermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio CompressionG.711
Two-way audioSupported
SuppressionSupported
Sampling Rate8KHZ
Storage
Edge StorageMicro SD, up to 256GB
Network StorageANR
Network
ProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
Compatible IntegrationONVIF (Profile S, Profile G, Profile T), API
Interface
Audio I/OAudio cable
Input: impedance 35kΩ; amplitude 2V [p-p]
Output: impedance 600Ω; amplitude 2V [p-p]
Alarm I/O1/1
Network1 RJ45 10M/100M Base-TX Ethernet
Video Output1 BNC, impedance 75Ω; amplitude 1V [p-p]
General
PowerDC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 8W
Dimensions (Ø x H)Φ148 x 111.3mm (Ø5.8” x 4.4”)
Weight0.92kg (2.0lb)
Working Environment-40°C ~ 60°C (-40°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Reset ButtonSupported
Ingress ProtectionIP67
Vandal ResistantIK10

Data Sheet

User manual

WEC3200 Series-Network Fixed Dome Cameras Quick Guide-V1.01

Network Cameras User Manual-V2.08

    • SKU
      UN-IPC3238SR3-DVPZ
    • Weight
      2 lbs
  • Manufacturer
    Uniview
  • Camera Type
    Dome
  • Camera Signal
    IP
  • Camera Resolution
    8 Megapixel
  • Lens Size
    2.8~12mm
  • Optical Zoom
    Motorized Zoom
  • Shipping Lead Time
    Ships Same Day
