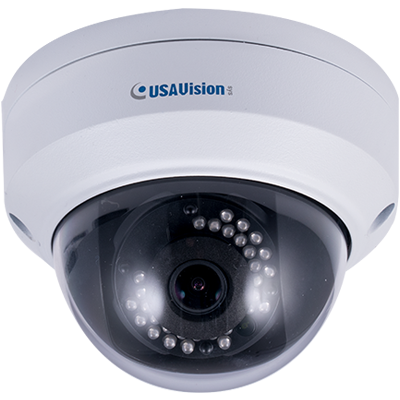

1.3MP H.264 Low Lux WDR Mini Fixed IP Dome
The Mini Fixed Rugged Dome is an outdoor, fixed, network camera equipped with an automatic IR‐cut filter and 30 IR LEDs for day and night surveillance. The camera adheres to IP66 and IK10 standards.
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
The Mini Fixed Rugged Dome is an outdoor, fixed, network camera equipped with an automatic IR‐cut filter and 30 IR LEDs for day and night surveillance. The camera adheres to IP66 and IK10 standards.
PRODUCT FEATURES
- 1/3" progressive scan low lux CMOS sensor
- Min. illumination at 0.02 lux (B/W and color)
- Triple streams from H.264 and MJEPG
- Up to 30 fps at 1280 x 960
- Intelligent IR
- IR distance up to 30 m (98.4 ft)
- Day and Night function (with removable IR-cut filter)
- 3-axis mechanism (pan / tilt / rotate)
- Ingress protection (IP66)
- Wide temperature tolerance (‐35°C ~ 60°C / ‐31°F ~ 140°F)
- Built-in micro SD card slot (SD/SDHC/SDXC/UJS‐I, Class 10) for local storage
- DC 12V / PoE (IEEE 802.3af)
- Wide Dynamic Range (WDR)
- Defog
- 3D noise reduction
- Motion detection
- Text overlay
- Privacy mask
- ONVIF (Profile S) conformant
| SKU | 84-ADR130W-U010 |
|---|---|
| Manufacturer | Geovision |
| Features | Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction, Flickerless, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Camera Signal | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 1.3 Megapixel |
| Lens Type | Fixed |
| Lens Size | 2.8mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, PoE |
| Automatic Gain Control (AGC) | Auto / Manual |
| Dimensions (W x H) | Ø 108.5 x 81 mm (Ø4.28” x 3.2”) |
| Electronic Shutter | Auto / Manual (1/6 ~ 1/8000 sec) |
| Image Device | 1/3" progressive scan low lux CMOS |
| IR LEDs | 30 |
| Minimum Scene Illumination | Color: 0.02 Lux, B/W: 0.02 Lux, IR ON: 0 Lux |
| Operating Humidity | 0% ~ 90% (non‐condensing) |
| Operating Temperature | ‐35°C ~ 60°C (‐31°F ~ 140°F) |
| OSD Menu | English |
| Power Consumption | 5.5 W |
| Protocols | DHCP, DNS, FTP, HTTP, ICMP, IGMP , IPv4, IPv6, NTP, ONVIF (Profile S), QoS, RTP, RTSP, TCP, UDP |
| S/N Ratio | 50 dB |
| Weatherproof | IP66 |
| Digital Noise Reduction | 3D |
| Rotation Angle | 3° ~360° |
| Automatic White Balance | Auto / Manual |
| IR Distance | 30m/98.4ft |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| On Screen Display Menu | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
