UNV NVR301-04LX-P4 4K Network Video Recorder
Support Ultra 265/H.265/H.264 video formats 4-channel input Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols Support 1-ch HDMI, 1-ch VGA HDMI and VGA simultaneous output Up to 4K resolution recording 1 SATA HDD up to 6 TB Support cloud upgrade
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews

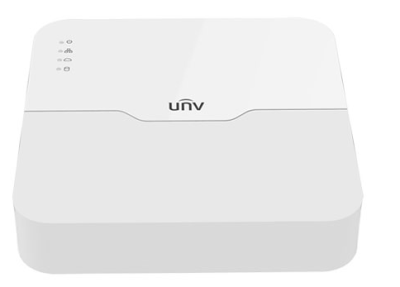

The Uniview NVR301-04LX-P4, which is a 4-channel network video recorder designed for use with IP cameras. The NVR supports Ultra H.265/H.265/H.264 video compression, which can significantly reduce storage requirements while maintaining high-quality video recordings. It also supports up to 4K resolution video recording and display, allowing you to capture and view images in ultra-high definition.
The NVR has 4 PoE ports that support IEEE 802.3af/at, allowing for easy installation and setup of IP cameras without requiring separate power supplies. The NVR also supports the ONVIF protocol, which enables integration with other ONVIF-compliant devices from different manufacturers.
The NVR301-04LX-P4 offers various intelligent video analysis functions, such as intrusion detection, line crossing detection, and face detection, which can be used to trigger alarms and notifications when certain events occur. The NVR also supports real-time video monitoring and playback, making it suitable for use in security and surveillance applications.
Other features of the NVR include two-way audio communication, external backup options via USB or network storage, and remote access via web browser, smartphone app, or PC software. The NVR has a compact design with dimensions of 260mm x 236mm x 48mm and can be powered using a DC 48V power supply.
| Model | NVR301-04LX-P4 |
| Video/Audio Input | |
| IP Video Input | 4-ch |
| Two-way Audio Input | 1-ch, RCA |
| Network | |
| Incoming Bandwidth | 80Mbps |
| Outgoing Bandwidth | 64Mbps |
| Remote Users | 128 |
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP |
| Browser | IE(IE10/11) for Windows Firefox (version 52.0 and above) for Windows Chrome(version 45 and above) for Windows Edge(version 79 and above) for Windows |
| Video/Audio Output | |
| HDMI/VGA Output | HDMI: 3840x2160/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| Recording Resolution | 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Audio Output | 1-ch, RCA |
| Audio Compression | G.711A, G.711U |
| Synchronous Playback | 4-ch |
| Liveview display | 1/4 |
| Corridor Mode Screen | 3/4 |
| Snapshot | |
| FTP/Schedule/Event Snapshot | 4-ch snapshot, up to D1 resolution |
| Decoding | |
| Decoding format | Ultra 265/H.265/H.264 |
| Liveview/Playback | 8MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Capability | 2 x 4k@30, 3 x 5MP@30, 4 x 4MP@30 |
| Hard Disk | |
| SATA | 1 SATA interface |
| Capacity | up to 6TB for each disk |
| Smart | |
| VCA Detection by Camera | Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking |
| VCA Search | Behavior Search |
| People counting | People Flow Counting, Crowd Density Monitoring |
| Smart Intrusion Prevention (SIP) by Camera | 4-ch |
| General Alarm | |
| General Alarm | Motion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection |
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal |

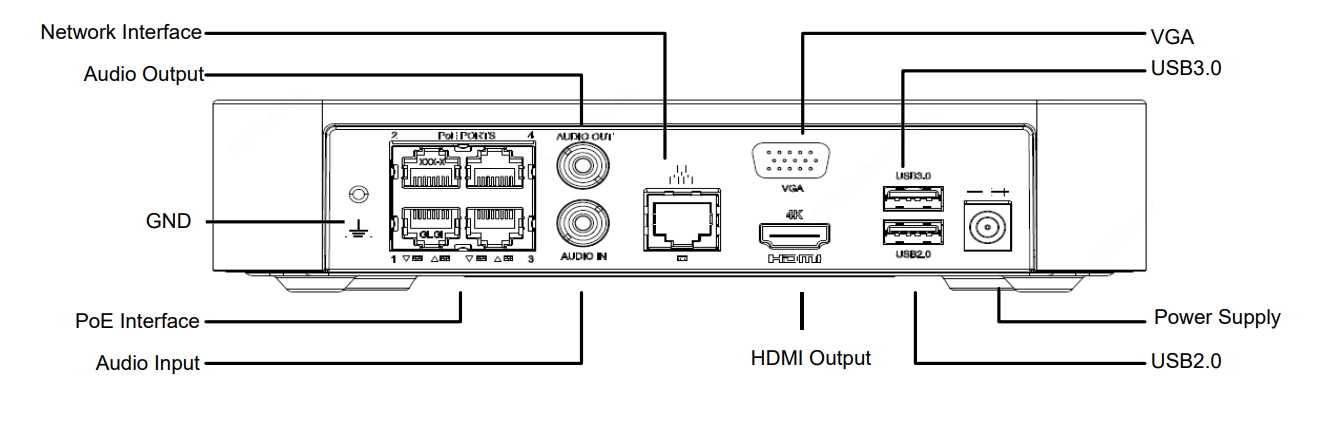

| External Interface | |
| Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface |
| USB Interface | Rear panel: 1 x USB2.0,1 x USB3.0 |
| RS232 | NA |
| RS485 | NA |
| Alarm In | NA |
| Alarm Out | NA |
| PoE | |
| Interface | 4 RJ45 10M/100M self-adaptive Ethernet Interface |
| Max Power | Max 30W for single port Max 54W in total |
| Supported Standard | IEEE 802.3at, IEEE 802.3af |
| General | |
| Power Supply | 48V DC Power Consumption: ≤9 W (without HDD) |
| Working Environment | -10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing) |
| Dimensions (W×D×H) | 205mm × 205mm × 47mm (8.1"×8.1"×1.8 ") |
| Weight (without HDD) | ≤0.6kg (1.32 lb) |
| Certification | |
| Certification | CE, FCC, UL, RoHS, WEEE |
| CE | EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017 |
| FCC | Part15 Subpart B, ANSI C63.4 |
