8 AVTech Security Camera NVR System AVTECH-6CHKIT
This Six Channel Complete IP Camera System Includes the Following:

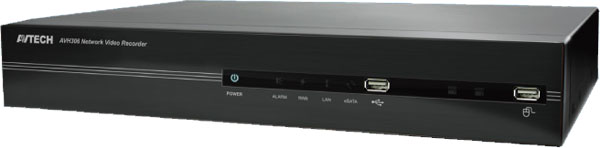

1) AVH306 NVR Recorder that auto-configures six IP cameras in 90 seconds.

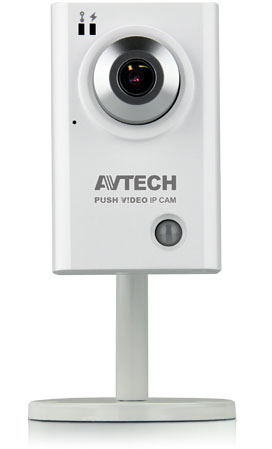

6) AVN301 Push Video Indoor IP Cameras that send live VIDEO Notifications to your iPhone or Android.
1) Six port switch
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
This Six Channel Complete IP Camera System Includes the Following:
1) AVH306 NVR Recorder that auto-configures six IP cameras in 90 seconds.
6) AVN301 Push Video Indoor IP Cameras that send live VIDEO Notifications to your iPhone or Android.
1) Six port switch

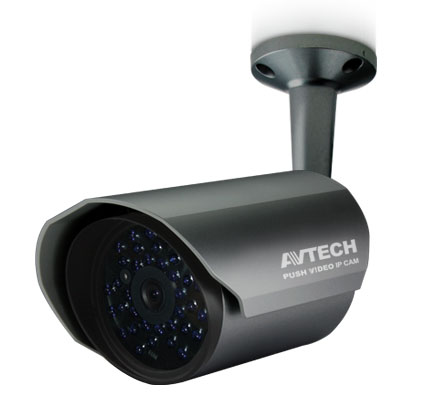

Optionally you may upgrade any of the cameras to:
 |  |  |
| AVN801 | AVN80X | AVN807A |
NVR Features
- Auto IP Configuration: Discovers IP cameras in about 90 seconds!
- 6 channel support.
- 1080P High Definition Output

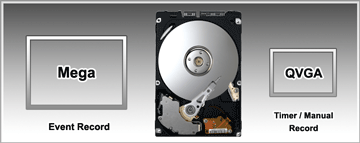

- Dual recording - Records QVGA on timer/manual record, when an event is detected the recording switches to Megapixel resolution for the best quality.
- Full D1 or Megapixel resolution.
- Supports local storage to a hard drive or remote NAS backup.

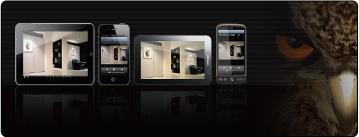

- Full mobile compatibility - Supports iOS (iPhone, iPad) and Android devices.
| >> Key Features << | |

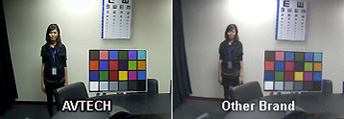

| 1.High Resolution Recordings AVTECH NVR and Megapixel IP camera solution enables you to upgrade your surveillance system easily, which brings you clear images for video recording and playback.
| |

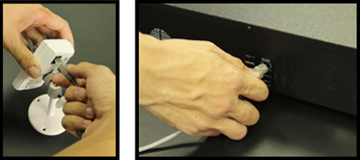

 | 2.Easy Upgrade to IP Surveillance System To help users to upgrade analog signals to digital signals, we have adopted Plug-and-Play technology to simplify the complicated network configurations in three steps. As a result, it is easy to set up as CCTV products.
|
 | 3.HDMI TV Video Out We support 1920*1080 REAL HDMI service, giving the best image quality on LCD / LED monitors. |

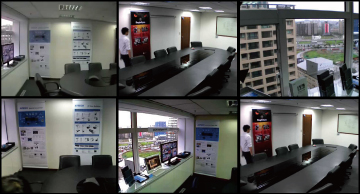

 | 4. Multi-platform Remote Access To access a single IP device, you may use iPhone or Android Mobile devices with “EagleEyes”; To access 4, 9, 16 IP devices all at a time, you may use iPad with “EagleEyes HD-Plus”.
|
 | 5. Smart Recording AVTECH NVR adjusts the video resolution to optimize the recording efficiency of HDD. At normal time, NVR supports QVGA, while an event occurs, it will perform megapixel recording to get the best with picture quality as evidence. |
 | 6. High Compatibility and Offsite Backup AVTECH NVR is going to support nearly every mainstream IP camera in the market in the near future to enhance users’ demands for our NVR. It also serves as a NAS for all kinds of IP cameras and AVTECH NVR on the Internet for offsite backup. |
Specifications:
| Hardware | |
| Video Input | One LAN port Up to 6 Channels with a 6-port hub |
| Video Output | HDMI |
| Video Output Resolution | 1920 x 1080 |
| Audio Input | YES |
| Audio Output | YES (Line Out / HDMI) |
| HDD Storage | Up to two 3TB HDDs |
| USB Ports | Two on the front panel: |
| one for video backup to USB flash drive, andanother for NVR control via a USB mouse | |
| IR Remote Control | YES |
| Ethernet | LAN port : 1000Mbps |
| Internet port : 10Mbps / 100Mbps | |
| Software | |
| Video Compression Format | H.264 / MPEG4 / MJPEG |
| Recording Mode | Manual / Event / Alarm / Schedule |
| Pre-alarm Recording | YES |
| Quick Search | Time / Motion / Alarm |
| Security | Multiple user access levels with password |
| Remote Access | (1) Internet Explorer on Windows operation system |
| (2) EagleEyes on iPhone, iPad & Android mobile devices | |
| General | |
| Power Source (±10%) | DC 19V / 2.1A |
| Operating Temperature | 10 ~ 40 (50 ~104 ) |
| Dimensions (mm) | 375(W) × 55(H) × 264(D) |
| Minimum PC Browsing Requirements | 'Pentium 4 CPU 1.3 GHz or higher, or equivalent AMD |
| '256 MB RAM | |
| 'AGP graphics card, Direct Draw, 32MB RAM | |
| 'Windows 7, Vista & XP, DirectX 9.0 or later | |
| 'Internet Explorer 7.x or later | |
| Supported Peripherals | (1) AVX912 EoC converter |
| (2) AVX913 HDMI Extender | |
| (3) AVX931 Video Server |
CameraFeatures:
- Easy network setup with your iPhone / iPad
- 1.3 Megapixel with HDTV 720p quality, allowing users to notice minor details more easily
- Memory storage built-in for video recording

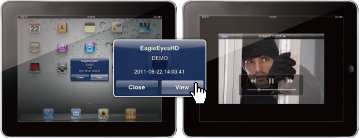

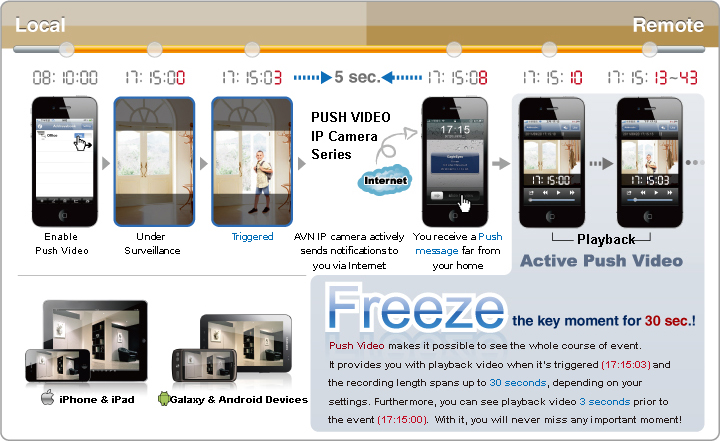

- Push Video support to send an event notification to your iPad, iPhone and Android mobile device immediately once the specified

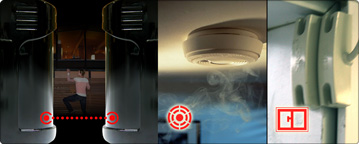

event type is triggered, and play video recording once you confirm the receipt. - External alarm I/O device connection
- Microphone built-in for audio recording
- Remote Surveillance -- Full compatibility on iPhone & iPad, and Internet Explorer® on Windows® operating systemith your iPhone / iPad
Get Event Video Call in5 Seconds. It’s just like having aPrivate Guard!
| ||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||
| Network | |
| Network Compression | H.264 / MPEG4 / MJPEG |
| Multiple Video Streaming(Encode Modes, IPS, Resolution) | 3 (H.264, MJPEG, MPEG4) |
| LAN Port | YES |
| LAN Speed | 10/100 Based-T Ethernet |
| Supported Protocols | DDNS, PPPoE, DHCP, NTP, SNTP, TCP/IP, ICMP, SMTP, FTP, HTTP, RTP, RTSP, UPnP |
| Frame Rate | NTSC:30, PAL:25 |
| Number of Online Users | 10 |
| Security | (1) Multiple user access levels with password |
| (2) IP address filtering | |
| (3) HTTPS | |
| (4) Digest authentication | |
| Remote Access | (1) Internet ExplorerR on WindowsR operating system |
| (2) EagleEyes on iPhone, iPad & Android mobile devices | |
| Camera | |
| Image Sensor | 1/4" SONY CMOS image sensor |
| Video Resolution | SXGA, SXVGA, 720P, VGA, QVGA |

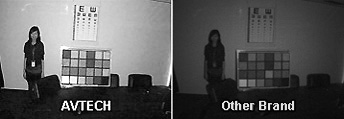

| Min Illumination | 0.1 Lux / F1.5 |
| Shutter Speed | 1 / 2 to 1 / 10,000 sec. |
| S/N Ratio | More than 48dB (AGC off) |
| Lens | f3.8mm / F1.5 |
| Viewing Angle | 62.7° |
| White Balance | ATW |
| AGC | Auto |
| IRIS Mode | AES |
| PIR Sensor | Detection Range 76° wide angle with up to 6m long distance at 2m height (under 30°C) |
| Memory Storage | 10MB (Built-in) |
| External Alarm I/O | YES |
| Microphone | YES |
| Power Source (±10%) | 5V / 1A |
| Operating Temperature | 0~40 |
| Others | |
| Mobile Surveillance | iPad / iPhone / Android mobile device |
| Push Video | YES |
| RTC (real-time clock) | YES |
| Motion Detection | YES |

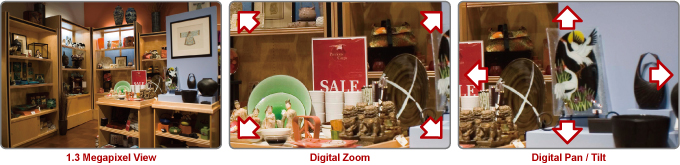

| Digital Pan / Tilt / Zoom | YES |
| Event Notification | FTP / Email / SMS / Push Video |
| Minimum Web Browsing Requirements | 'Pentium 4 CPU 1.3 GHz or higher, or equivalent AMD |
| '256 MB RAM | |
| 'AGP graphics card, Direct Draw, 32MB RAM | |
| 'Windows 7, Vista & XP, DirectX 9.0 or later | |
| 'Internet Explorer 7.x or later | |
- ManufacturerAVTECH
- Hard DriveNone, 500GB, 1TB, 2TB
- Camera 1AVN801, AVN80X, AVN807A
- Camera 2AVN801, AVN80X, AVN807A
- Camera 3AVN801, AVN80X, AVN807A
- Camera 4AVN801, AVN80X, AVN807A
- Camera 5AVN801, AVN80X, AVN807A
- Camera 6AVN801, AVN80X, AVN807A
- Cat5 CablingI'll Use My Own Cables, 1000' Cat5 Spool w/ Connectors
