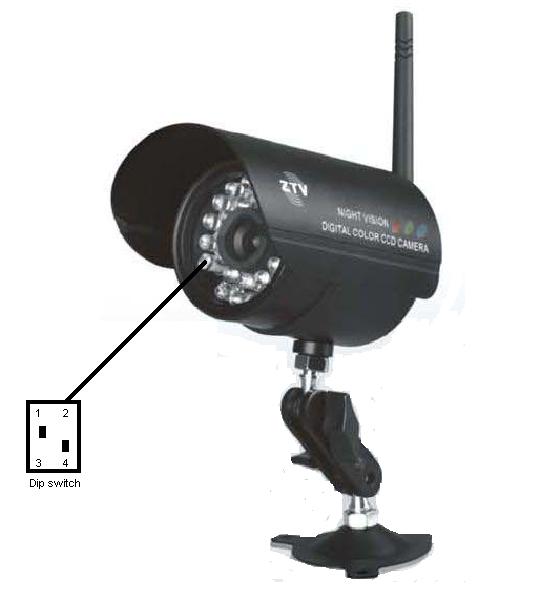

        • Wireless Camera dipswitch diagram for Channel changing
        • *EASY SETUP* Wireless Complete 4 Color Infrared "Wireless" Camera System with DVR and Remote VIew...
        • *EASY SETUP* Wireless Complete 4 Color Infrared "Wireless" Camera System with DVR and Remote VIew...
        • *EASY SETUP* Wireless Complete 4 Color Infrared "Wireless" Camera System with DVR and Remote VIew...

        *EASY SETUP* Wireless Complete 4 Color Infrared "Wireless" Camera System with DVR and Remote VIewing WG4-760 DVR / WEC WEC-24GHZ Analog CCTV Surveillance System

        H264
        SKU: WG4-760-4-WEC-24GHZ-KIT

        The Company offers a complete line of Safety and Security, CCTV, access products. The Model is *EASY SETUP* Wireless Complete 4 Color Infrared "Wireless" Camera System with DVR and Remote Viewing WG4-760 DVR / WEC WEC-24GHZ Analog CCTV Surveillance System. The camera is featured by Wireless connection provides clear audio and video transmission. Range over 300 feet in typical application. Weather-resistant camera is safe for outdoor use. Adding a wireless camera to your home's security plan can provide peace of mind. The Day/Night Wireless Camera & Receiver combines this serenity with ease of use. The weather-resistant wireless camera transmits audio and video to the receiver over a distance of 325 feet without running any video cables, so installation takes only a few minutes. The color camera transmits even in low light, and the 2.4GHz receiver connects directly to a monitor or recording device (sold separately). This 4 Channel Video Package Includes:

        • (1) WG4-760 4 Channel MPEG-4 Value Series Digital Video Recorder
        • (4) WEC WEC-24GHZ Wireless Color Infrared Audio Security Cameras
          • 34% less
          Market price:$1899.00 save $649.01
        • $1249.99

        OR
         The Company offers a complete line of Safety and Security, CCTV, access products. The Model is *EASY SETUP* Wireless Complete 4 Color Infrared "Wireless" Camera System with DVR and Remote Viewing WG4-760 DVR / WEC WEC-24GHZ Analog CCTV Surveillance System. The camera is featured by Wireless connection provides clear audio and video transmission. Range over 300 feet in typical application. Weather-resistant camera is safe for outdoor use. Adding a wireless camera to your home's security plan can provide peace of mind. The Day/Night Wireless Camera & Receiver combines this serenity with ease of use. The weather-resistant wireless camera transmits audio and video to the receiver over a distance of 325 feet without running any video cables, so installation takes only a few minutes. The color camera transmits even in low light, and the 2.4GHz receiver connects directly to a monitor or recording device (sold separately).
         Infrared LEDs aid in the wireless camera's nighttime vision, so you'll be able to see the evening events around your home. You'll appreciate the alloyed shell that provides the camera's weatherproof function for outdoor usage. The WG4-760 can record video from as many as 4 cameras, in addition to 1 channel of audio.  The triplex feature allows simultaneous record, playback, and network functions, ensuring constant surveillance.  Built-in digital motion detection eliminates the need for external motion hardware and sensitivity levels, along with masking areas are fully customizable.  The simple OSD ensures a quick setup and easy user operation. The DVR is featured by MPEG-4 Compression. 4 Video Inputs, 1 Audio Input. Triplex, 120 Frames per Second. Internet Explorer Remote Access. Remote Setup. DDNS Support. RS485 PTZ Support. Video Loop Out. Intuitive On-Screen Menu Programming. Digital Motion Detection. Must be a reseller of this product as the company is a leading global provider of power and transmission technologies for professional security system applications.

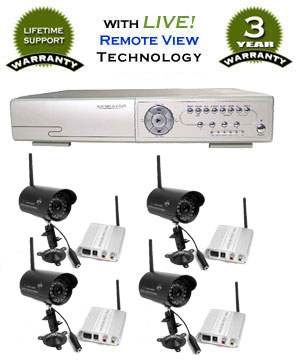

        This 4 Channel Video Package         Includes:
        • (1) WG4-760 4 Channel MPEG-4 Value Series Digital Video Recorder
        • (4) WEC WEC-24GHZ Wireless Color Infrared Audio Security Cameras

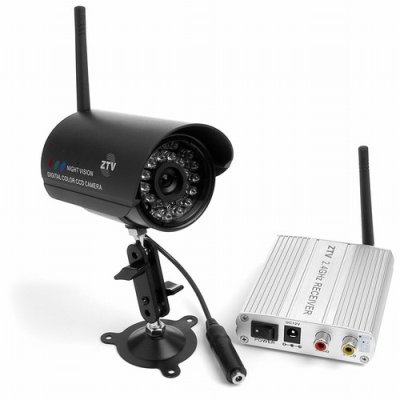

        CAMERA DETAILS:

        • Wireless connection provides clear audio and video transmission
        • Range over 300 feet in typical application
        • Weather-resistant camera is safe for outdoor use
        Adding a wireless camera to your home's security plan can provide peace of mind. The Day/Night Wireless Camera & Receiver combines this serenity with ease of use. The weather-resistant wireless camera transmits audio and video to the receiver over a distance of 325 feet without running any video cables, so installation takes only a few minutes. The color camera transmits even in low light, and the 2.4GHz receiver connects directly to a monitor or recording device (sold separately).
        Infrared LEDs aid in the wireless camera's nighttime vision, so you'll be able to see the evening events around your home. You'll appreciate the alloyed shell that provides the camera's weatherproof function for outdoor usage.

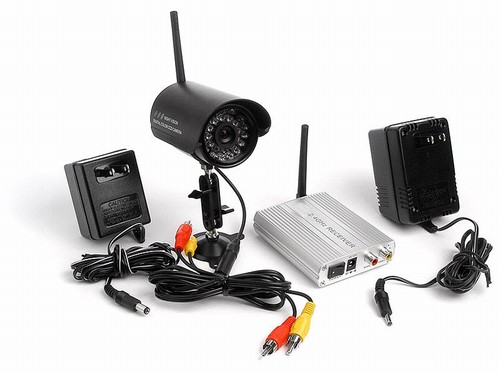

        What's Included

        • Camera
        • Receiver
        • AV cable
        • 2 power adapters
        • 2 antennas
        • Mounting materials
        • Bracket
        • Instructions

        Camera Specifications:

        Dimensions:5" x 4" x 2 7/16"
        Imaging Sensor:1/4-inch CCD
        CCD Total Pixels:NTSC: 512 (H) x 492 (V)
        Horizontal Resolution:420 TV lines
        View Angle:39¡Æ
        Minimum Illumination:1.0 Lux/F2.0 & 0 Lux (IR on)
        Gain Control:Automatic
        Channel Frequency:2,468 MHz
        Transmission Power:10 mW/CE; 2 mW/FCC
        Modulation Type:FM
        Bandwidth:18 MHz
        Power Supply:12 V DC
        Consumption Current:120 mA; 270 mA IR on
        Unobstructed Effective Range:100 minutes
        LED Continuous Working Life:6000 hours
        Night Vision Range:49 feet (15m)

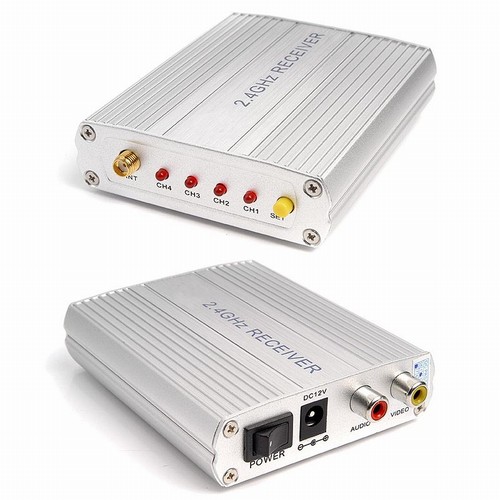

        Receiver Specifications:

        Dimensions:3 1/16" x 3 1/2" x 7/8"
        Weight:7.05 oz. (200g)
        Receiving Frequency:2,400~2483 MHz
        Intermediate Frequency:480 MHz
        Frequency Stabilization:+/-100 KHz
        Demodulation Type:FM
        Antenna:50 ohm SMA
        Local Leakage at Input Terminal:<-55 dBm
        Receiving Sensitivity:<-85 dBm
        Video Output:1 Vp-p@75 ohms, S/N>38dB
        Audio Output:1 Vp-p@600 ohms
        Power Supply:12 V DC
        Consumption Current:250 mA

        [Click here for Specification PDF]

        [Click here for More Details]

        [Click here to view our Lens Chart]
        DVR DETAILS:
        4 Camera Inputs, 1 Channel Audio, MPEG-4, Triplex, 120 FPS

        The WG4-760 digital video recorder is a versatile and intuitive entry level recorder featuring simple setup and MPEG-4 compression.

        The WG4-760 can record video from as many as 4 cameras, in addition to 1 channel of audio.  The triplex feature allows simultaneous record, playback, and network functions, ensuring constant surveillance.  Built-in digital motion detection eliminates the need for external motion hardware and sensitivity levels, along with masking areas are fully customizable.  The simple OSD ensures a quick setup and easy user operation.

        Complete video backup can be performed via the network client software.  In addition to video backup, the client software provides off-site PC recording.

        Remote viewing, setup, and playback on the WG4-760 are available via Internet Explorer or the client software included with the unit.  Video can easily be converted to the standard .AVI format for backup and review in standard media players.

        The WG4-760 also features advanced remote network options including true DDNS for dynamic IPs and email alerts.

        A 160GB hard drive generally allows continuous recording of up to 2 weeks under the most common recording conditions.  However, recording time will vary depending on quality and recording rate.  When all available hard drive space is consumed, the WG4-760 automatically begins recording over the oldest video.

        The WG4-760 provides for more than a simple VCR replacement.  It features above standard specifications with simple setup, simple operation and reliability.
        PRODUCT FEATURES
        • MPEG-4 Compression
        • 4 Video Inputs, 1 Audio Input
        • Triplex
        • 120 Frames per Second
        • Internet Explorer Remote Access
        • Remote Setup
        • DDNS Support
        • RS485 PTZ Support
        • Video Loop Out
        • Intuitive On-Screen Menu Programming
        • Digital Motion Detection

        WG4-760 4 Channel MPEG-4 Value Series Digital Video Recorder

        Demo Site:

        Username: admin
         Password: admin

        DVR SPECIFICATIONS
        GENERALENVIRONMENTAL
        Video Inputs4 inputs, 1.0Vp-p, 75 ohm unbalancedOperating Temperature50 to 104 degrees F (10 to 40 degrees C)
        Video Outputs4 Video Loop OutsPHYSICAL
        1 Main MonitorDimensions343(W) x 59(H) x 223(D) mm
        1 Call MonitorMECHANICAL
        Audio Inputs1 audio inputCamera InputsBNC female
        Audio Outputs1 audio outputCamera OutputsBNC female
        Horizontal Resolution720 x 480 (NTSC)Monitor OutputBNC female
        Display1, 4Audio InputRCA female
        ZoomLive 2x ZoomAudio OutputRCA female
        SequenceAvailableAlarm InputsDB-25 female
        Screen QualityFull: 720 x 480 Active Pixels (NTSC)Alarm OutputsDB-25 female
        1/4 Screen: 360 x 240 Active Pixels (NTSC)RS232/RS48515PIN DSUB
        Record QualityCIF





        Display Rate120 frame/second (4x30)
        Recording Rate (Max)120, 60, 30, 15
        Record QualityBest, High, Normal, Low
        Compression TypeMPEG-4
        Record ModeNormal, Schedule, Motion Detect, Alarm
        Playback ModeDate/Time Search or Event Search
        Operation ModeTriplex
        Motion DetectArea Division: 16 x 12, on/off selectable
        Motion Detect and Relay On Simultaneous
        Motion Sensitivity4 adjustable variables
        Pre-Alarm RecordingYes (8MB)
        WatermarkYes
        Key LockYes
        Network SupportTCP/IP, PPPoE, DHCP, DDNS
        Network FunctionInternet Explorer, Remote Client Software
        Web CompressionMJPEG
        Remote NotificationEmail images
        Alarm4 Alarm Inputs / 1 Relay Output
        Back-upNetwork
        RS485PTZ (Pelco D)
        StorageInternal 1 HDD (no size limitation)

        Worldeyecam[Click here for detailed Specification PDF]

        Worldeyecam[Click here for PDF Product Manual]

        Existing wireless equipment may cause interference or static pictures with our wireless systems.

          • SKU
            WG4-760-4-WEC-24GHZ-KIT
          • Weight
            45 lbs
        • Manufacturer
          H264, Ruijie
        • RUIJIE
          Yes
        • Keywords
          SA-DVR-WG4-760-4-WEC-24GHZ-KIT, WG4-760-4 / WEC WEC-24GHZ Analog CCTV Surveillance System, surveillance system, video surveillance software, nanny cam, dome camera, pc surveillance, security surveillance, lcd cctv monitor, audio surveillance equipment, vi
        • Description
          The SA-DVR-WG4-760-4-WEC-24GHZ-KIT includes a WG4-760 4 Channel MPEG-4 Value Series Digital Video Recorder, 4 WEC WEC-24GHZ Wireless Color Infrared Audio Security Cameras.
        • Monitor Output
          Standard Video Output, VGA Output for Monitor
        • Upgrade to WSTA-CDRW
          NO CDRW, Upgrade to WSTA-CDRW
        • Optional Monitor
          I will use my own Monitor, 17 inch LCD Viewsonic Monitor
        • Storage Space
          250GB (Included), 500GB
        • Extended Warranty
          1 Year Warranty Included, 2 Year Extended Warranty, 3 Year Extended Warranty
